Hiwin WEH21CA Linear Guideway Block
New
In stock12 unitsReady to ship
163,13$
LINEAR GUIDEWAY BLOCK
Hiwin WEH21CA square-type linear block with 21 mm size, top-mount design, and four-row wide rail structure, engineered for heavy-duty load handling and precision motion systems.21BlockGuideGuidewayHeavyHiwinLinearLoadmmMotionMountingPrecisionrailSeriesSquareSystemTopTypeWEWEH21CA
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

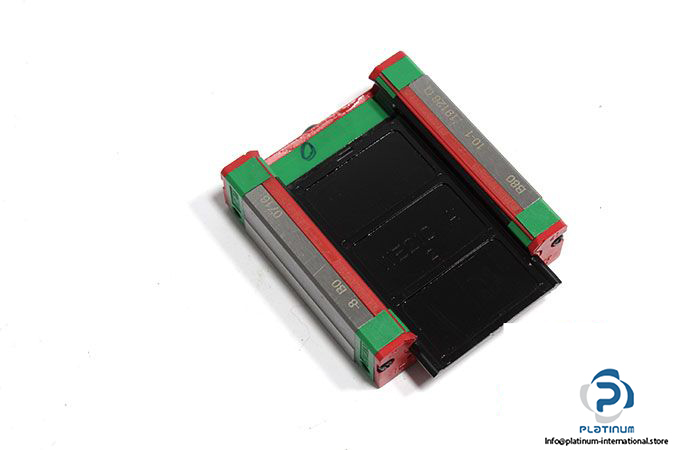

HIWIN WEH21CA LINEAR GUIDEWAY BLOCK
The Hiwin WEH21CA linear guideway block belongs to the WE Series, designed with a four-row wide rail structure to support high loads and maintain precision alignment. This square-type block (Type H) offers mounting from the top (Type A) and is engineered for demanding motion applications where both dynamic and static load capacity are critical.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: WEH21CA

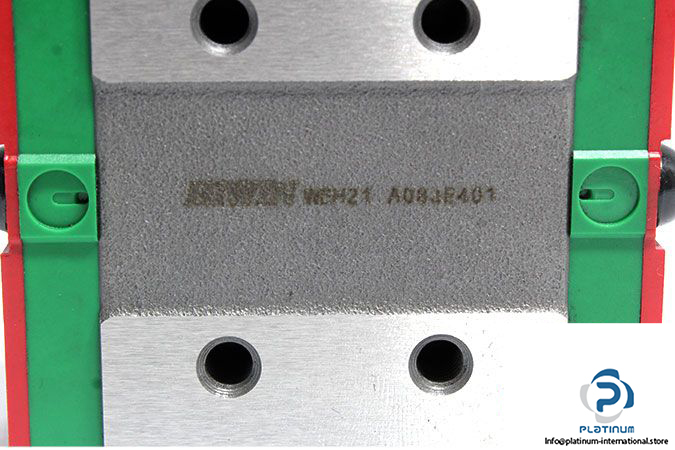

MRN: WEH21 A08JE401
| Size | 21 mm |
| Total Height (H) | 21 mm |
| Block Width (W) | 54 mm |
| Block Length (L) | 59 mm |
| Block Height | 18 mm |
| Distance Between Holes | 31 mm, 19 mm |
| Basic Load Rating - Dynamic (Cr) | 7.2 kN |
| Basic Load Rating - Static (C‚r) | 13.7 kN |
| Series | WE Series; Four-Row Wide Rail Linear Guideway |
| Block Type | H; Square Type |
| Load Type | C; Heavy Load |
| Block Mounting | A; Mounting from Top |
