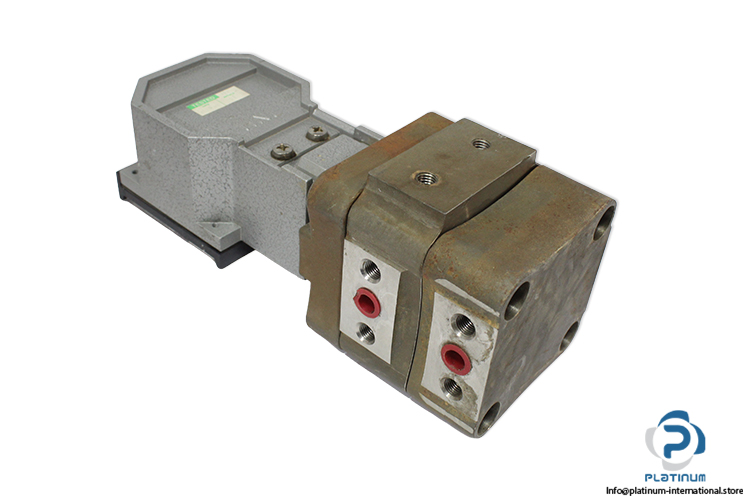

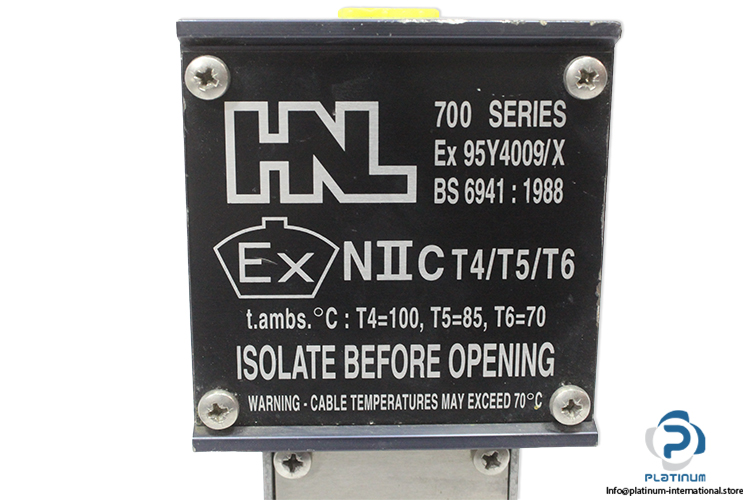

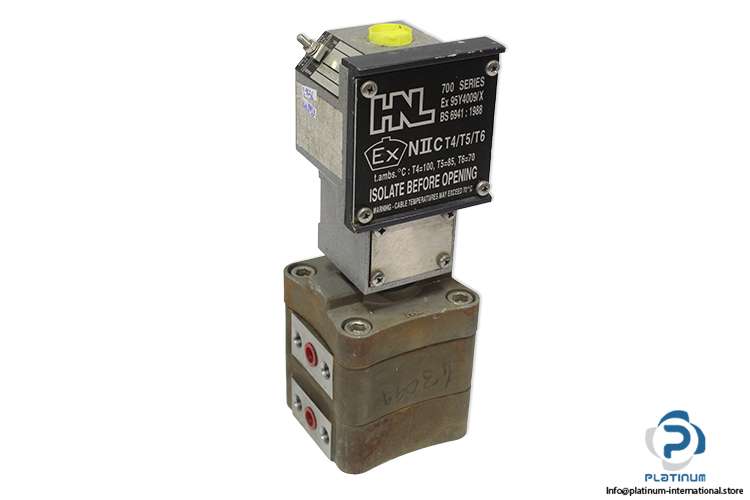

HNL 736DPM 3141 17 7503 Pressure Switch
Used
In stock1 unitReady to ship
Differential Pressure Switch High-precision HNL differential pressure switch from the 700 series with SPDT output, 0.1 to 1 bar measuring range, and 300 bar proof pressure, designed for industrial process control and monitoring applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

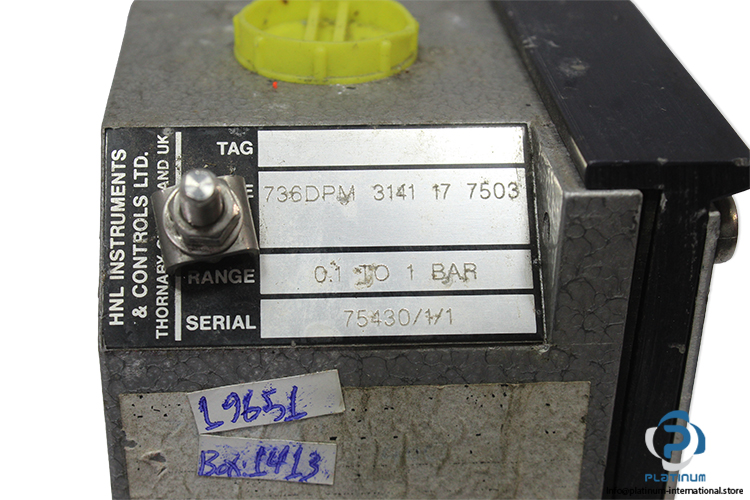

| Serial No. | 75430/1/1 |
| Series | 700 |
| Differential Pressure Measuring Range | 0.1 to 1 bar |
| Proof Pressure | 300 bar |
| Switch Output | SPDT |
| Switch Output Ratings | 250 V AC, 4 A / 28 V DC, 2 A |
| Process Connection | G1/4 NPT |
| Temperature Class T4 | 100 °C |
| Temperature Class T5 | 85 °C |
| Temperature Class T6 | 70 °C |
| Dimensions | 288 x 104 x 114 mm |
| Stock Key | JO-004 |
| Condition | Used |
| SKU | 1102407 |
| Weight | 8,53 |
