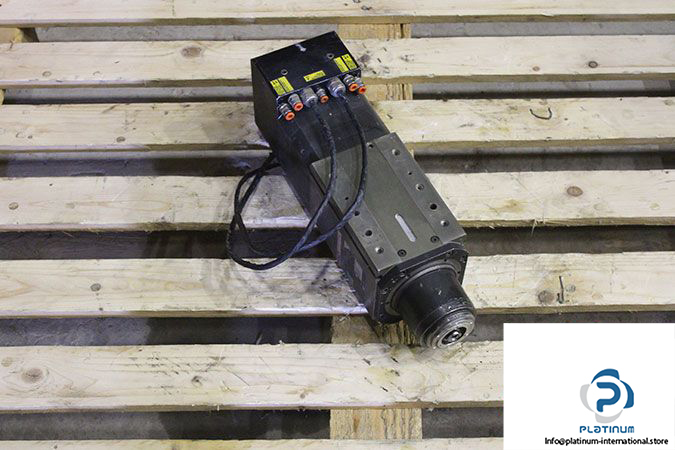

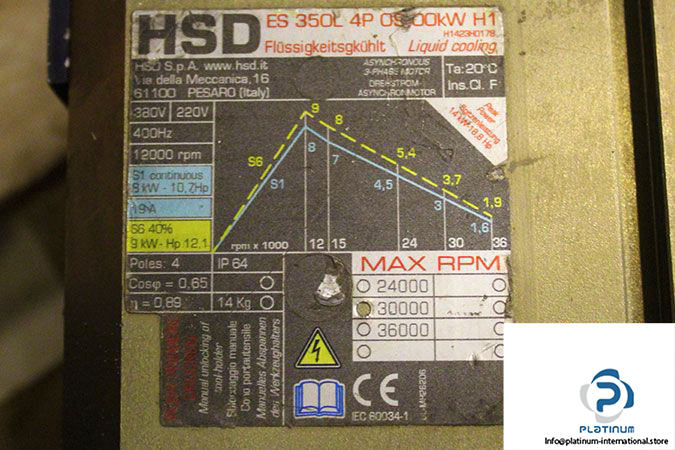

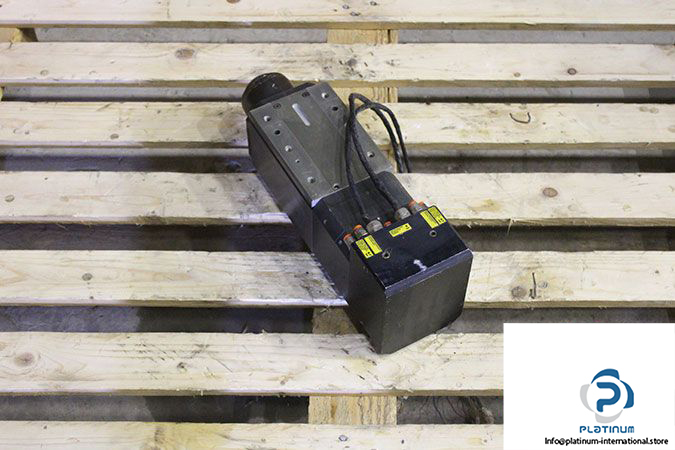

HSD ES 350L 4P 09,00KW H1 Asynchronous 3-PHASE Motor

Manufacturer: HSD

Type: Asynchronous 3-Phase Motor

Model: ES350L4P09,00kWH1

Rated Voltage [V]: 380/220

Rated Frequency [Hz]: 400

Rated Speed [rpm]: 12000

Type of Cooling: Liquid Cooling

Rated Power [kW]: 8/9

Rated Torque [Nm]: 6.4/7.2

Rated Current [A]: 19/20.7

Duty: S1 Cont./ S6 40%

Rated Efficiency [η]: 0.89

Power Factor [cos φ]: 0.8

Number of Poles: 4

Insulation Class: F

Protection Class [IP]: 54

Weight [kg]: 15.7
