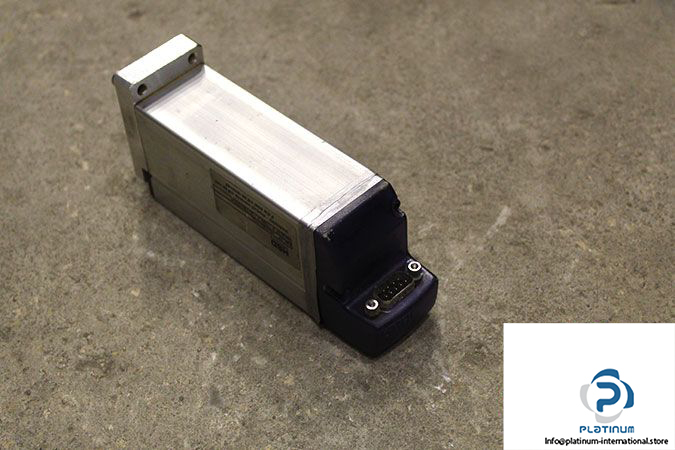

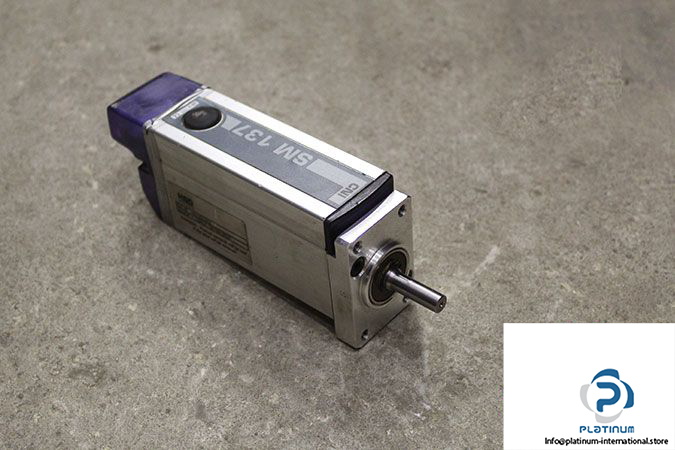

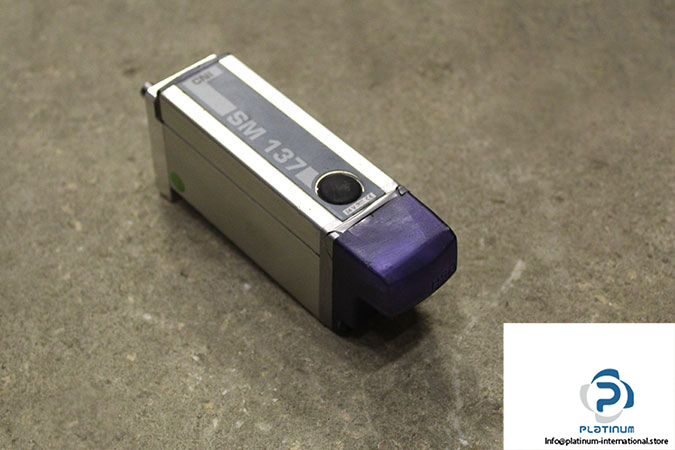

HSD SM 137 CNI Synchronous Servo Motor

Manufacturer: HSD

Type: Synchronous Servo Motor

Model: SM137CNI

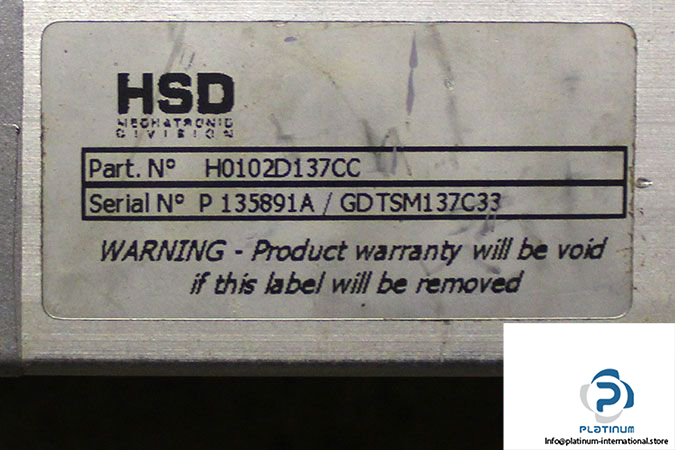

Part.N: H0102D137CC

Ratio: 8

Power Supply Voltage: 24 VDC

Max. Power: 430 W

Rated Current: 5.8 A

Max. Current: 11.3 A

Rated Speed: 4000 rpm

Max. Speed: 5000 rpm

Rated Torque: 0.25 Nm

Shaft Diameter: 8 mm

Number of Stages: 1

Number of Poles: 8

Efficiency: 95 %

Thermal Class: F

Protection Class: IP54

Weight: 0.96 kg
