Hubner Berlin POG 10 DN 512 I Incremental Encoder
Used
In stock2 unitsReady to ship
Incremental Encoder
Heavy-duty HUBNER BERLIN incremental encoder with optical sensing, HTL output, 512 pulses per revolution, and IP66 protection, supplied with FSL centrifugal switch for industrial feedback applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

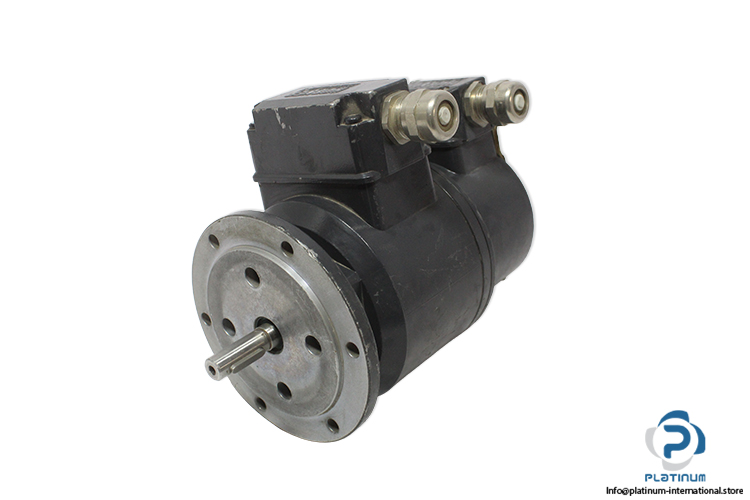

HUBNER BERLIN POG 10 DN 512 I Incremental Encoder
The HUBNER BERLIN POG 10 DN 512 I incremental encoder is a heavy-duty industrial feedback device designed for precise speed and position monitoring. Built with robust materials and optical sensing technology, it ensures accurate signal output and reliable performance in harsh industrial environments.

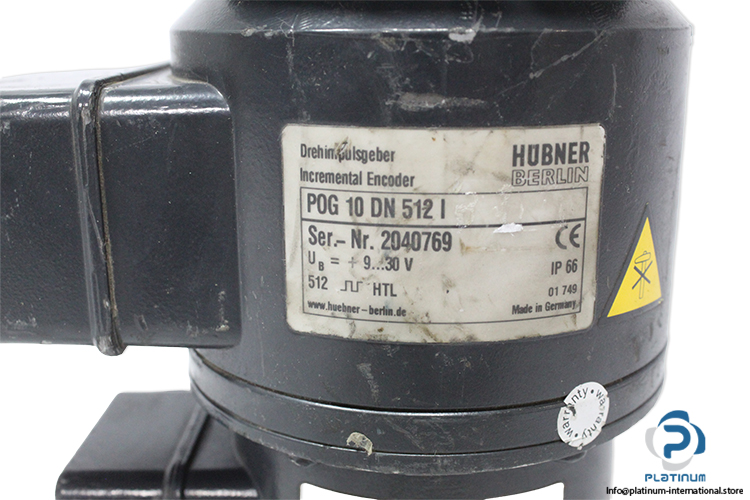

Manufacturer: HUBNER BERLIN
Type: Incremental Encoder
Model: POG 10 DN 512 I
Serial No.: 2040769
Series: POG 10
Attachment

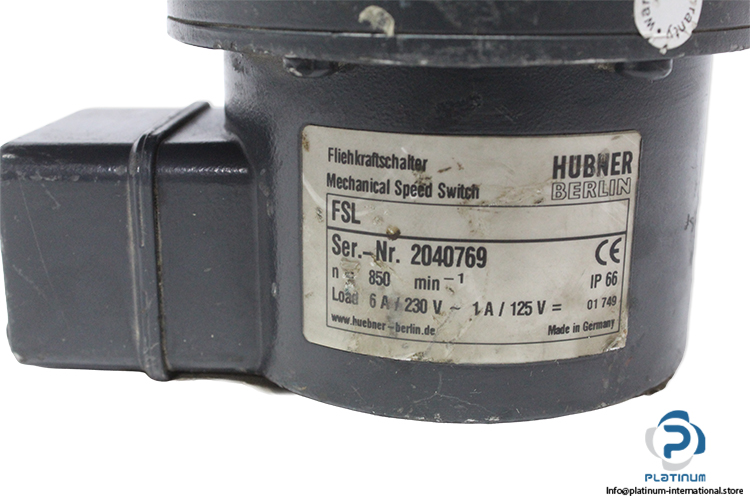

HUBNER FSL Centrifugal Switch
| Power Supply | 9 / 30 V DC |
| Consumption Current | 100 mA |
| Principle of Operation | Incremental |
| Shaft Type | Solid Shaft |
| Flange | EURO Flange B10 |
| Sensing Method | Optical |
| Output Stage | HTL |
| Output Frequency | ‰¤ 120 kHz |
| Pulses Per Revolution | 512 |
| Operating Speed | 850 min»¹ |
| Shaft Diameter | 11 mm |
| Flange Diameter | 115 mm |
| Protection Class | IP66 |
| Material | Housing: Aluminum Die-Cast, Shaft: Stainless Steel |
| Connection | Terminal Box |
| Operating Temperature | -40 / 100 °C |
| Serial No. | 2040769 |
| Load | 6 A / 230 VAC, 1 A / 125 V DC |
| Speed | 850 min»¹ |
| Protection Class | IP66 |
