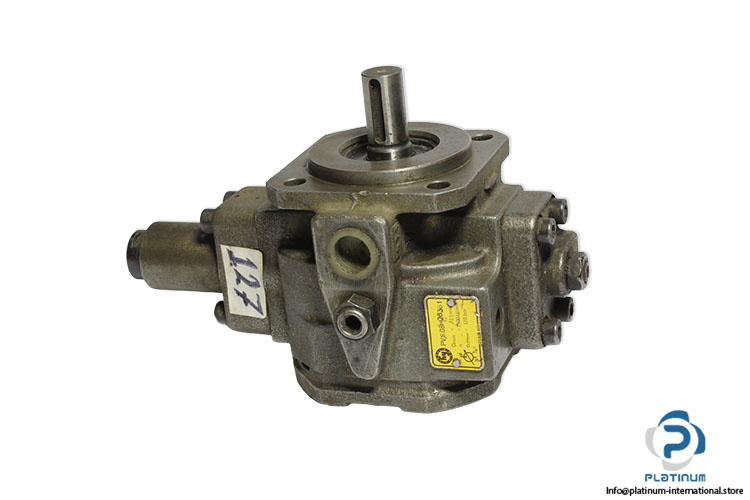

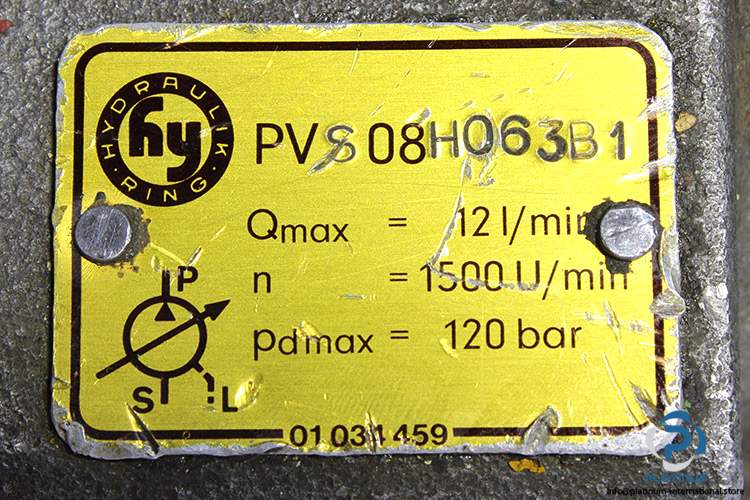

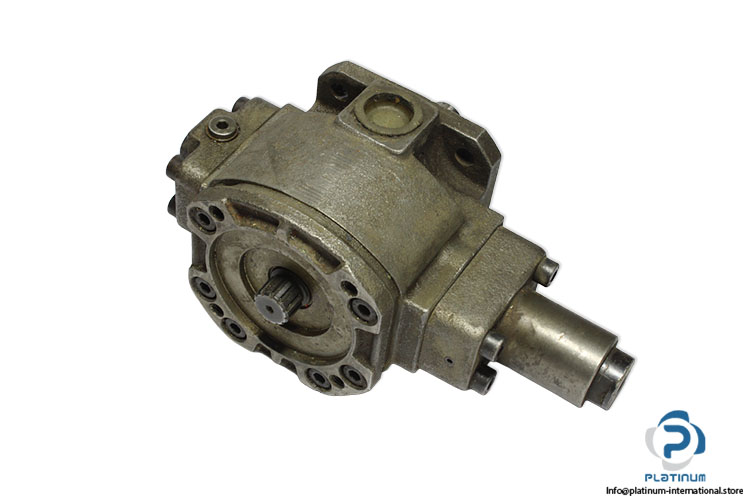

Hydraulik Ring PVS 08H063B1 Vane Pump
Used
In stock1 unitReady to ship
Hydraulic Vane Pump The Parker Hydraulik Ring PVS 08H063B1 is a hydraulic vane pump with 8.3 cm³/rev displacement and 12 L/min flow, designed for reliable industrial hydraulic applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Code | 01 031 459 |
| Series | PVS |
| Fluid | oil |
| size | 8 |
| Control options | Servo pressure compensator |
| Displacement | 8.3 cm3/rev |
| Direction of Rotation | Clockwise |
| Shaft Diameter | 20 mm |
| Output flow at 1500 rpm | 12 l/min |
| Maximum Flow Rate , Main Pump | 12 L/min |
| Speed | 1500 rpm |
| Ambient-temperature range | –10 … 70 °C |
| Max Pressure | 120 [bar] |
| Inlet Pressure min. | 1.0 [bar] |
| absolute Drain port | max. 0.5 [bar] |
| Viscosity range | 22 - 100[mm²/s] |
| Stock key | CON-003 |
| Condition | Used |
| SKU | 1100288 |
| Weight | 8,45 |
