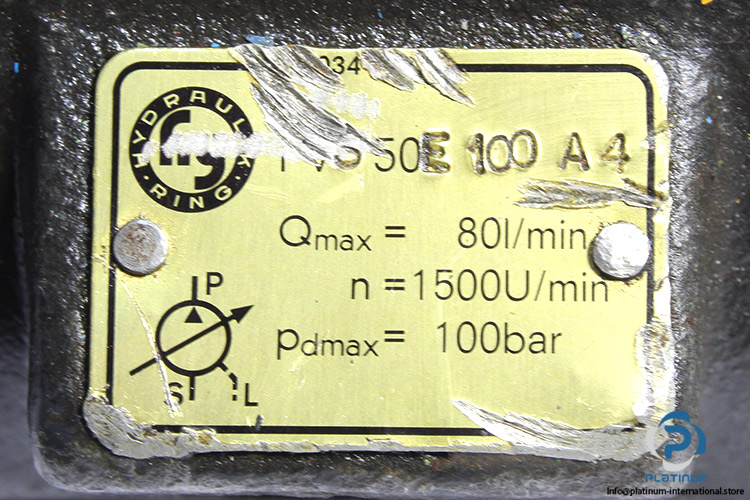

HYDRAULIK RING PVS 50E 100 A4 VANE PUMP with pressure control
Used
In stock1 unitReady to ship

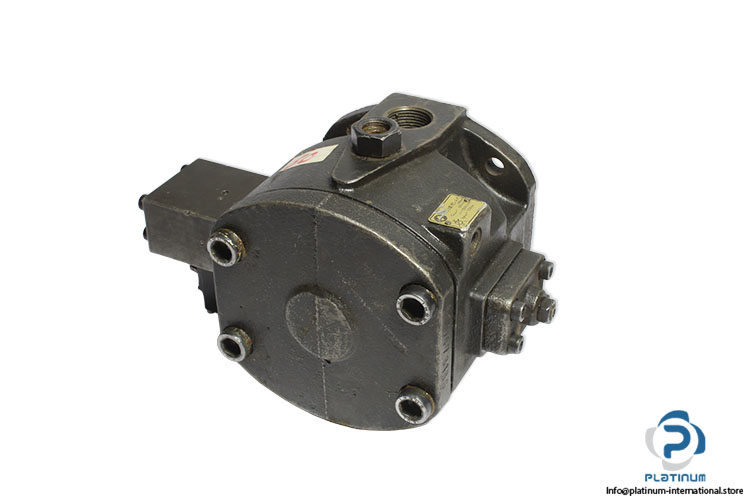

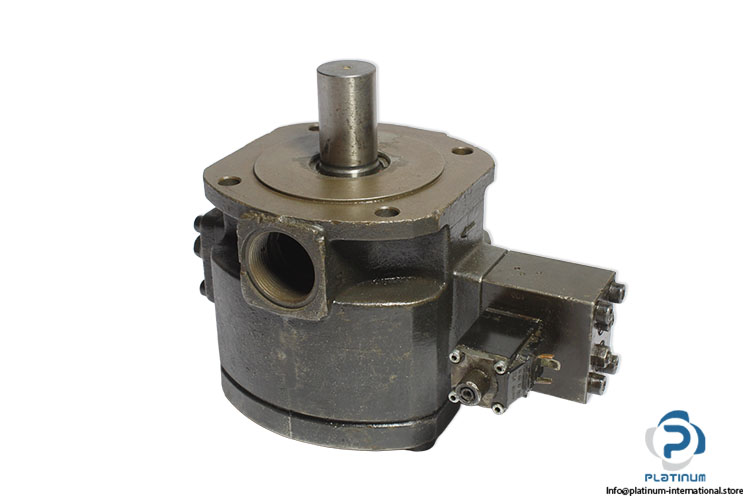

Hydraulic Vane Pump The Parker Hydraulik Ring PVS50E100A4 is a PVS series hydraulic vane pump with 51.5 cm³/rev displacement, designed for reliable oil-based industrial hydraulic systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Series | PVS |
| Fluid | oil |
| size | 50 |
| Control options | Servo pressure compensator |
| Displacement | 51.5 cm3/rev |
| Direction of Rotation | Clockwise |
| Shaft Diameter | 38 mm |
| Output flow at 1500 rpm | 75 l/min |
| Max flow | 80 l/min |
| Speed | 1500 rpm |
| Ambient-temperature range | –10 … 70 °C |
| Max Pressure | 100 [bar] |
| Inlet Pressure min. | 1.0 [bar] |
| absolute Drain port | max. 0.5 [bar] |
| Viscosity range | 22 - 100[mm²/s] |
| Stock key | CON-003 |
| Condition | Used |
| SKU | 1100270 |
| Weight | 30,1 |
