Hydronorma Z1S6P2-31/V Check Valve With Pressure Switch
New
In stock1 unitReady to ship
89,99$
Check Valve with Pressure Switch
The HYDRONORMA Z1S6P2-31/V Check Valve with 660501 Pressure Switch offers high-pressure resistance up to 350 bar, FKM sealing, and precise monitoring for reliable hydraulic system control.350660501barbrassCheckComponentsconnectionFKMHydraulicHydraulicshydronormaIndustrialPressureSealsub-plateSwitchValveZ1S6P2-31/V
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

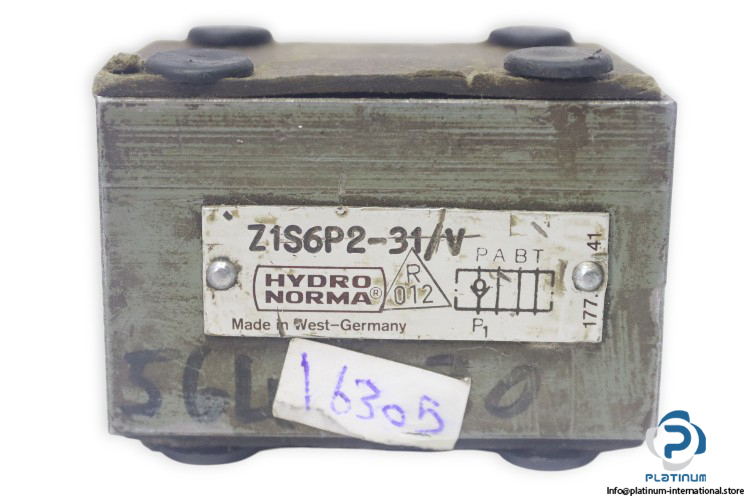

HYDRONORMA Z1S6P2-31/V Check Valve with 660501 Pressure Switch
The HYDRONORMA Z1S6P2-31/V Check Valve provides reliable control of hydraulic flow and pressure, ensuring safe and efficient system operation. Supplied with the 660501 Pressure Switch, this assembly delivers dependable performance in industrial hydraulic applications.
Manufacturer: HYDRONORMA
Type: Check Valve
Model: Z1S6P2-31/V
Ref No.: 177 41

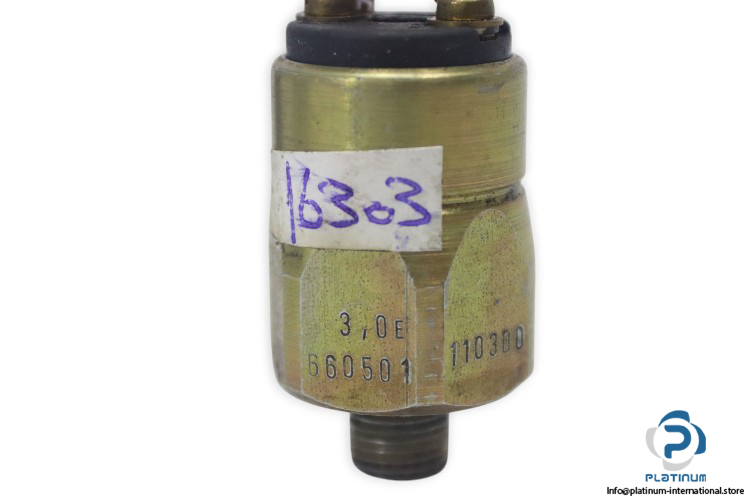

Attached Pressure Switch
| Size | 6 |
| Ambient Temperature Range | “20 / +80 °C |
| Maximum Operating Pressure | 350 bar |
| Maximum Flow Rate | 40 l/min |
| Hydraulic Fluid Temperature Range | “20 / +80 °C |
| Viscosity Range | 2.8 / 500 mm²/s |
| Connection | Sub-plate |
| Seals | FKM |
| Ref No. | 110300 |
| Body Material | Brass |
| Connection Thread | G1/8 |
