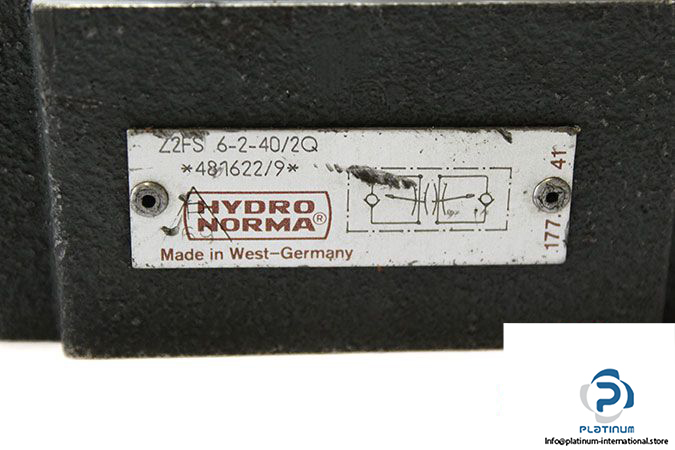

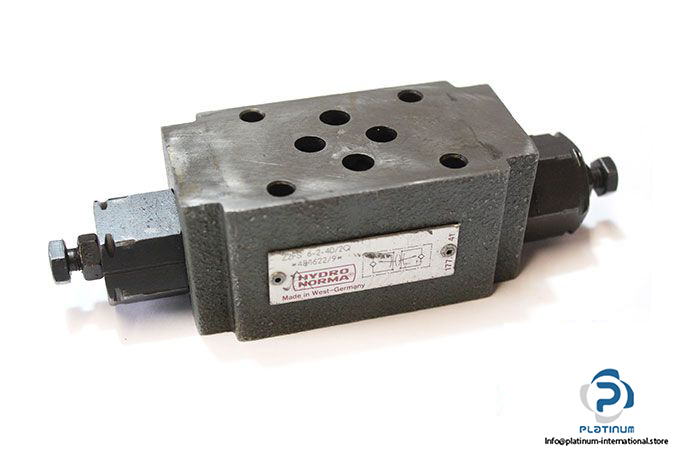

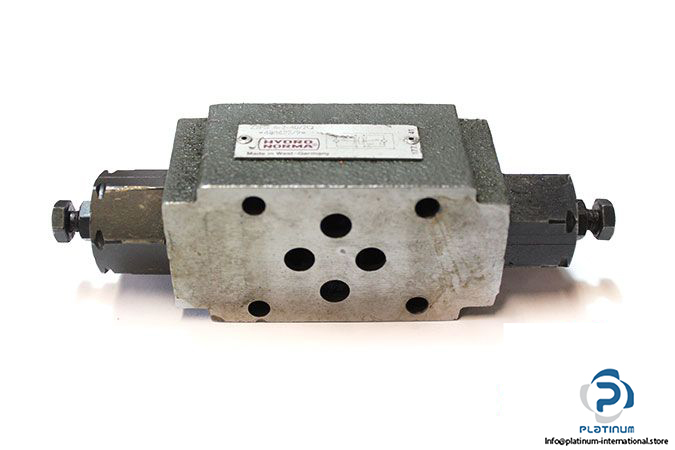

Hydronorma Z2FS 6-2-40/2Q Double Throttle Check Valve

Manufacturer: HYDRONORMA

Type: Double Throttle Check Valve

Model: Z2FS 6-2-40/2Q

Nominal Size: 6

Adjustment Element: Screw with Locknut and Protective Cap

Ambient Temperature Range: –20 …. +80 °C

Max. Working Pressure: 315 bar

Max. Flow Rate: 80 L/min

Fluid Temperature Range: –20 …. +80 °C

Viscosity Range:10…800 mm²/s

Hydraulic Connection: Sub-plate

Weight: 0.95 kg
