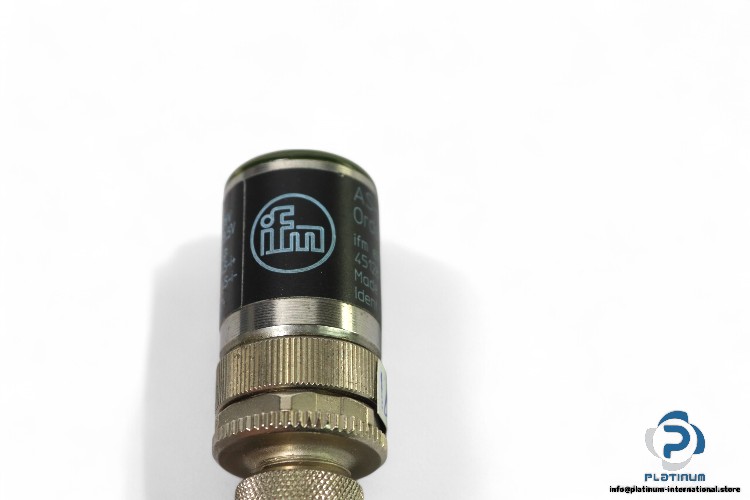

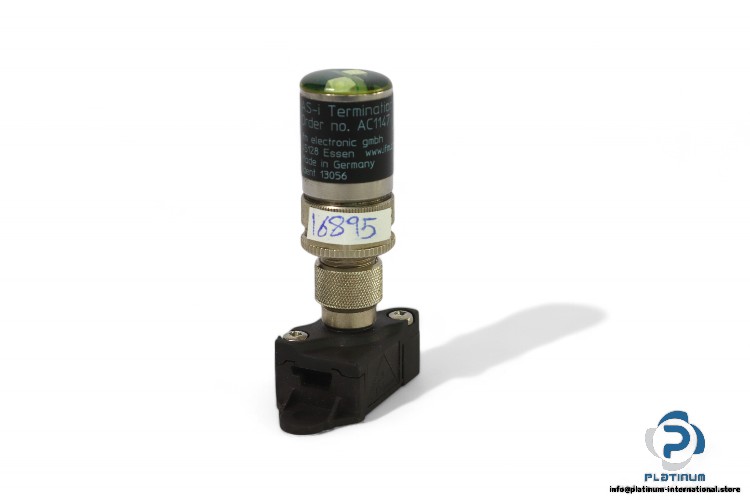

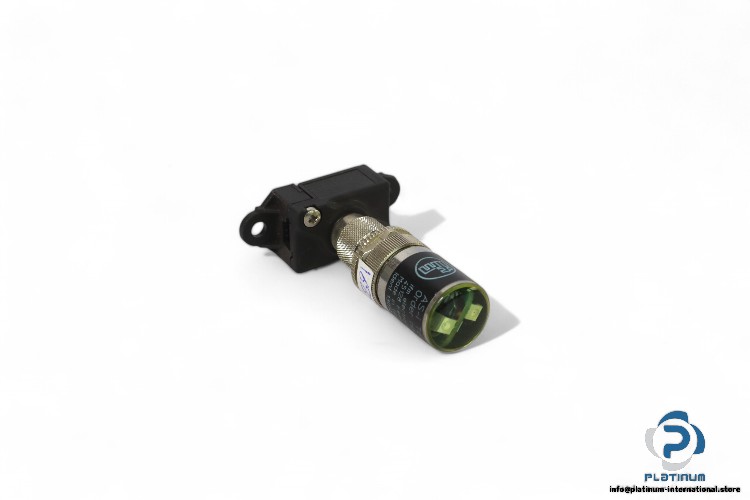

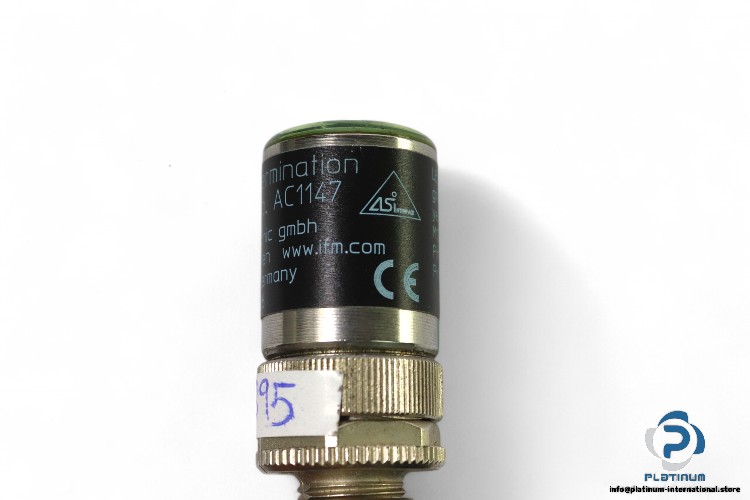

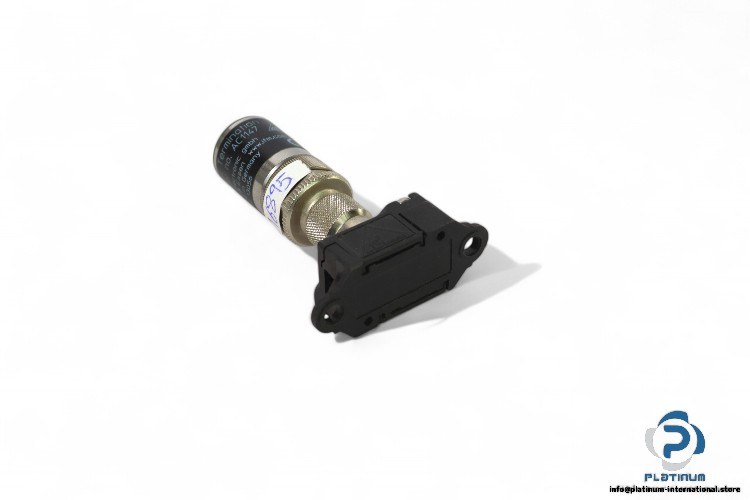

IFM AC1147 BUS Termination

Manufacturer: IFM
Type: BUS TERMINATION
Model: AS-I
Alternative Model: AC1147

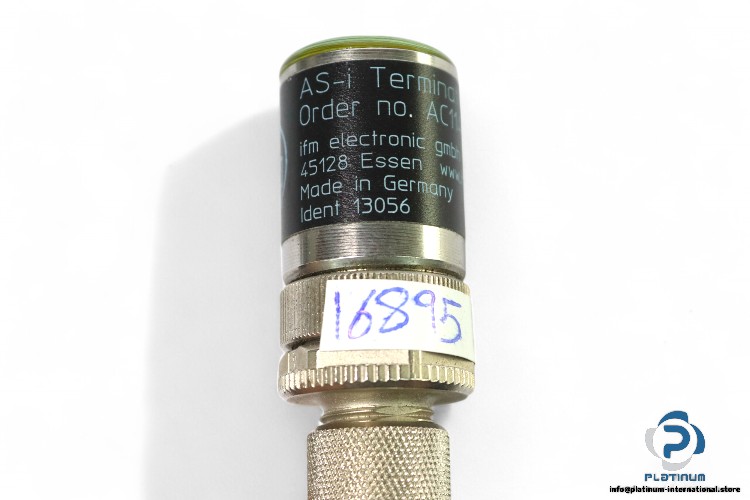

Part No.: 13056

Operating Voltage: 26.5 … 31.6 V DC
Current Consumption Max.: < 10 mA

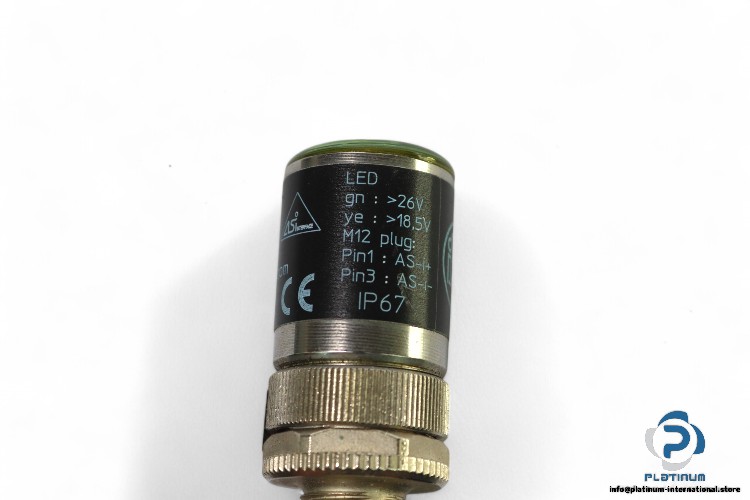

Displays / operating elements: yellow LED lights when AS-i voltage > 18.5 V, green LED lights when AS-i voltage> 26 V
Electrical design: Passive AS-I Bus Termination
Electrical Connection: M12 Connector, 4-Pin
Protection Class: IP67
Ambient Temperature: -25 … 70 °C
Wiring: 1: AS-i +/ 3: AS-i –
