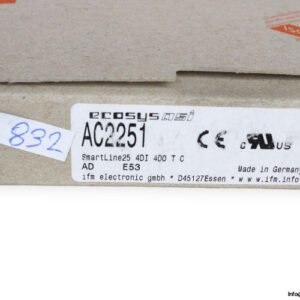

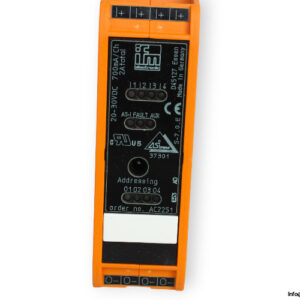

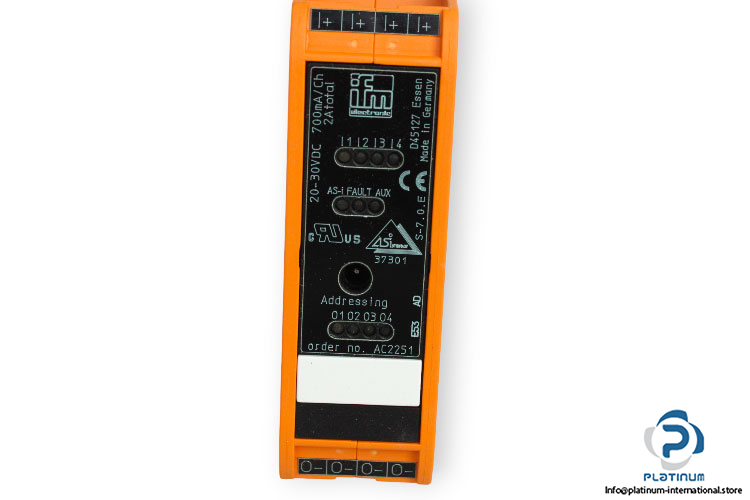

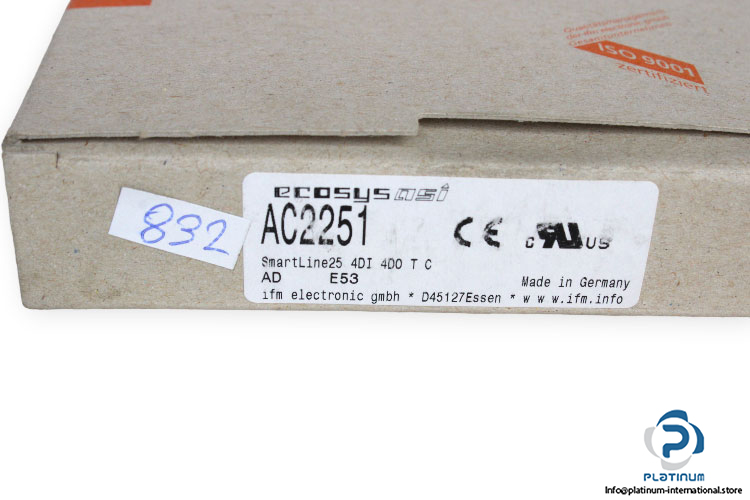

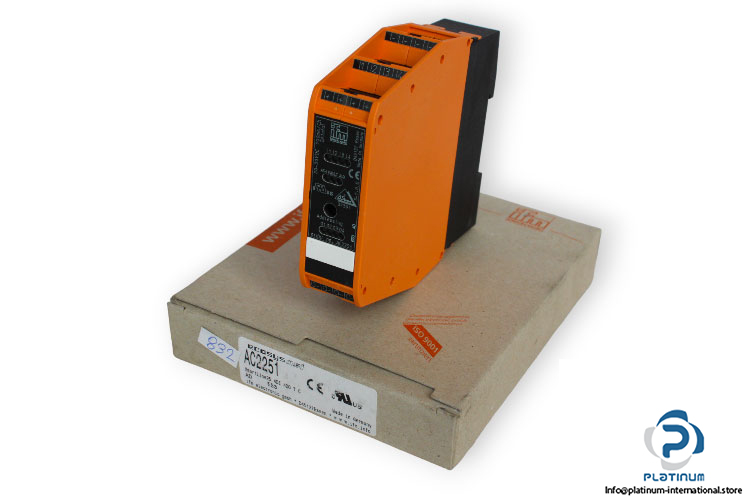

IFM AC2251 Interface Control Cabinet Module

Manufacturer: IFM

Type: Interface Control Cabinet Module

Model: AC2251



Features:

–For use in control cabinets

-Simple and fast wiring by means of cage clamps

-Particularly space-saving design

-Double terminals for looping through the voltage supply

-Clearly visible powerful LEDs for displaying operation, switching status and function

Operating voltage: 26.5 … 31.6 V DC

Max. current consumption from AS-i [mA]: 250 mA

Voltage supply: 20 … 30 V DC

Input current High: 6 … 10 mA

Input current Low: 0 … 2 mA

No. of digital input (DI): 4

No. of digital output (DO): 4

Input circuit of digital inputs: PNP

Pollution degree: 2

Ambient temperature: -25 … 70°C

Protection degree: IP20

Type of mounting: mounting on DIN rail
