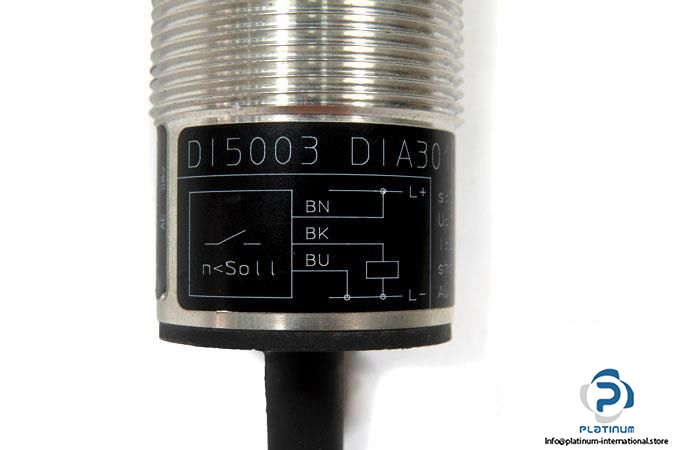

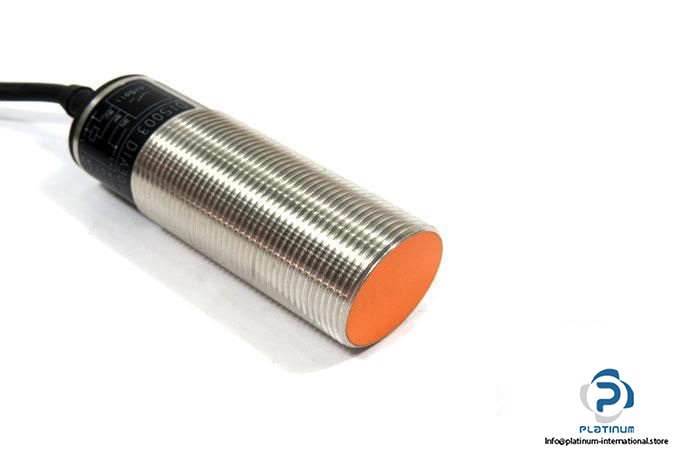

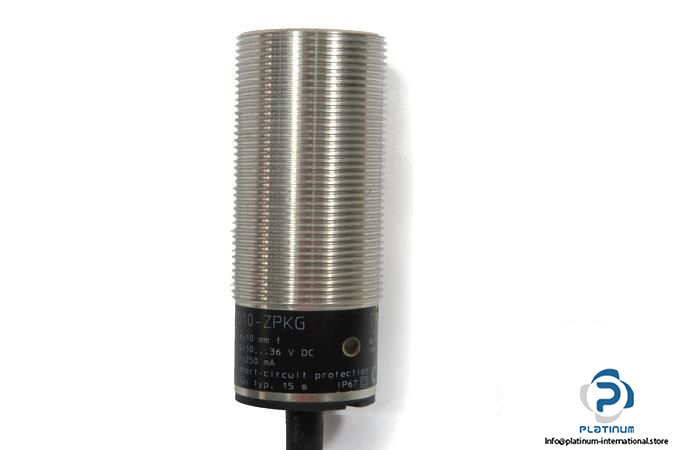

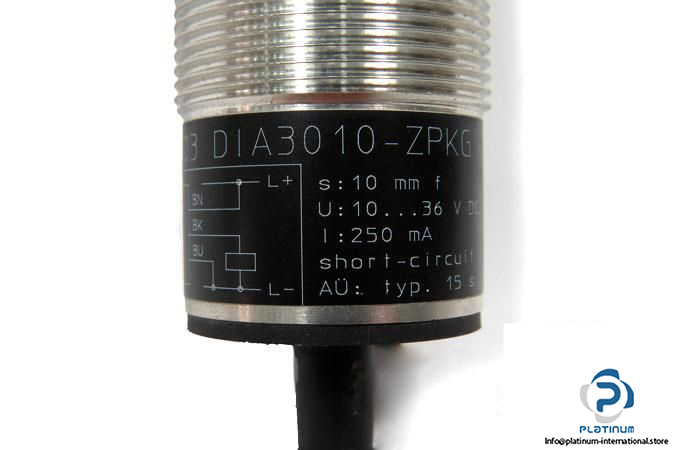

IFM DI5003 Compact Evaluation Unit FOR Speed Monitoring

Name: IFM DI5003 COMPACT EVALUATION UNIT FOR SPEED MONITORING
SKU: 964255
Availability: LimitedAvailability


ifm-di5003-compact-evaluation-unit-for-speed-monitoring-3_675x450

ifm-di5003-compact-evaluation-unit-for-speed-monitoring-4_675x450

ifm-di5003-compact-evaluation-unit-for-speed-monitoring-5_675x450

ifm-di5003-compact-evaluation-unit-for-speed-monitoring-6_675x450





New

In stock1 unitReady to ship

SKU

964255

Category

Sensors

Condition

New

ifm Sensor Speed

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: ifm

Type: COMPACT EVALUATION UNIT FOR SPEED MONITORING SENSOR

Part No.: DI5003

MRN: DIA3010-ZPKG

Application: 2 in 1 speed sensor and evaluation in one compact housing blocking, Simple evaluation of rotating and linear movement with regard to under speed

Sensing Range: 10 mm

Operating Voltage: 10 … 36 V DC

Switching output current: 250 mA DC

Electrical design: PNP

Output Function: Normally open

Adjustment: Potentiometer

Connector type, length: PVC Cable, 2 m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 30 , 81 mm

Material: Brass special coating; PBT

Mounting: Flush mountable, or non-flush mountable

Weight: 258.4 g

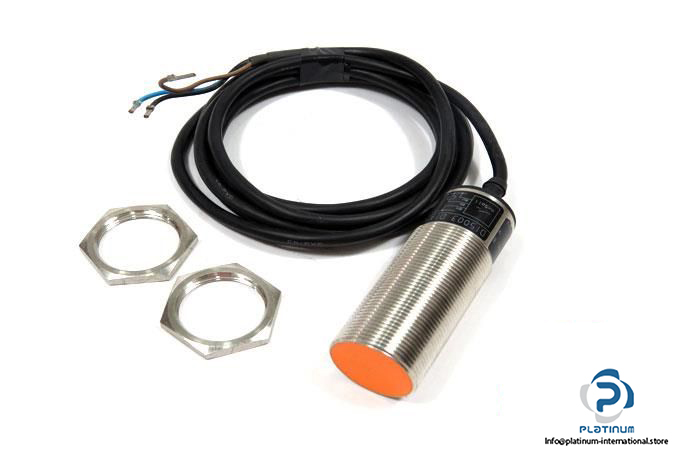

Supplied Accessories: 2 lock nuts

Condition: New
