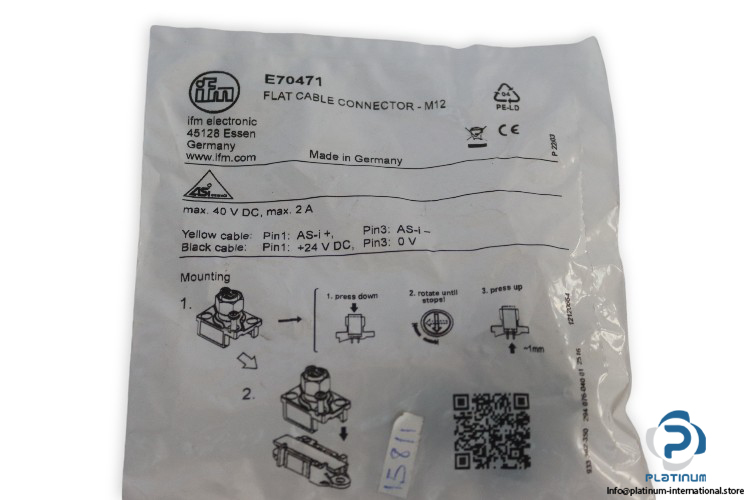

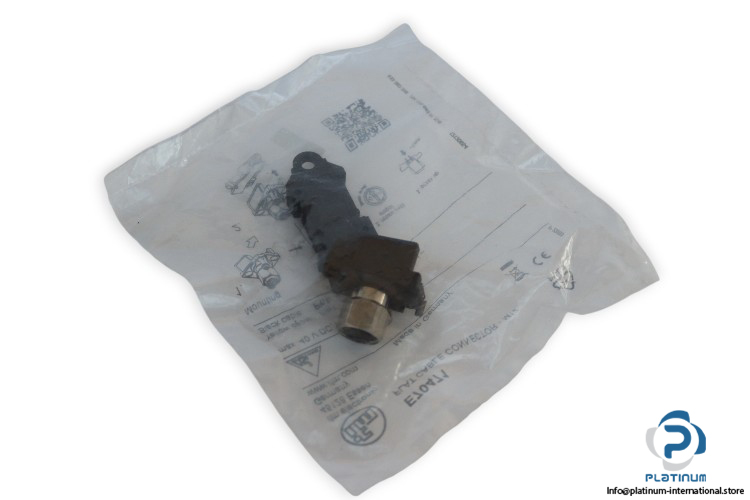

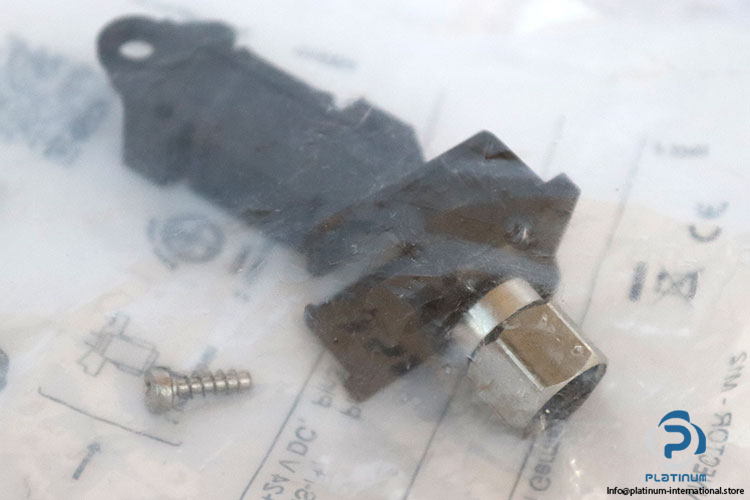

IFM E70471 Flat Cable Connector

Manufacturer: IFM
Type: AS-Interface flat cable insulation displacement connector
Model: E70471

Operating voltage: 40 V DC max.
Current load total: 2 A max.
Electrical design: AS-i
Ambient Temperature: -25 … +70 °C
Degree of Protection: IP 67
Materials: Sealing: EPDM; housing: PA; O-ring: EPDM; screws: stainless steel (303/1.4305); Lock nut: stainless steel (303/1.4305); contact pins: bronze gold-plated
Connection: Connector: M12
Tightening torque: 0.35 Nm
