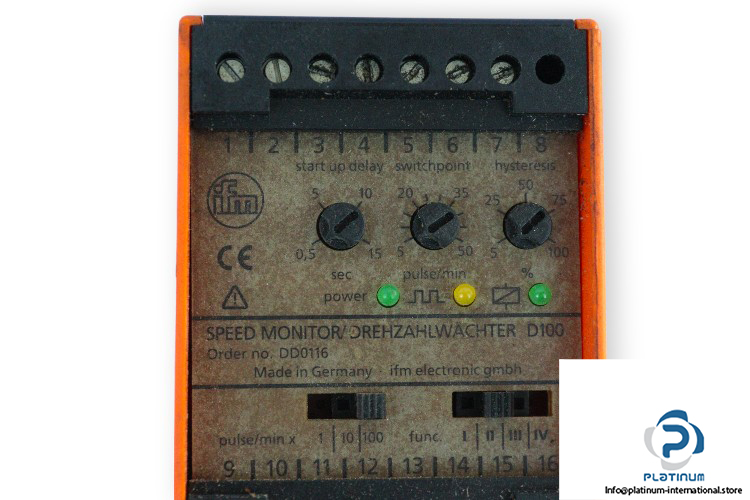

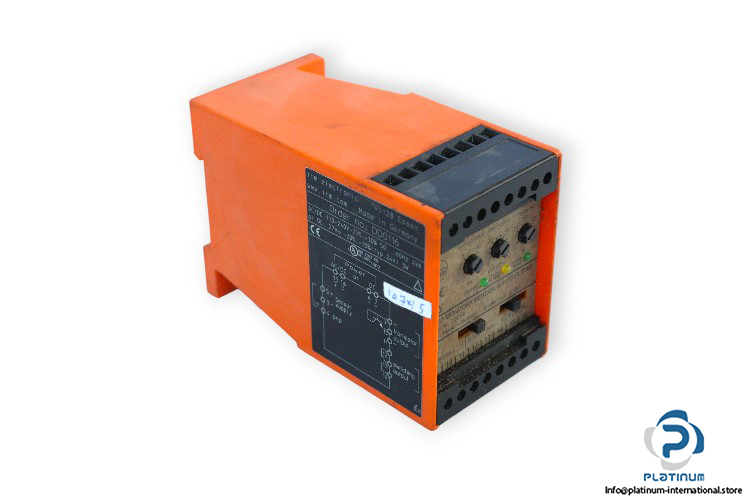

IFM Electronic DD0116 Speed Monitor

Manufacturer: IFM ELECTRONIC
Type: Speed Monitor
Model: DD0116
Alternative Model: D100

Nominal Voltage: 110 … 240 V AC/DC, 27 V DC
Frequency: 50 … 60 Hz
Sensor Signal: PNP
Number of Outputs: 1 Digital Output + 1 Relay Output
Analog Outputs Ratings: 24 V, 200 mA
Contact: 1 Normally Open (NO) + 1 Normally Closed (NC)
Contact Ratings: 250 V AC, 6 A
Start-Up Delay: 0.5 … 15 sec
Setting Switch Point Range: 5 … 50 Imp/min
Hysteresis: 5 … 100 %
Protection Class: IP40
Ambient Temperature: -40 … 70 °C
Dimensions: 75 x 55 x 110 mm</p
