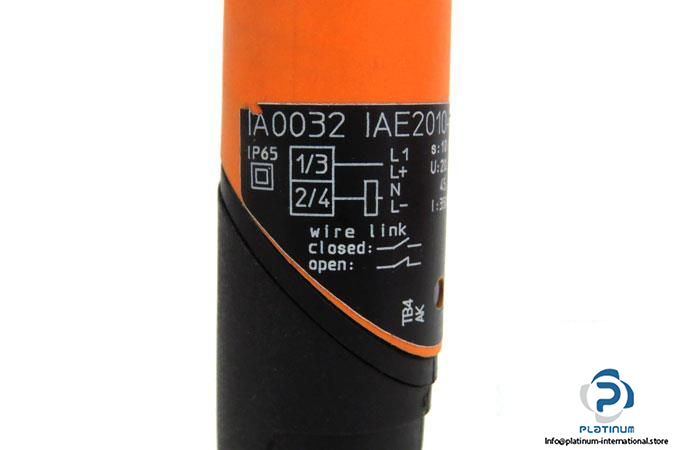

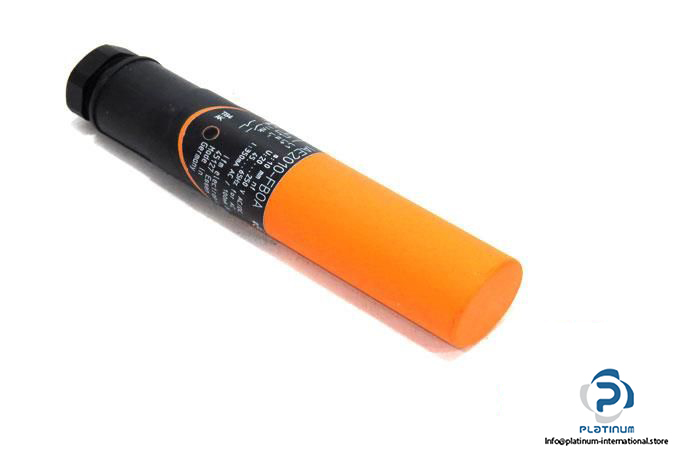

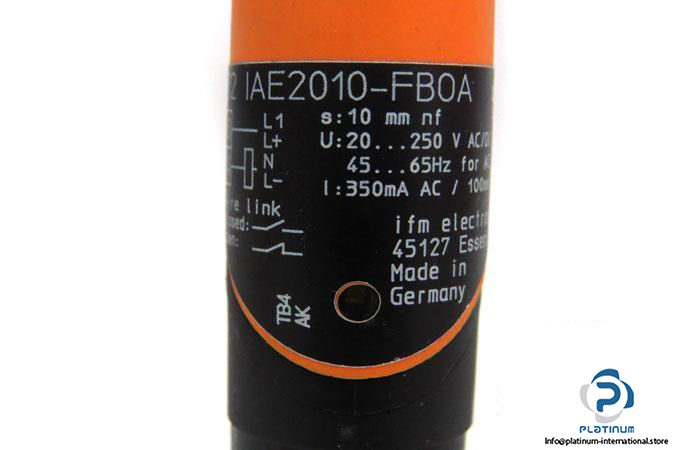

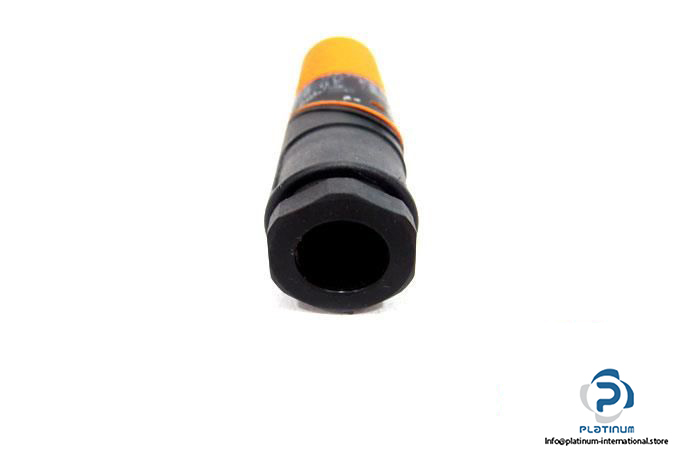

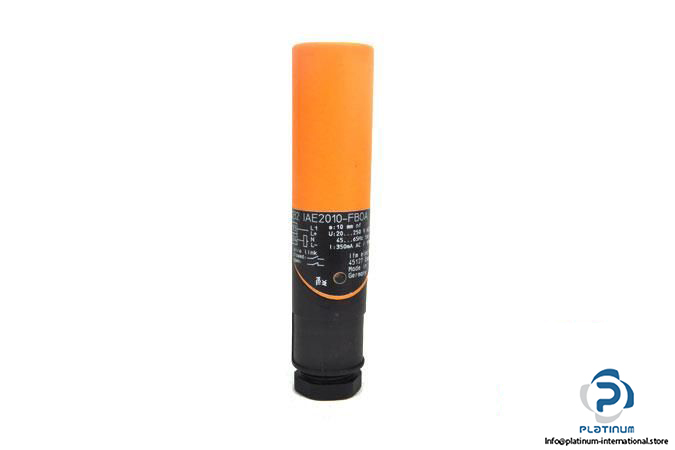

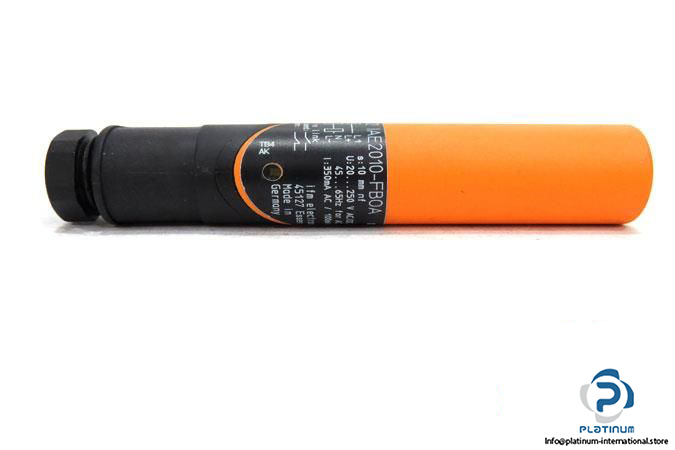

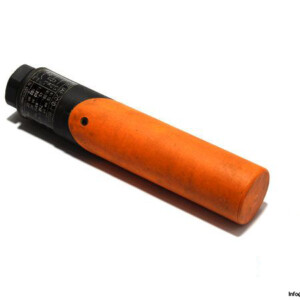

IFM IA0032 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IA0032

MRN: IAE2010-FBOA

Sensing Range: 10 mm

Real Sensing Range: 10 ± 10% mm

Operating Distance: 0 … 8.1 mm

Operating Voltage: 20 … 250 V AC/DC

Switching Output Current (AC, DC): 350,100 mA DC

Switching Frequency (AC,DC): 25 ,70 Hz

Output Function: Normally Open/Normally Closed

Connector Type: Cable Gland: M16 X 1.5

Protection Class: II

Enclosure Rating: IP65

Housing:  Cylindrical

Ambient Operating Temperature: -25 … 80°C

Diameter, Housing Length: 20 , 92 mm

Material: PBT

Weight: 40 g
