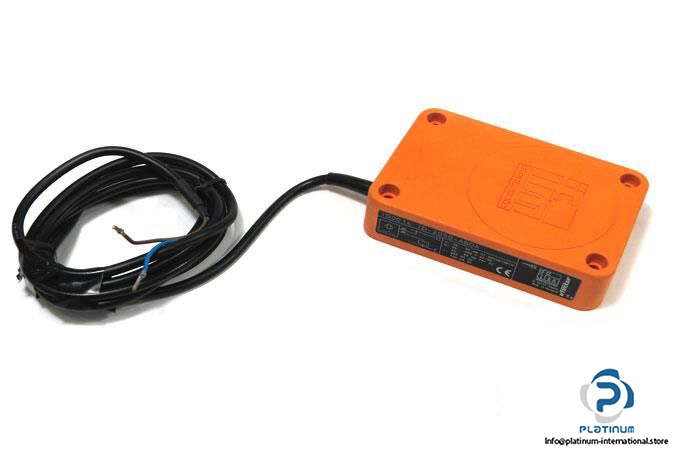

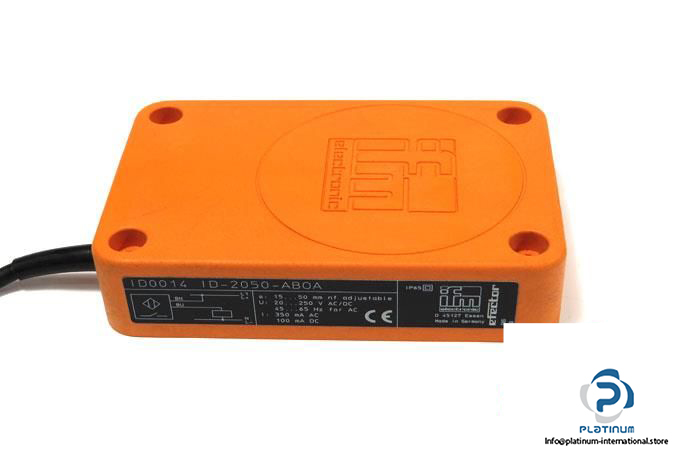

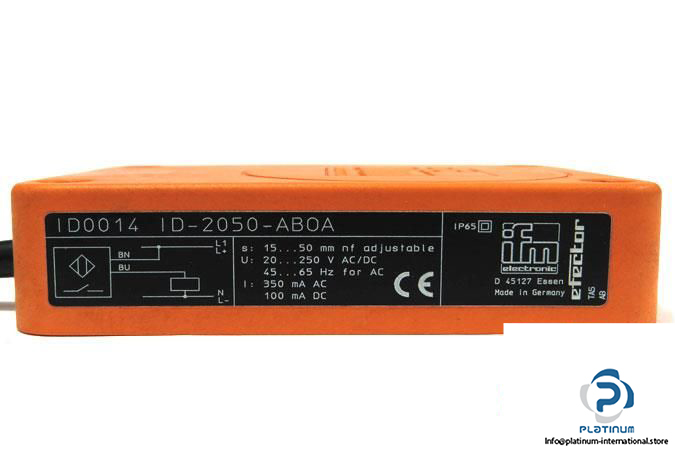

IFM ID0014 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: ID0014

MRN: ID-2050-ABOA

Sensing Range: 15 … 50 mm

Real Sensing Range: 50 ± 10% mm

Operating Distance: 0 … 40.5 mm

Operating Voltage: 20 … 250 V AC/DC, at 45 … 65 for AC

Voltage Drop max.(AC,DC): 5.5 V AC, 5 V DC

Switching output current(AC,DC): 350 mA AC,100 mA DC

Switching frequency (AC, DC): 25,35Hz

Output Function: Normally open

Connector type, length: PVC Cable , 2 m

Protection Class: II

Enclosure rating: IP65

Housing: Rectangular

Ambient Operating temperature: -25 … 80°C

Dimensions: 120 x 80 x 30 mm

Material: PPE modified

Mounting: Non-flush mountable

Weight: 561.5 g
