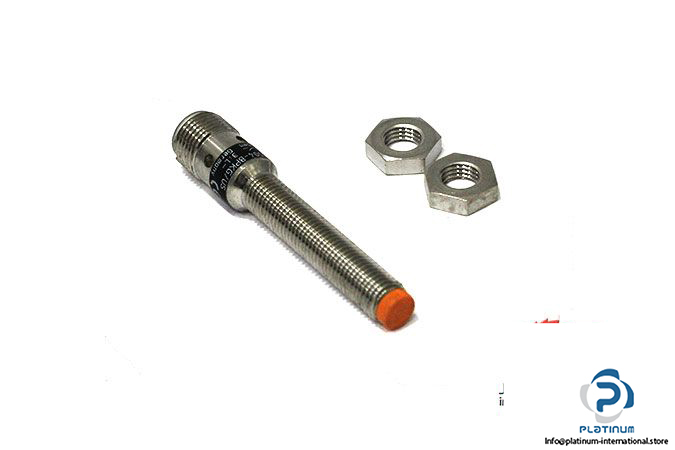

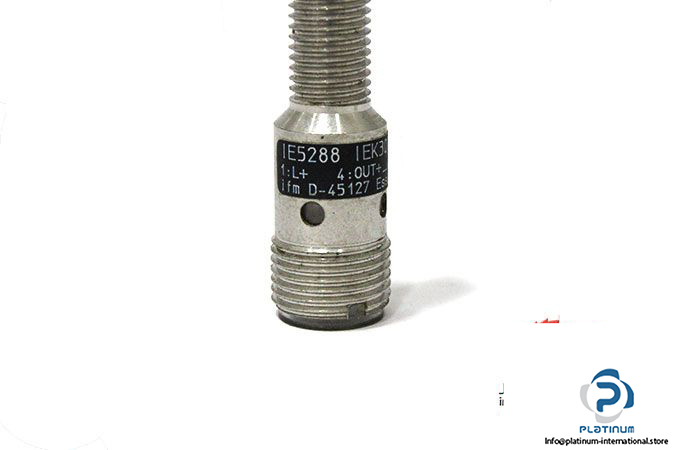

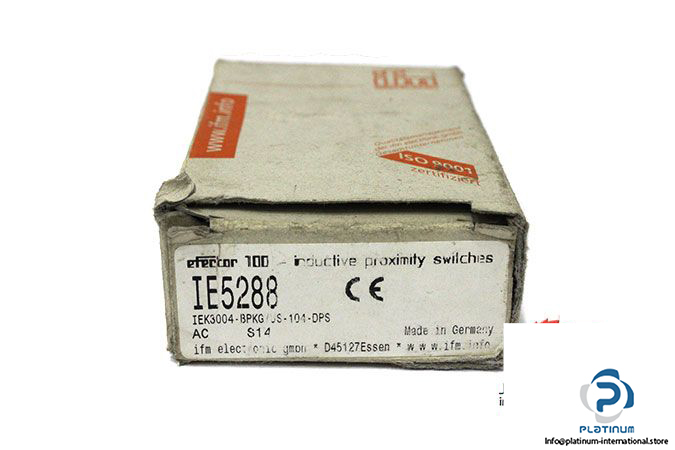

IFM IE5288 Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IE5288

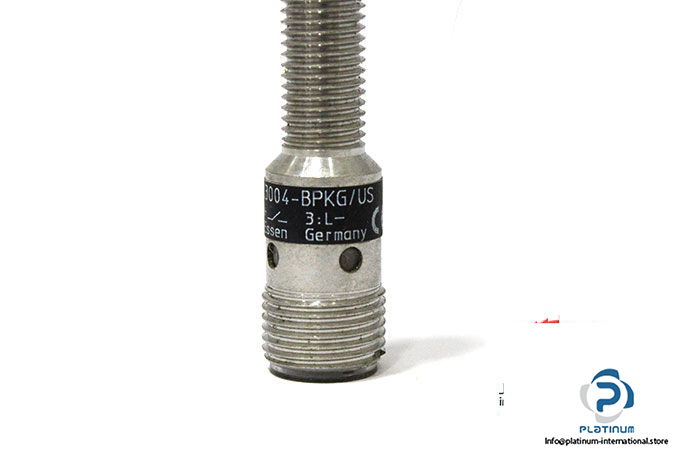

MRN: IEK3004-BPKG/US-104

Sensing Range: 4 mm

Operating Distance: 0 … 3.25

Operating Voltage: 10 … 30 V DC

Current Consumption: < 10 mA
Switching Frequency DC: 300 Hz

Switching Output Current: 100 mA DC

Voltage Drop Max.: 2.5 V

Minimum Load Current: 4 mA

Electrical Design: PNP

Output Function: Normally Open

Protection Class: III

Enclosure Rating: IP67

Housing:  Threaded Type

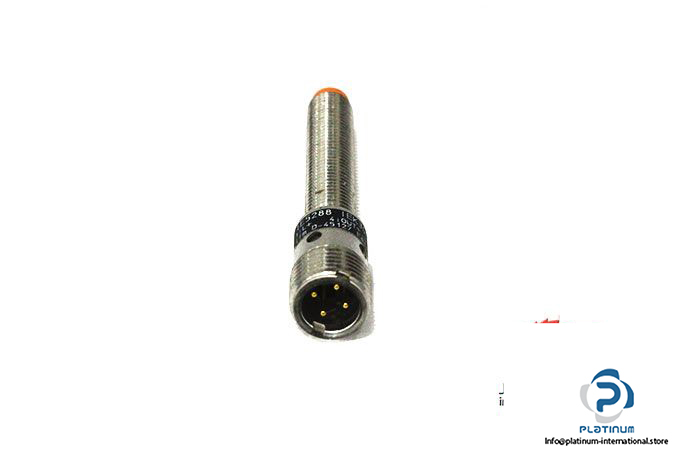

Electrical Connection: M12 4-Pin

Ambient Operating Temperature: -25 … 70 °C

Diameter, Housing Length: 8, 60 mm

Material: Brass White Bronze Coated; Sensing Face: LCP Black

Mounting: Non-Flush Mountable

Supplied Accessories: Lock Nuts: 2

Weight: 0.03 kg
