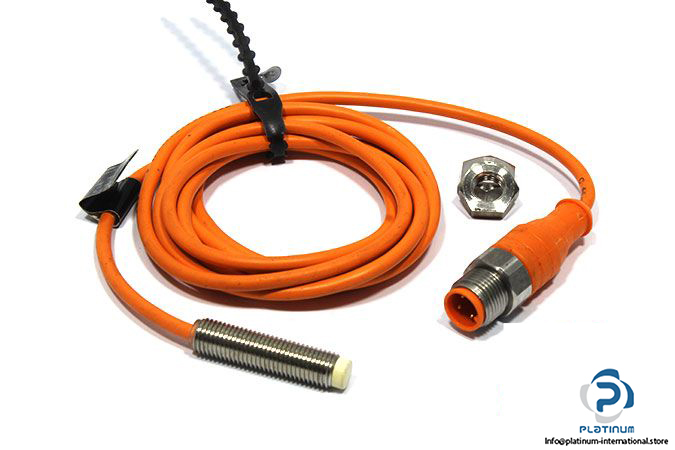

IFM IE5376 Inductive Sensor

Manufacturer: IFM

Type: Inductive Sensor

Part No.: IE5376

MRN: IEB3003-BPKG/V4A/1,5M/US RT

Sensing Range: 3 mm

Operating Distance: 0 … 2.4 mm

Operating Voltage: 10 … 36 V DC

Voltage Drop: 2.5 V DC

Switching Output Current: 200 mA DC

Current Consumption: 15 mA

Switching Frequency: 300 Hz DC

Electrical Design: PNP

Output Function: Normally Open

Connection Type: M12 Connector, Cable: 1.5 m

Protection Class: III

Enclosure Rating: IP67

Housing:  Threaded Type

Ambient Operating Temperature: 0 … 70 °C

Diameter, Housing Length: 8, 35 mm

Material: Stainless Steel; Sensing Face: PBT

Mounting: Non-Flush Mountable

Supplied Accessories: 2 Lock Nuts

Weight: 0.055 kg
