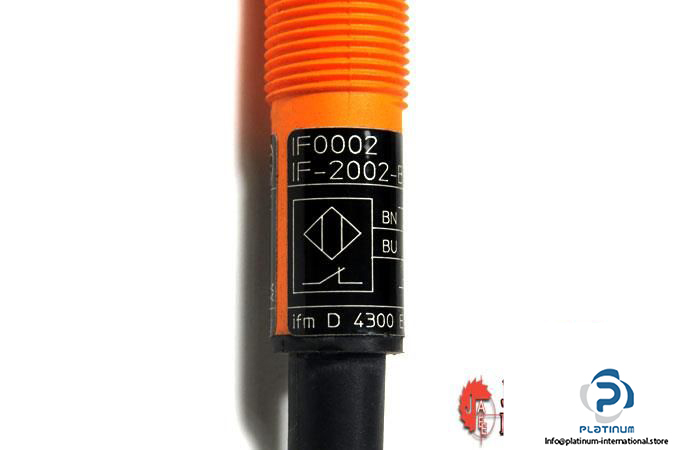

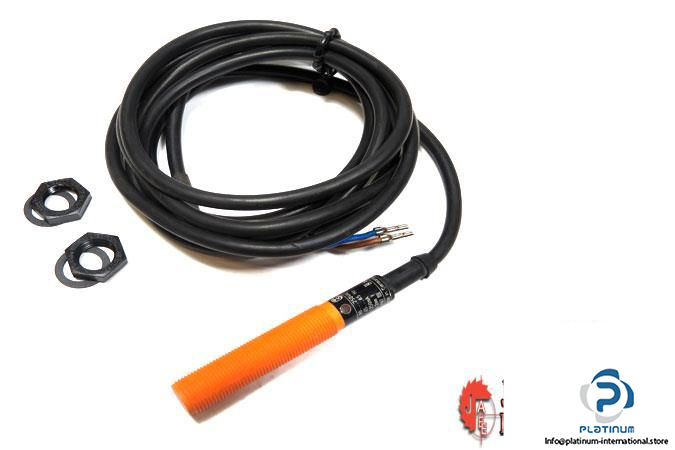

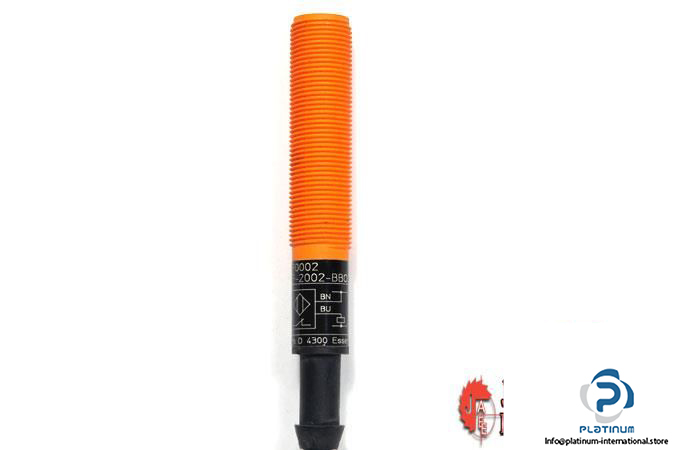

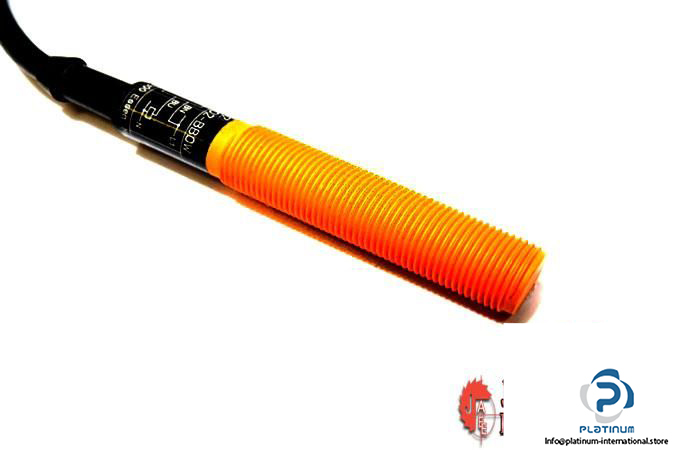

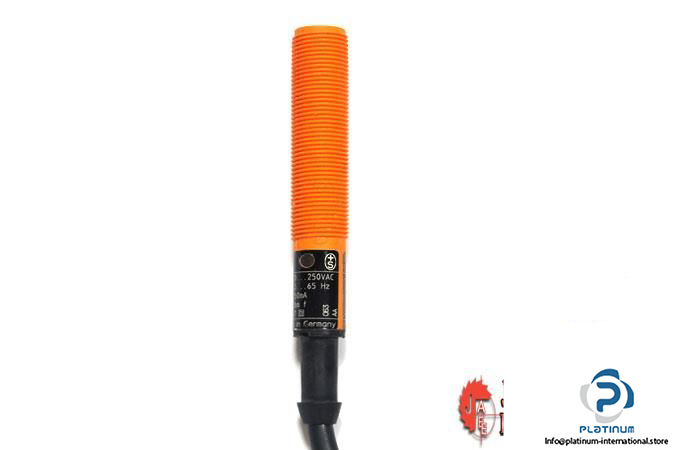

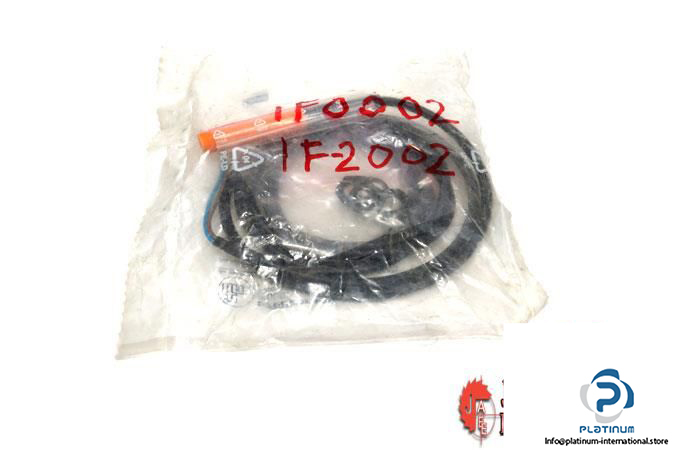

IFM IF0002 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IF0002

MRN: IF-2002-BBOW

Sensing Range:  2 mm

Real Sensing Range: 2 ± 10 % mm

Operating Distance: 0 … 1.6 mm

Operating Voltage: 20 … 250 V AC

Voltage Drop: 8.5 V AC

Switching output current: 200 mA AC

Load Current min.: 8 mA

Switching frequency: 25 Hz AC

Output Function: normally closed

Connector type, length: PVC Cable, 2 m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80 °C

Diameter, Housing length: 12, 71.5 mm

Material: PBT

Mounting: Flush mountable

Supplied Accessories:  2 lock nuts
