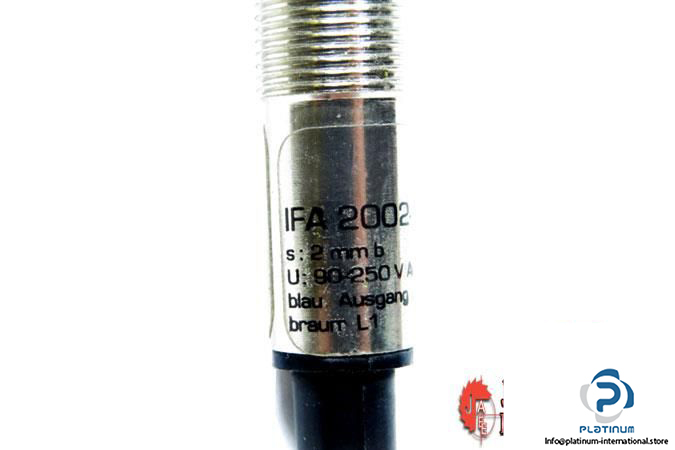

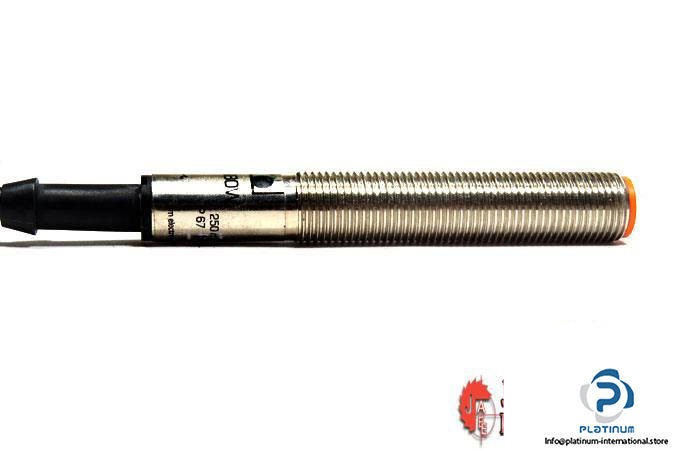

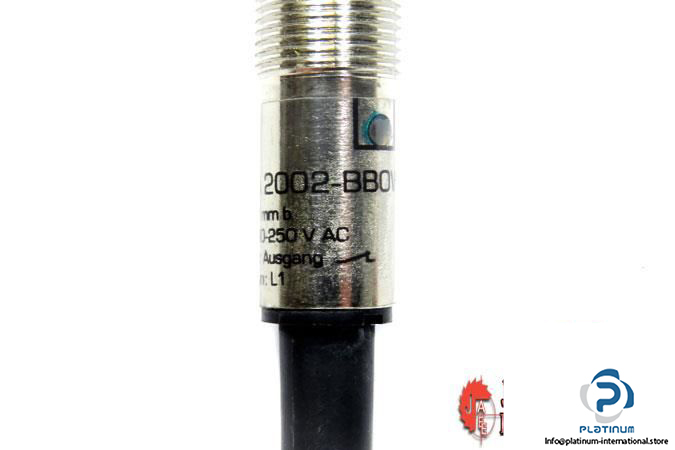

IFM IF0006 Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Model: IF0006

MRN No: IFA2002-BBOW

Sensing range: 2 mm

Real sensing range: 2 ± 10 % mm

Operating distance: 0 … 1.6

Operating voltage: 20…250 V AC

Output function: Normally closed

Output current: 200 mA

Switching frequency: 25 HZ

Output voltage drop max.: 8.5 V

Connection: Cable: 2 m, PVC; 2 x 0.5 mm²

Ambient operating temperature: -25 … 80°C

Protection class: II

Enclosure rating: IP67

Housing: Threaded type

Diameter, Housing length: 12, 71.5 mm

Material: Brass white bronze coated; PBT

Mounting: flush mountable

Weight: 115.4 g

Condition: New
