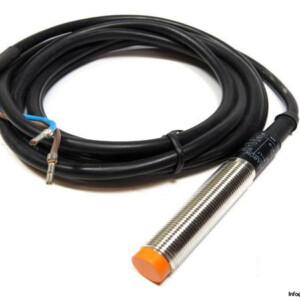

IFM IF0007 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IF0007

MRN: IFA2004-ABOW

Sensing Range: 4 mm

Real Sensing Range: 4 ± 10% mm

Operating Distance: 0 … 3.25 mm

Operating Voltage: 20 … 250 V AC, 47… 63 HZ

Switching output current: 200; 250 at 50 °C

Switching frequency: 25 Hz AC

Output Function: Normally open

Connector type, length: PVC Cable, 2 m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 12, 71 mm

Material: Brass white bronze coated; sensing face: PBT

Mounting: Non- flush mountable
