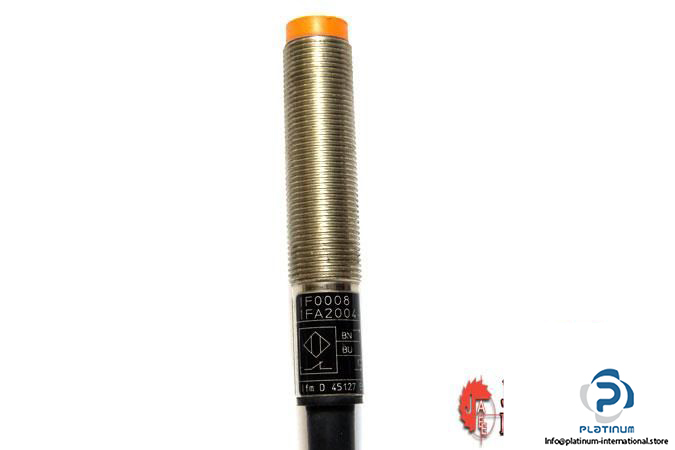

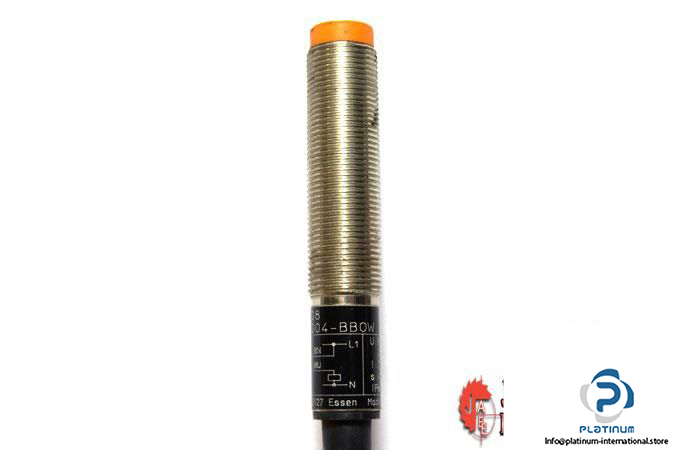

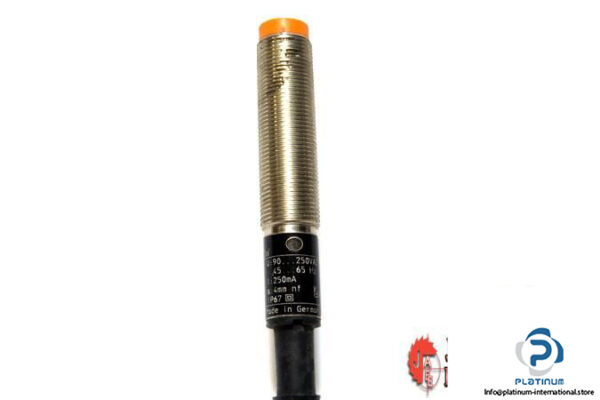

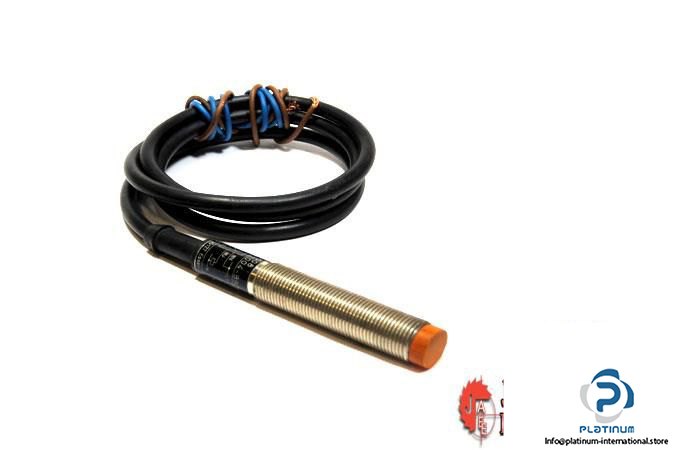

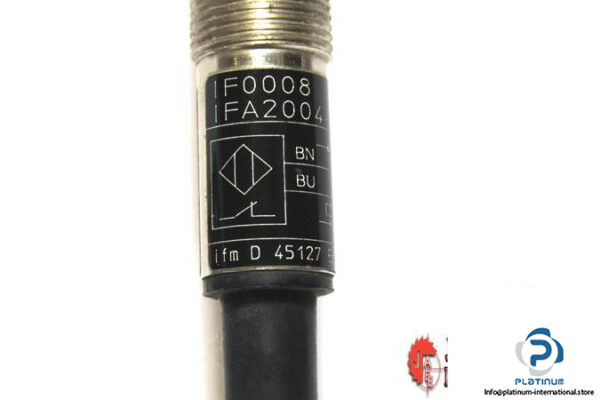

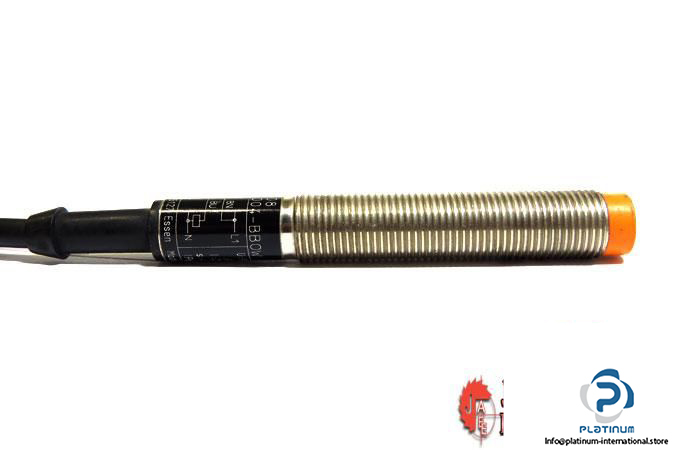

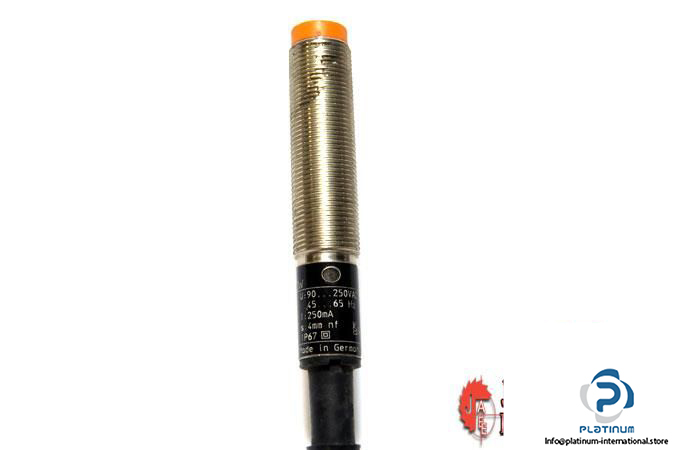

IFM IF0008 Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IF0008

MRN: IFA2004-BBOW

Sensing range: 4 mm

Real sensing range: 4 ± 10 % mm

Operating Distance: 0 … 3.25 mm

Operating Voltage: 20 … 250 V AC, 47 … 63 Hz

Voltage drop max.:  8.5 V AC

Switching output current: 200 mA AC

Maximum load Current: 8 mA

Switching frequency AC: 25 Hz

Output function: Normally closed

Connection: PVC Cable

Protection Class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 12, 71 mm

Housing: Threaded type

Material: brass white bronze coated; PBT

Mounting: Non-flush mountable

Weight: 114.2 g

Condition: Used
