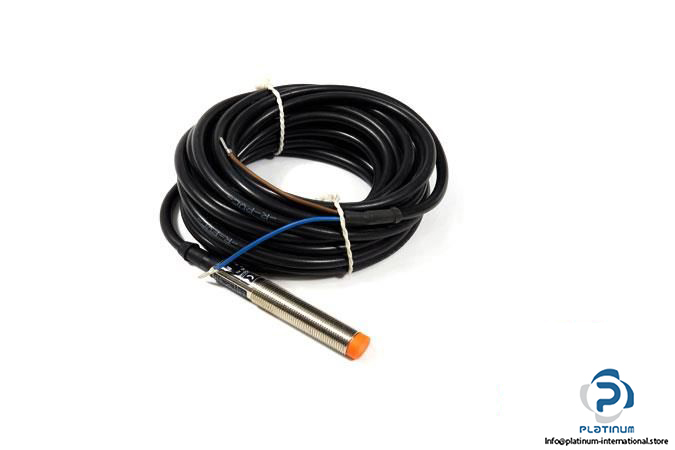

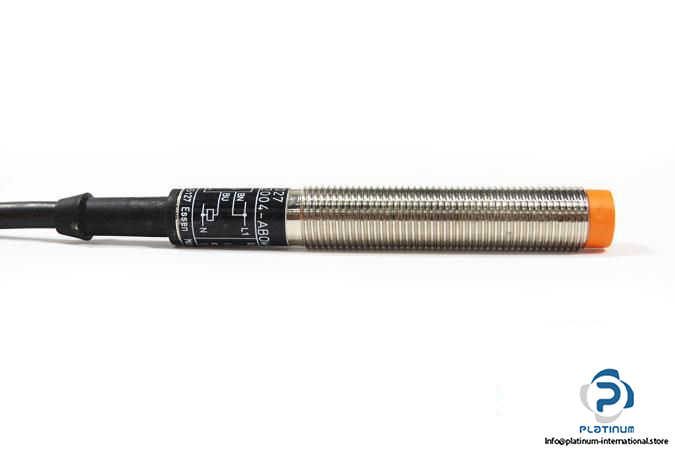

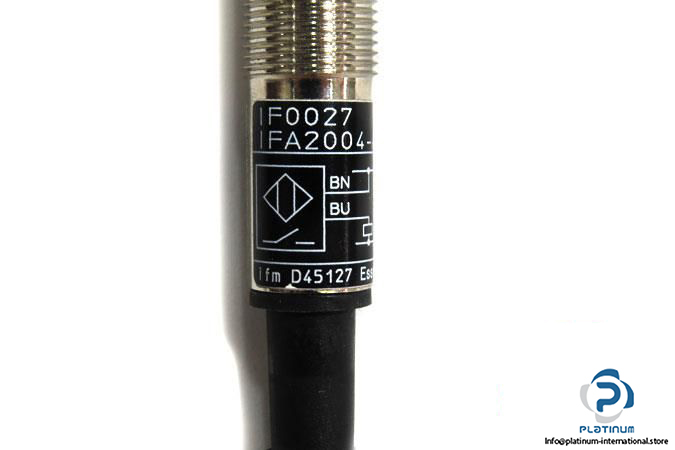

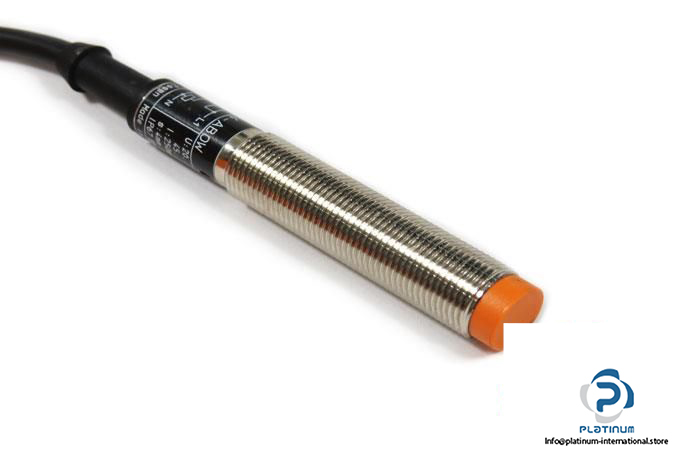

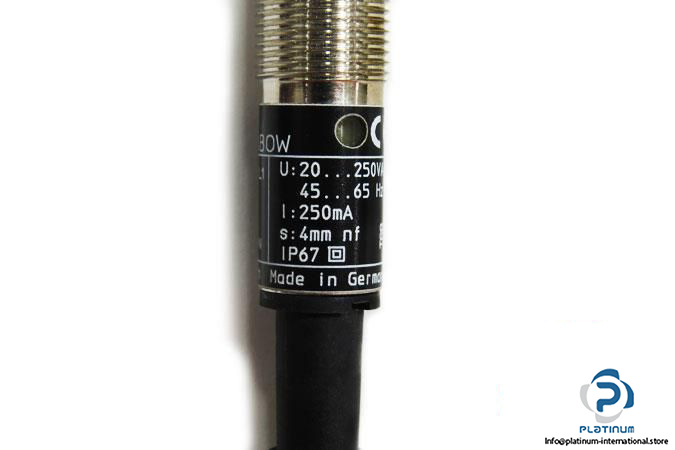

IFM IF0027 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IF0027

MRN: IFA2004-ABOW/6M

Sensing Range: 4 mm

Real Sensing Range: 4 ± 10% mm

Operating Distance: 0 … 3.25 mm

Operating Voltage: 20 … 250 V AC, at 45 … 65 Hz

Voltage Drop max.: 8.5 V AC

Switching output current: 250 mA AC

Switching frequency: 25 Hz

Output Function: Normally open

Connector type: PVC Cable, 6 m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: 25 … 80 °C

Diameter, Housing length: 12 , 72 mm

Material: Brass white bronze coated; active face: PBT

Mounting: Non-flush mountable

Weight: 305 g

Condition: New
