IFM IF5188 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

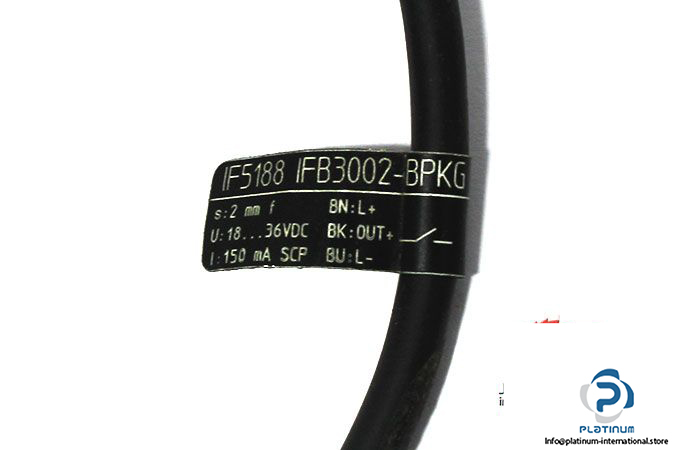

Part No.: IF5188

MRN: IFB3002-BPKG

Sensing Range: 2 mm

Operating Distance: 0 … 1.6

Operating Voltage: 10 … 36 V DC

Operating Current: 150 mA

Switching Frequency: 1500 Hz

Electrical Design: PNP

Switching Output: Normally open

Connector Type: Cable, 2 m

Protection Class: II

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 80°C

Diameter, Housing Length: 12, 35 mm

Housing Material: Brass White Bronze Coated

Sensing Face Material: PC

Mounting: Flush-Mountable

Weight: 100 g
