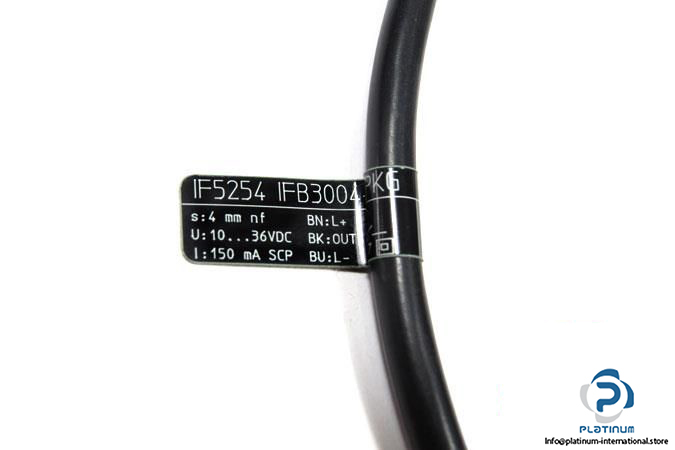

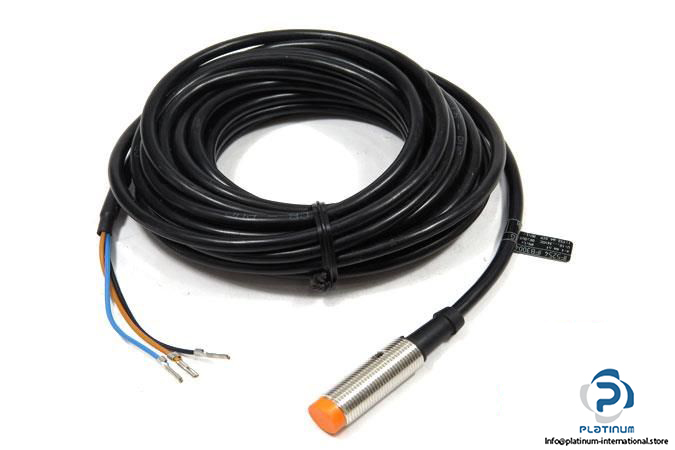

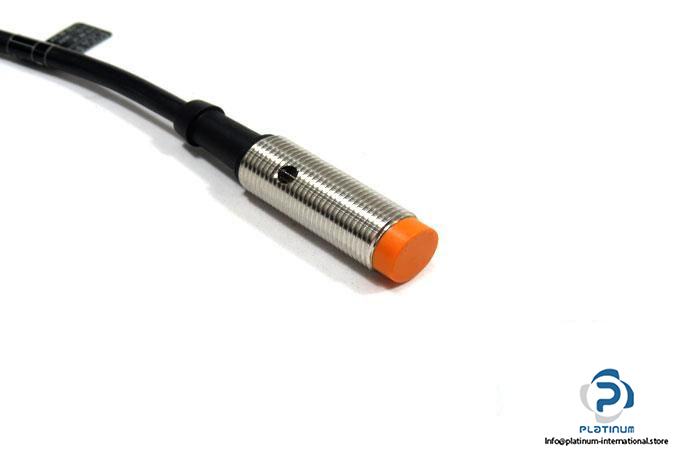

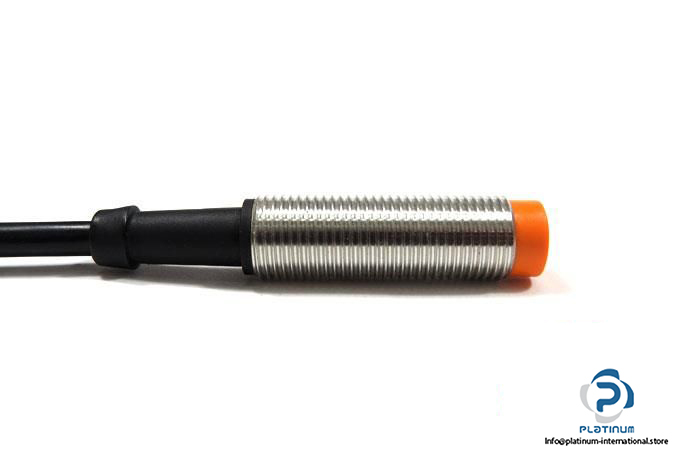

IFM IF5254 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IF5254

MRN: IFB3004-BPKG

Sensing Range: 4 mm

Real Sensing Range: 4 ± 10% mm

Operating Distance: 0 … 3.25 mm

Operating Voltage: 10 … 36 V DC

Switching output current: 150 mA DC

Switching frequency: 1500 Hz

Electrical Design: PNP

Output Function: Normally open

Connector type: PVC Cable, 6 m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 12, 35 mm

Material: Brass white bronze coated; sensing face: PC

Mounting: Non-flush mountable

Weight: 254.5 g

Condition: New
