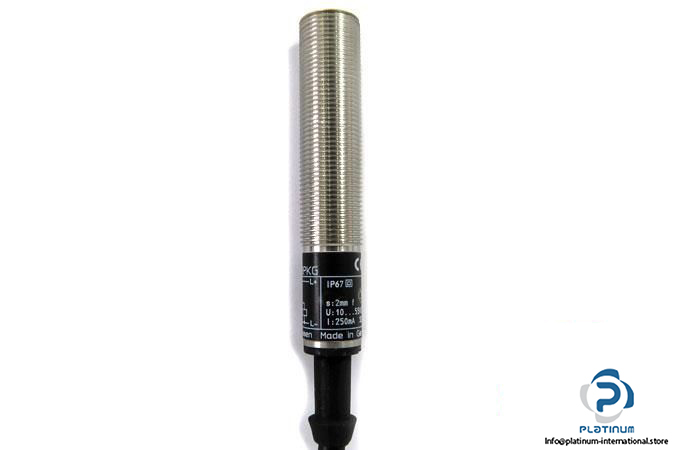

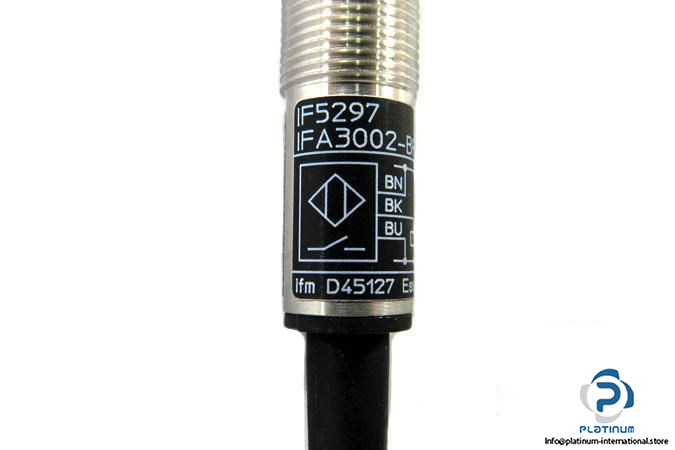

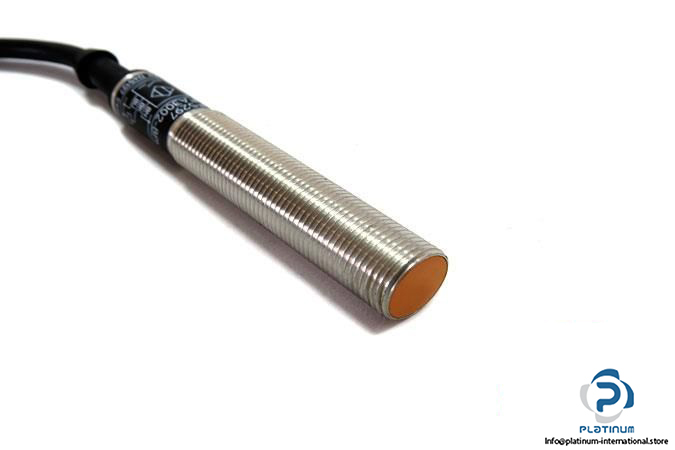

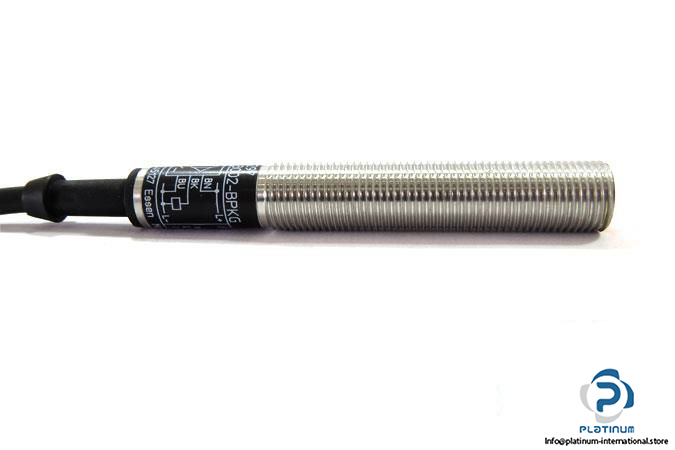

IFM IF5297 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IF5297

MRN: IFA3002-BPKG

Sensing Range: 2 mm

Real Sensing Range: 2 ± 10% mm

Operating Distance: 0 … 1.6 mm

Operating Voltage:  10 … 55 V DC

Switching Output Current: 250 mA DC

Current Consumption: 15 mA DC

Switching Frequency: 800 Hz

Electrical Design: PNP

Output Function: Normally Open

Connector Type, Length: PVC Cable, 2m

Protection Class: II

Enclosure Rating: IP67

Housing: Threaded Type

Ambient Operating Temperature: -25 … 80 °C

Diameter, Housing Length: 12, 71 mm

Material: Brass White Bronze Coated; Sensing Face: PC

Mounting: Flush-Mountable

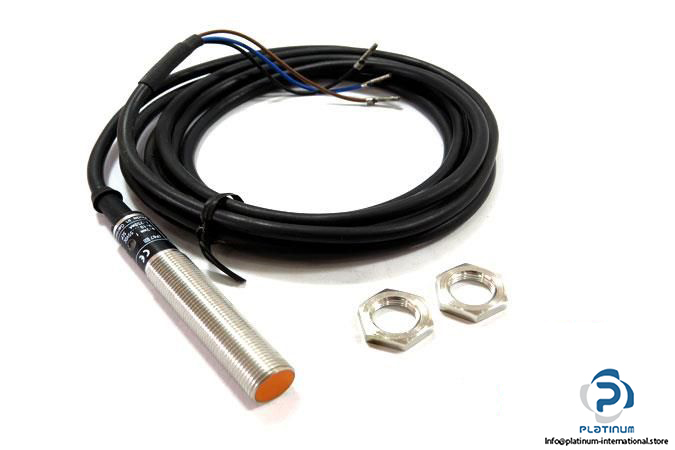

Supplied Accessories: 2 Lock Nuts

Weight: 105 g
