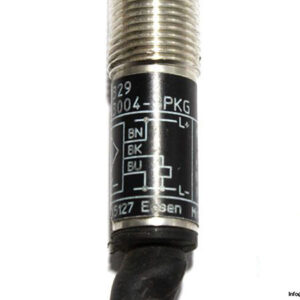

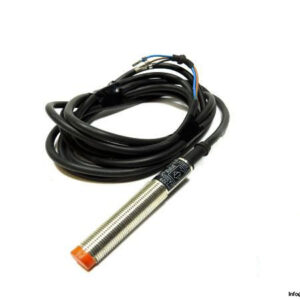

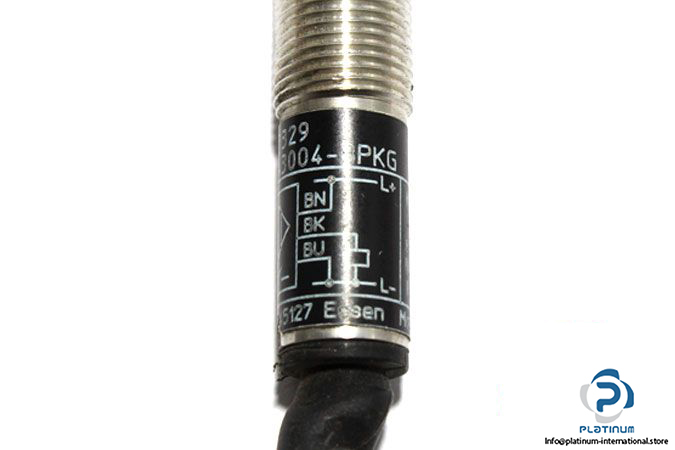

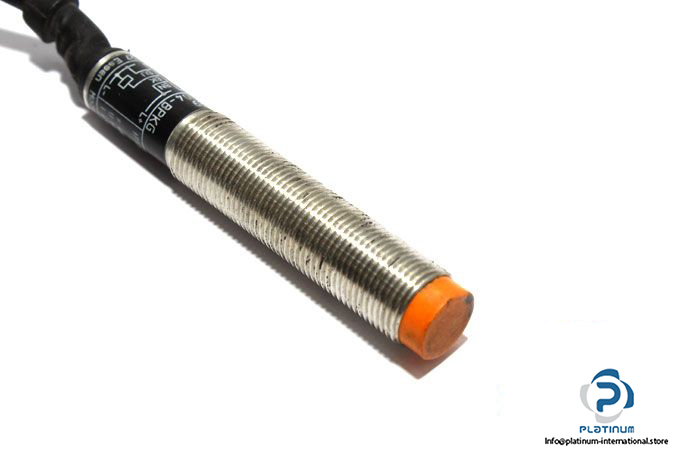

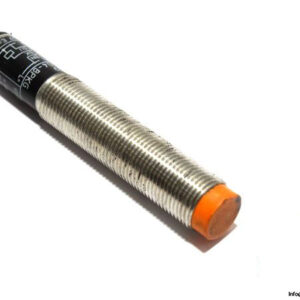

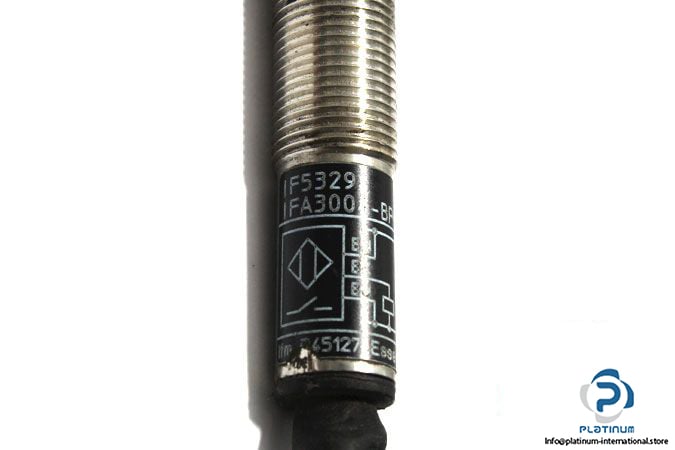

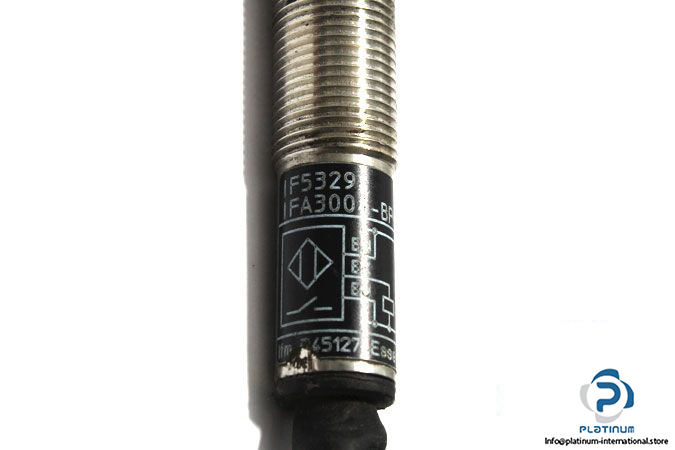

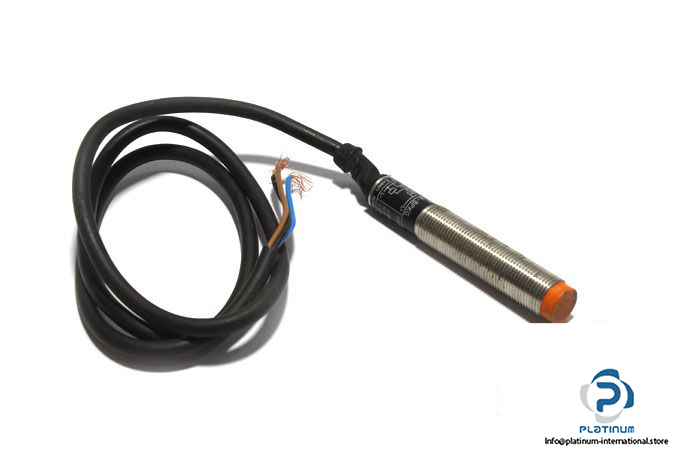

IFM IF5329 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IF5329

MRN: IFA3004-PBKG

Sensing Range: 4 mm

Real Sensing Range: 4 ± 10% mm

Operating Distance: 0 … 3.25 mm

Operating Voltage: 10 … 36 V DC

Voltage Drop Max.: 2.5 V DC

Switching Output Current: 250 mA DC

Current Consumption: 15 mA DC

Switching Frequency: 400 Hz DC

Electrical Design: PNP

Output Function: Normally Open

Connector Type, Length: PVC Cable ,2 m

Protection Class: II

Enclosure Rating: IP67

Housing: Threaded Type

Ambient Operating Temperature: -25 … 80°C

Diameter, Housing Length: 12 , 71 mm

Material: Stainless Steel , PBT

Mounting: Non-Flush Mountable

Weight: 100 g
