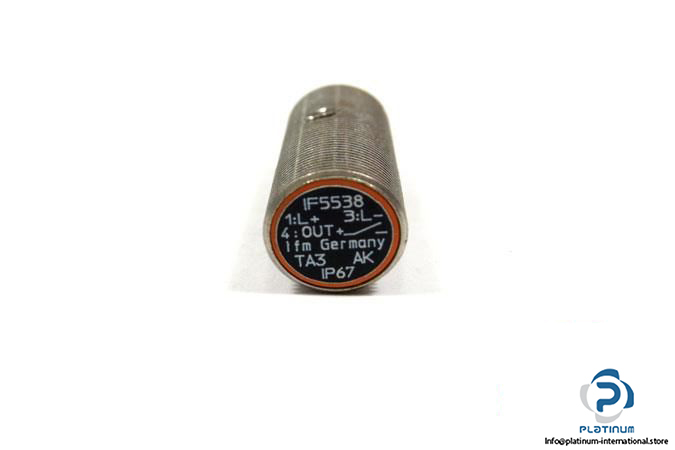

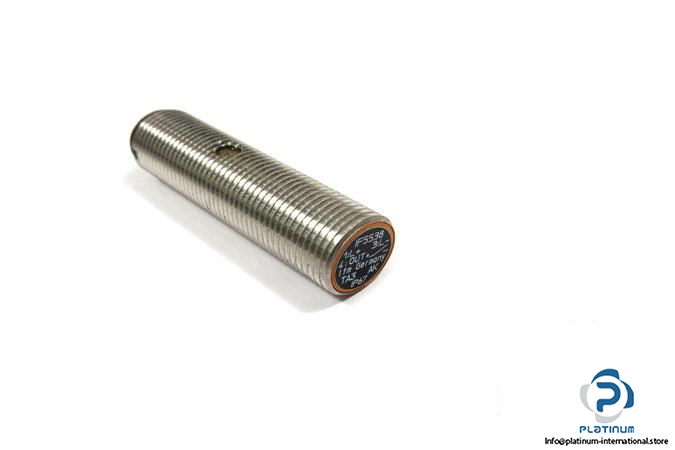

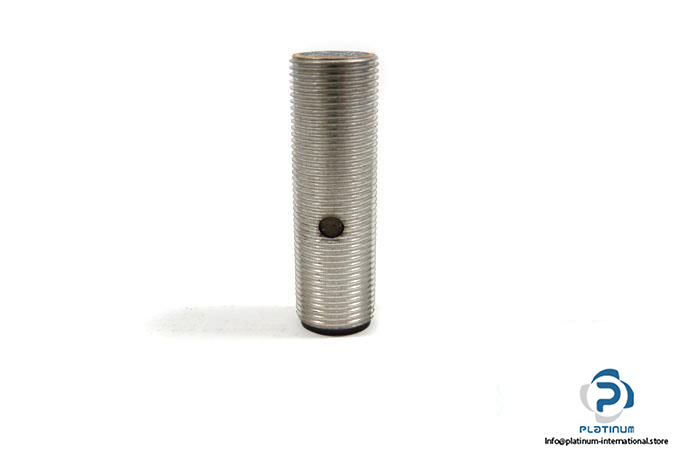

IFM IF5538 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IF5538

MRN: IFB3002-BPKG/US-100-DPS

Sensing Range: 2 mm

Real Sensing Range: 2 ± 10% mm

Operating Distance: 1.6 mm

Operating Voltage: 10 … 36 V DC

Switching Output Current: 150 mA DC

Switching Frequency: 1500 Hz

Electrical Design: PNP

Output Function: Normally Open

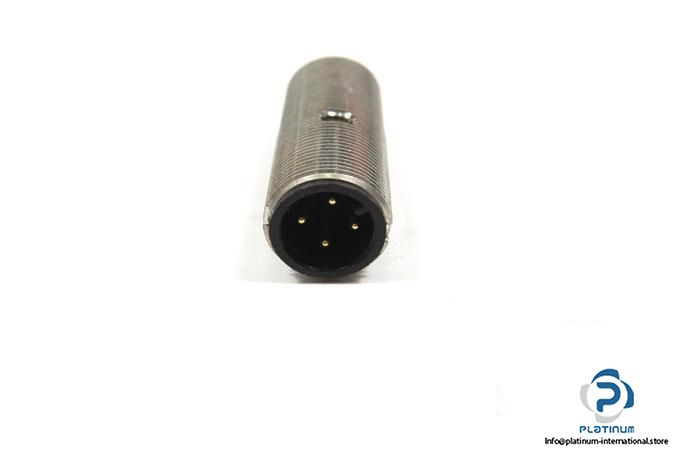

Connector Type: M12 Connector

Protection Class: II

Enclosure Rating: IP67

Housing: Threaded Type

Ambient Operating Temperature: -25 … 80°C

Diameter, Housing Length: 12, 43mm

Material: Brass White Bronze Coated; Sensing Face: PC

Mounting: Flush Mountable

Supplied Accessories: 2 Lock Nuts
