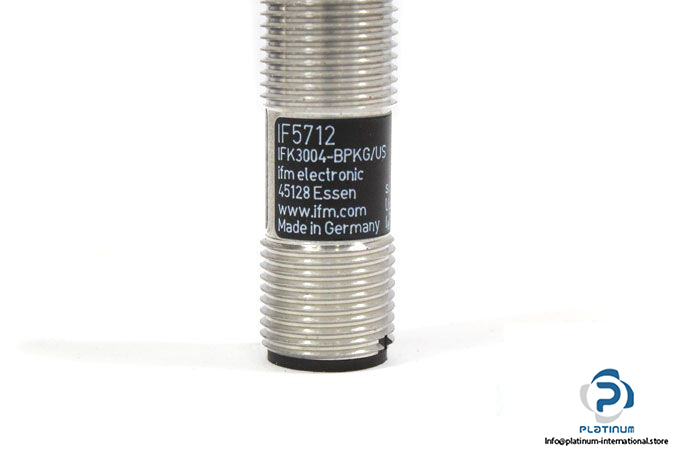

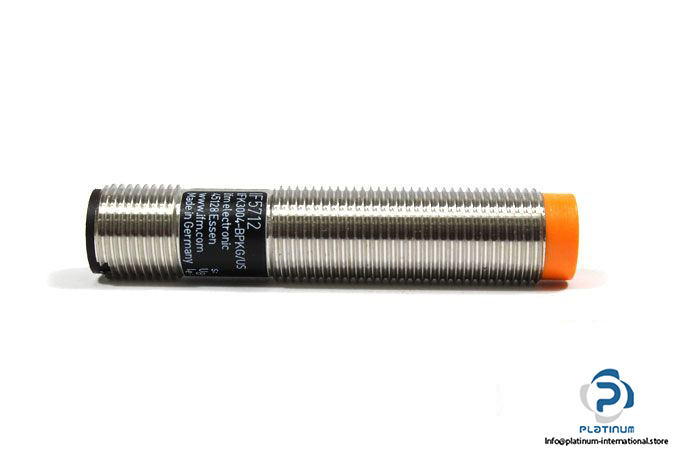

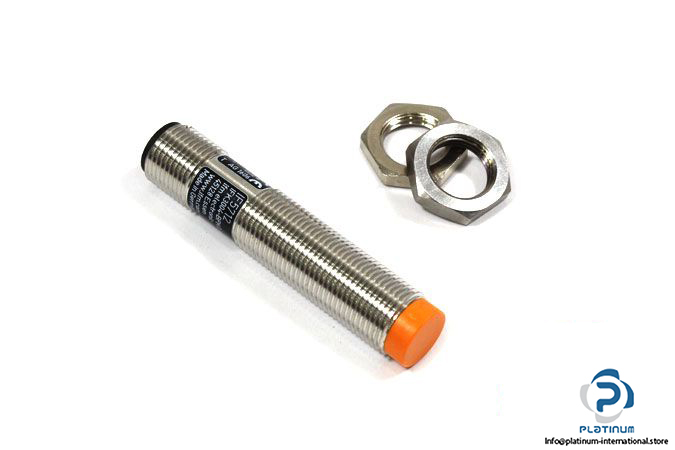

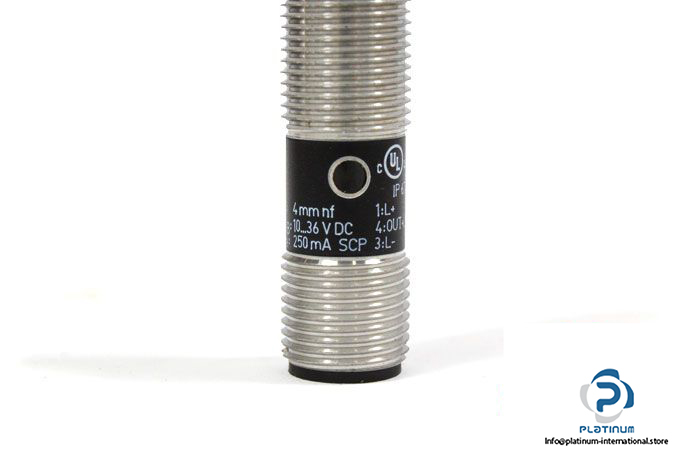

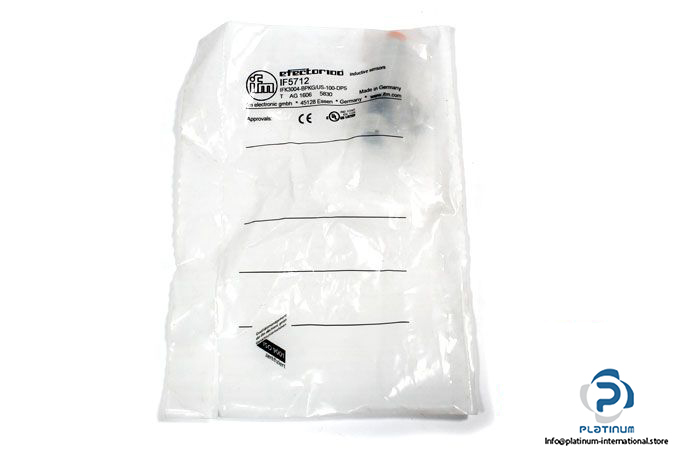

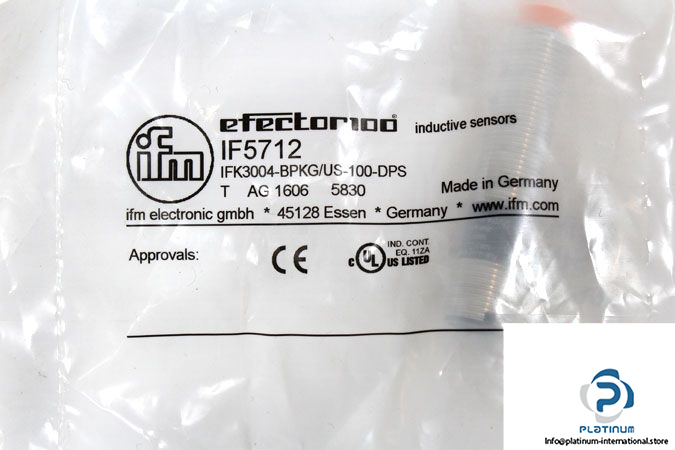

IFM IF5712 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No: IF5712

MRN: IFK3004-BPKG

Sensing Range: 4 mm

Operating Distance: 0 … 3.24 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Electrical Design: PNP

Switching Output: Normally Open

Switching Frequency: 1500 Hz

Connector Type: M12 Connector, 4-Pin

Protection Class: II

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 80°C

Diameter, Housing Length: 12, 60 mm

Housing Material: Brass White Bronze Coated

Sensing Face Material: PBT

Mounting: Non-Flush Mountable

Weight: 27 g
