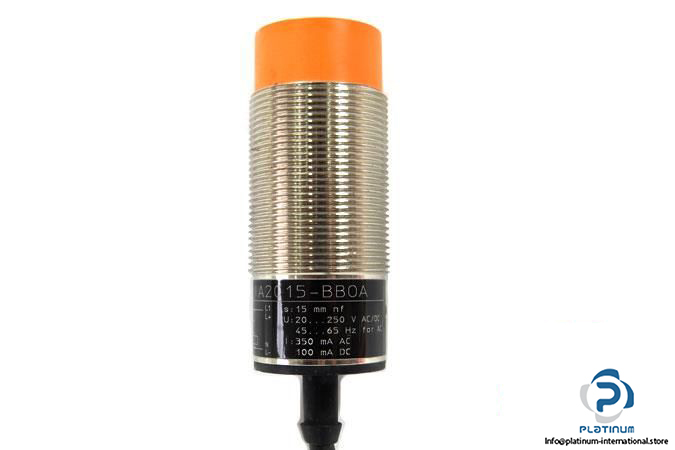

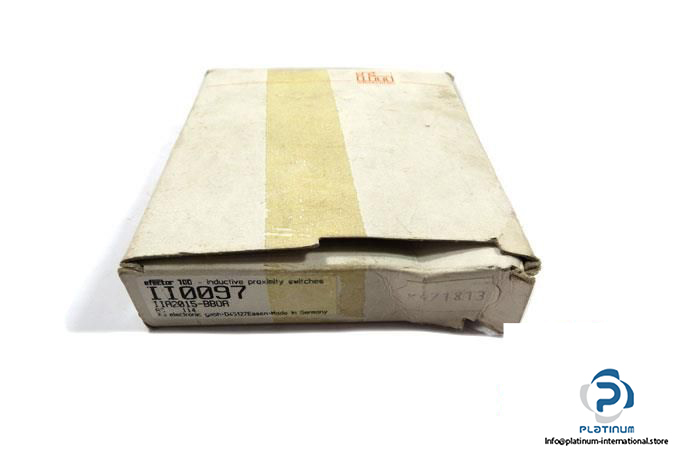

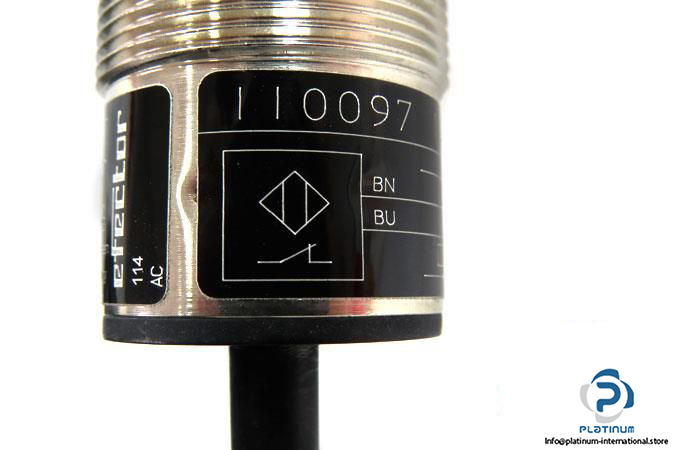

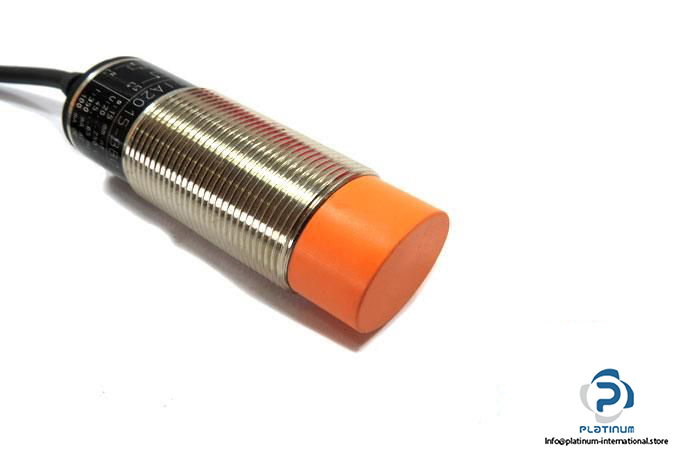

IFM II0097 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: II0097

MRN: IIA2015-BBOA

Sensing Range: 15mm

Real Sensing Range: 15 ± 10% mm

Operating Distance: 0 … 12.1 mm

Operating Voltage: 20 … 250 V AC/DC

Voltage Drop max (AC, DC): 6.5 V AC , 6 V DC

Switching output current (AC, DC): 250 mA AC, 100 mA DC

Switching frequency (AC, DC): 25, 50 Hz

Output Function: Normally Closed

Connector type, length: Cable, 2 m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 30 .81 mm

Material: Brass nickel-plated; sensing face: PBT

Mounting: Non-flush mountable

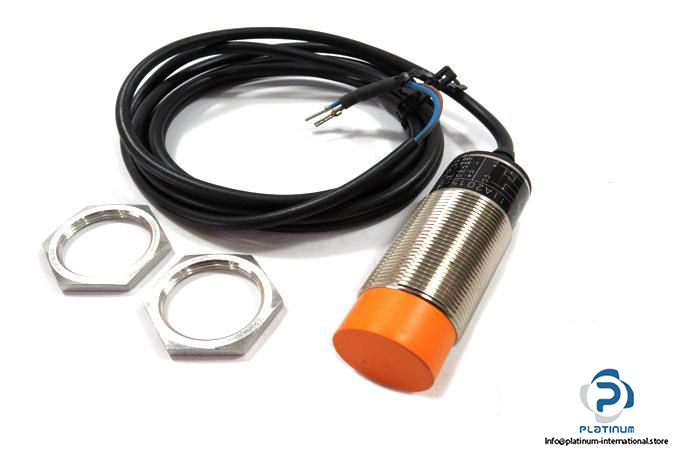

Supplied accessories: 2 lock nuts

Weight: 237 g

Condition: New
