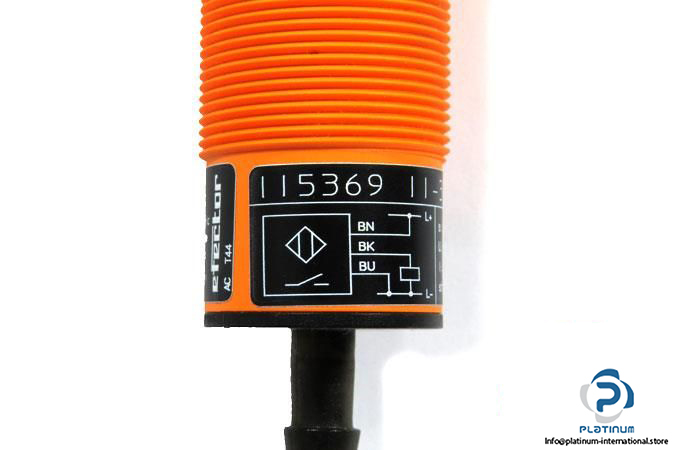

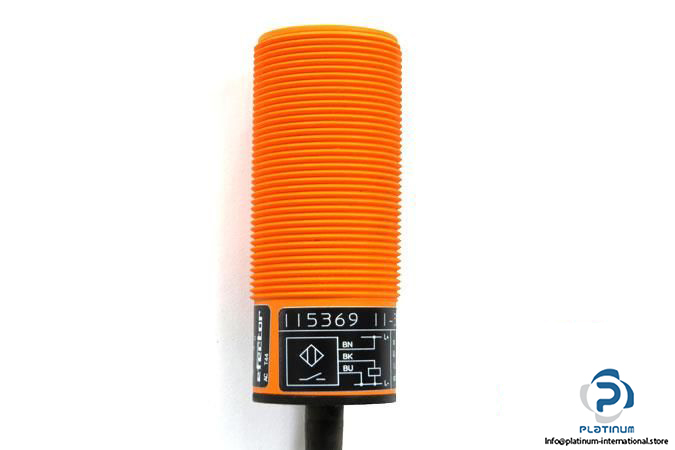

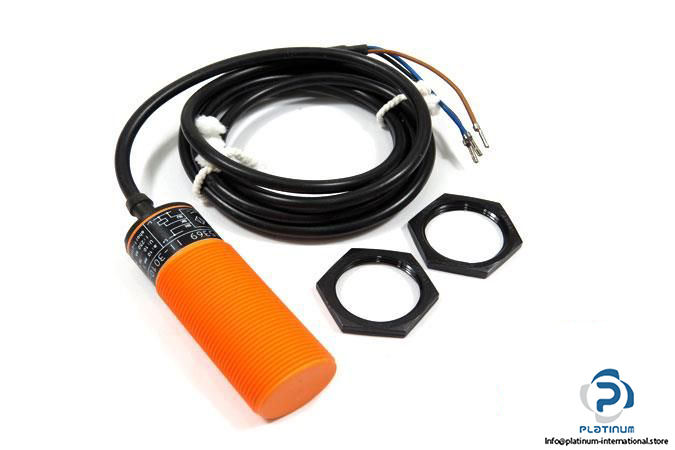

IFM II5369 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: II5369

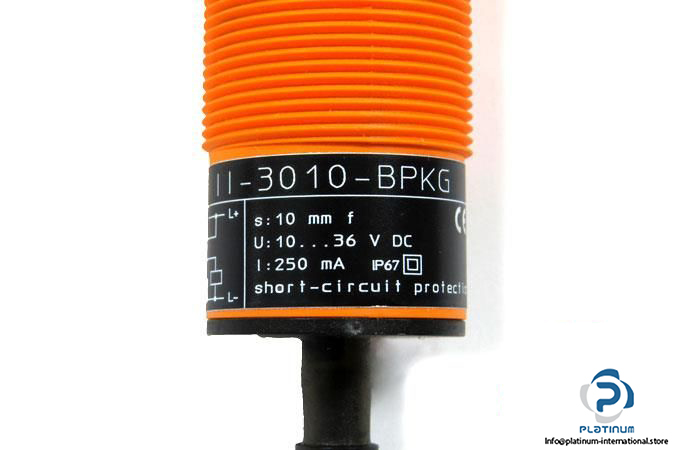

MRN: II-3010-BPKG

Sensing Range: 10 mm

Real Sensing Range: 10 ± 10% mm

Operating Distance: 0 … 8.1 mm

Operating Voltage: 10 … 36V DC

Switching Output Current: 250 mA DC

Switching frequency:  250 Hz

Electrical Design: PNP

Output Function: Normally Open

Connector Type, Length: PVC Cable, 2 m

Protection Class: II

Enclosure Rating: IP67

Housing: Threaded Type

Ambient Operating Temperature: -25 … 80°C

Diameter, Housing Length: 30 , 81 mm

Material: PBT

Mounting: Flush Mountable

Weight: 189 g
