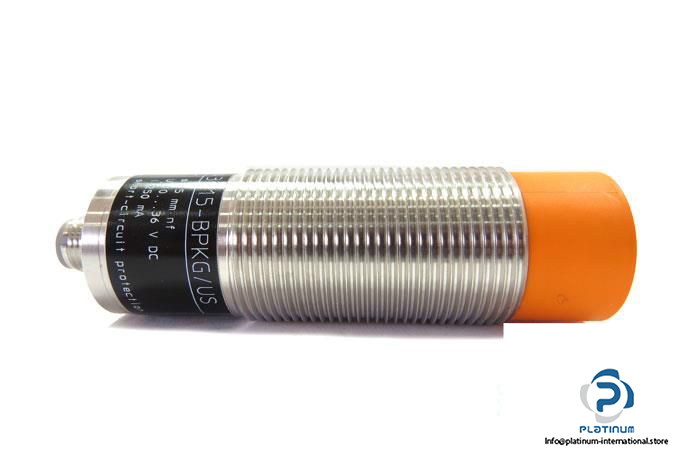

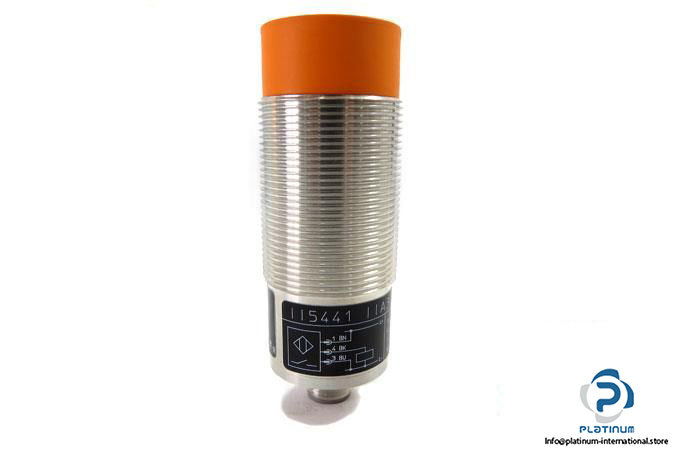

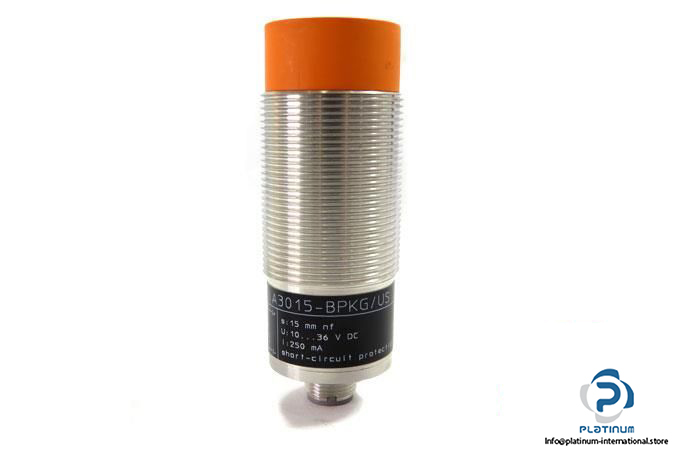

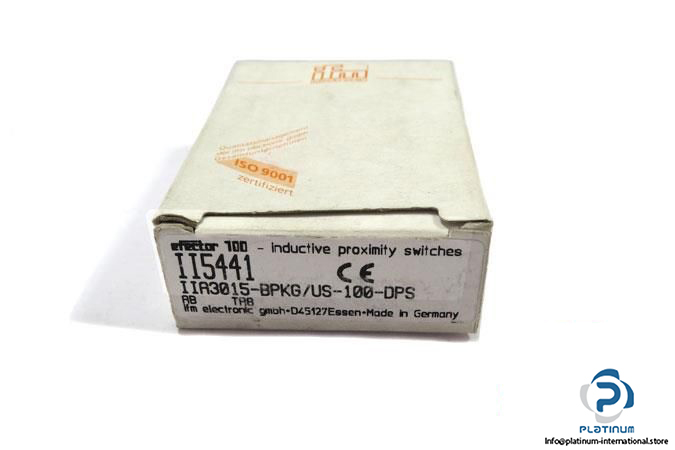

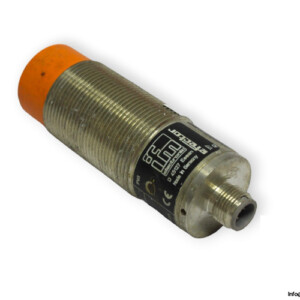

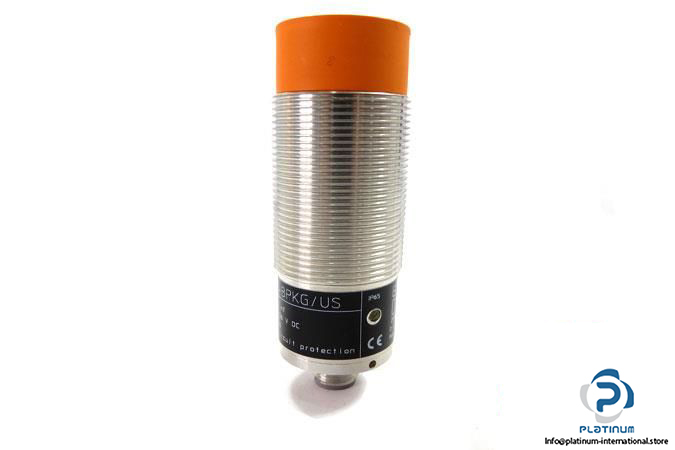

IFM II5441 Inductive Sensor

Manufacturer: IFM
Type: Inductive Sensor
Model: II5441
MRN: IIA3015-BPKG/US

Sensing Range: 15 mm
Real Sensing Range: 15 ± 10% mm
Operating Distance: 0 … 12.1 mm
Operating Voltage: 10 … 36 V DC
Switching output current: 0 … 12.1 mA DC
Switching frequency: 250 Hz
Electrical Design: PNP
Switching Output: Normally Open

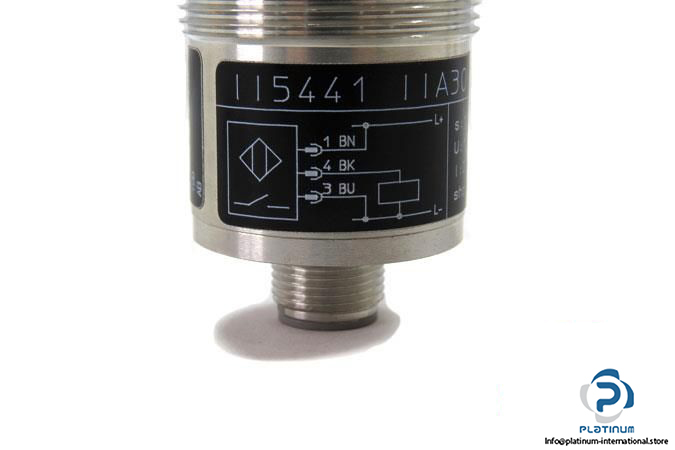

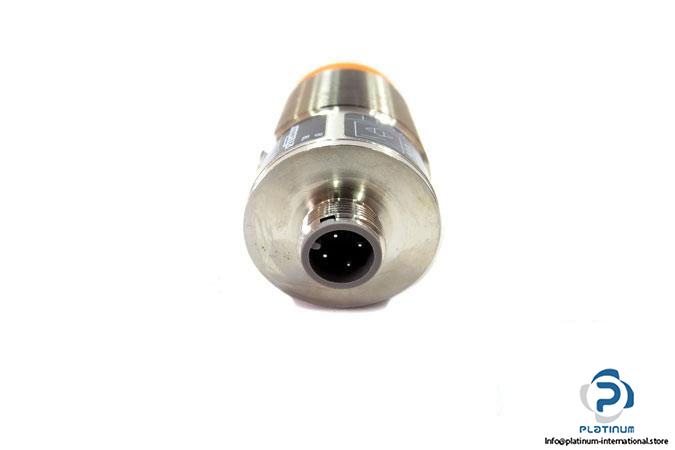

Connector type: M12,4-pin
Dimensions: M30,92 mm
Housing Material: brass white bronze coated; PBT
Operating Temperature: -25 … 80°C
Mounting: Non-flush mountable

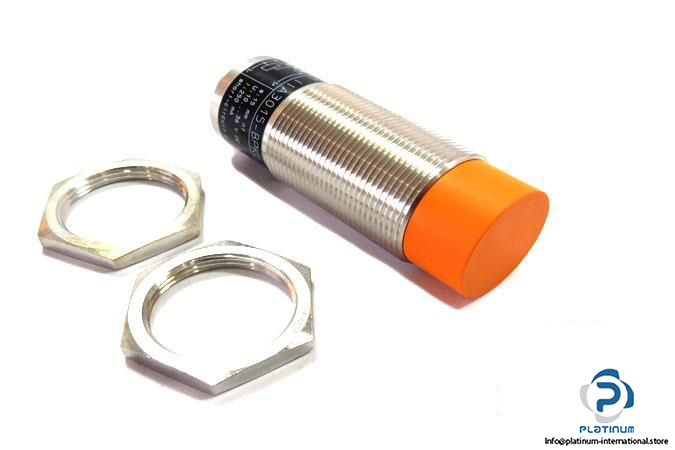

Supplied accessories: 2 lock nuts
Protection Class: II
Enclosure rating: IP67
