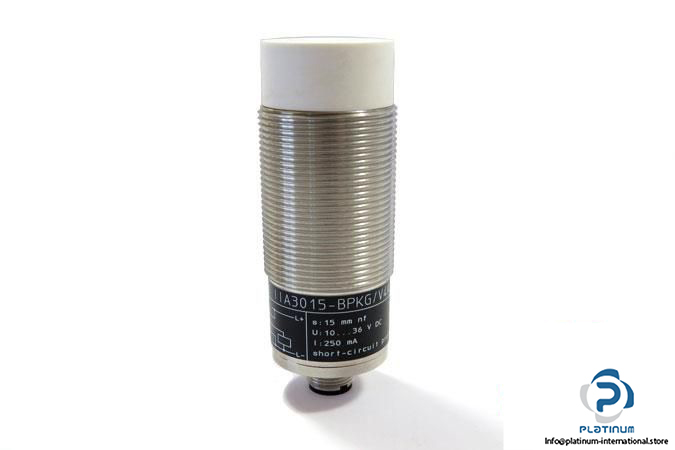

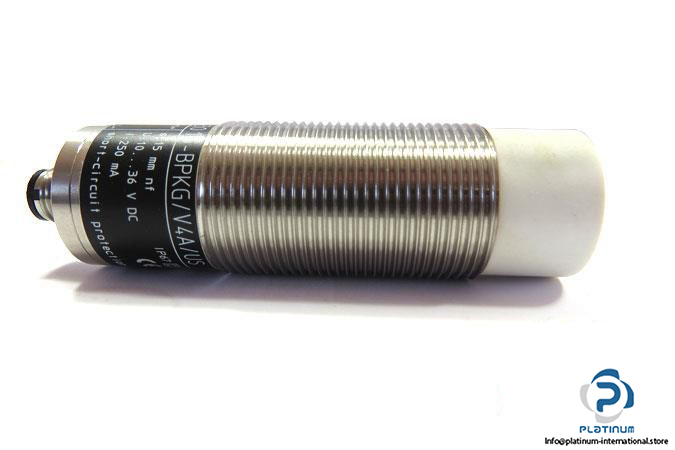

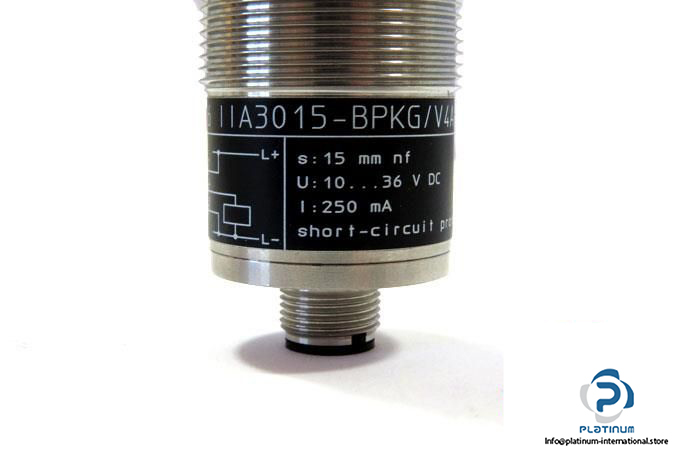

IFM II5776 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: II5776

MRN: IIA3015-BPKG/V4A/US-100-DPS

Sensing Range: 15 mm

Real Sensing Range: 15 ± 10% mm

Operating Distance: 0 … 12.1 mm

Operating Voltage: 10 … 36 V DC

Voltage Drop max.: 2.5 V

Switching output current: 250 mA DC

Current Consumption: 15 A

Switching frequency: 200 Hz

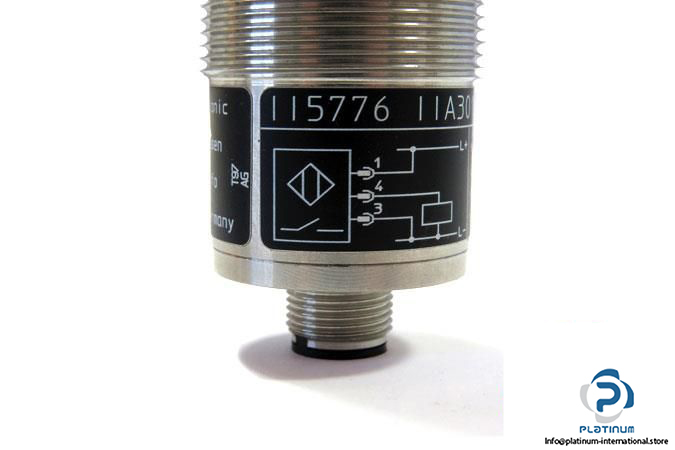

Electrical Design: PNP

Output Function: Normally open

Connector type: M12 Connector, 4 pin

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 30, 92mm

Material: stainless steel; sensing face: PBT

Mounting: Non- Flush mountable

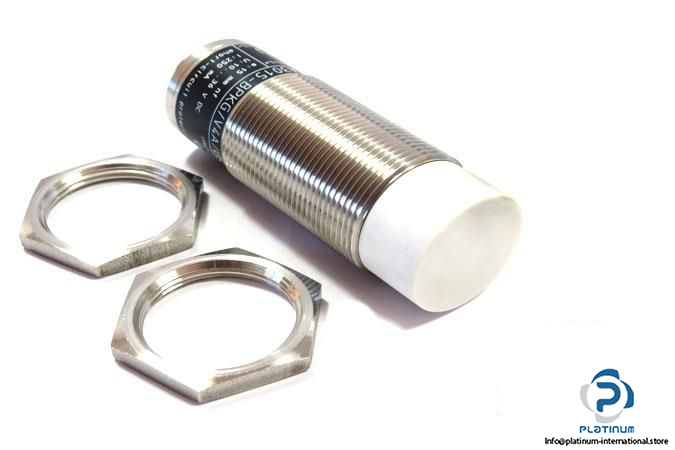

Supplied accessories: 2 lock nuts

Weight: 149.5 g

Condition: New
