IFM II5824 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: II5842

MRN: IIA3015-APKG/US

Sensing Range: 15 mm

Real Sensing Range: 15 ± 10% mm

Operating Distance: 0 … 12.1 mm

Operating Voltage: 10 … 36 V DC

Voltage Drop max.: 2.5 V DC

Switching output current: 250 mA DC

Switching frequency: 200 Hz

Electrical Design: PNP

Output Function: Normally closed

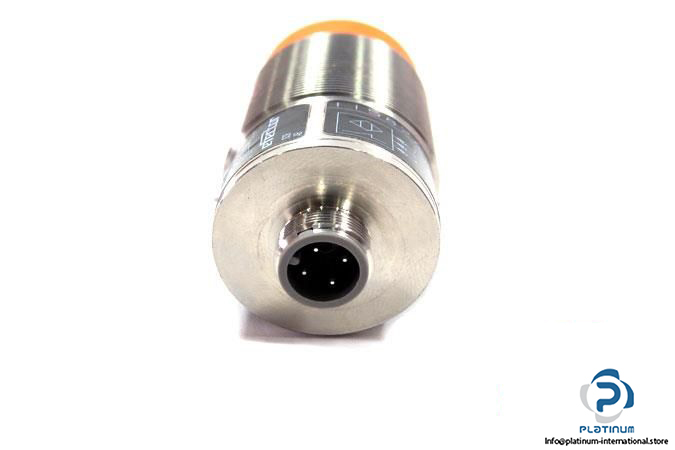

Connector type: M12 Connector, 4 pin

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80°C

Diameter: 30, 78 mm

Material: Brass white bronze coated; active face: PC

Mounting: Non-flush mountable

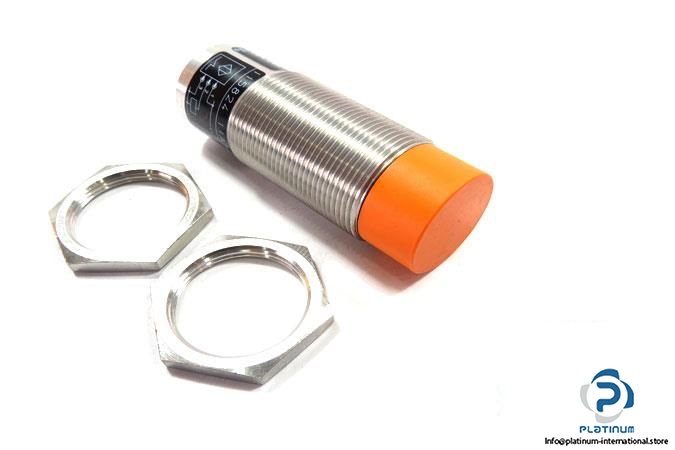

Supplied accessories: 2 lock nuts

Weight: 155 g

Condition: New
