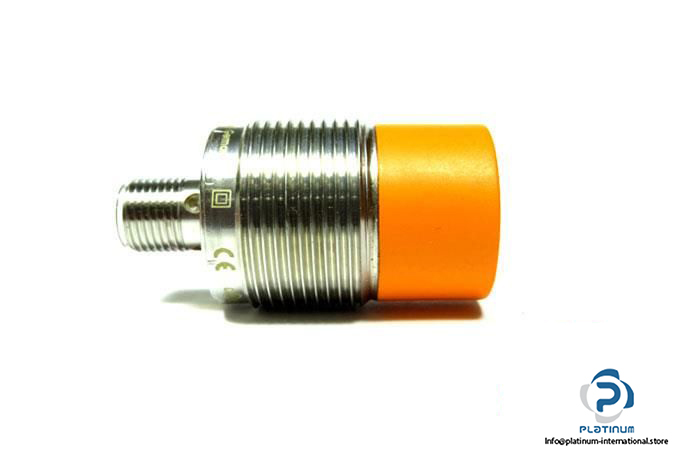

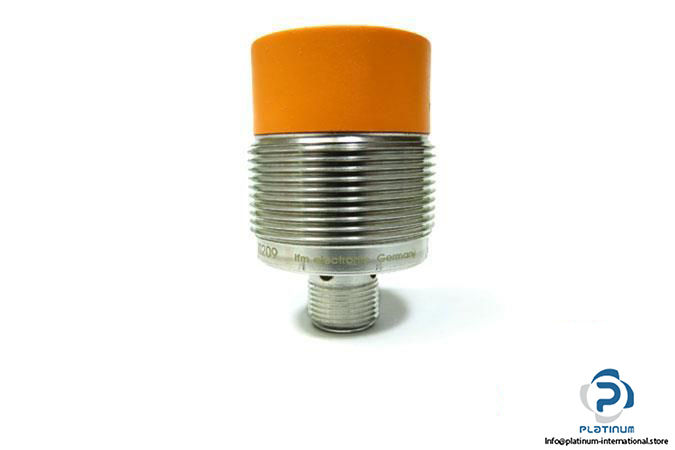

IFM IIS209 Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IIS209

MRN: IB3022-APKG/US

Sensing Range: 22 mm

Real Sensing Range: 22 ± 10 % mm

Operating Distance: 0 … 17.82 mm

Operating Voltage: 10 … 30 V DC

Voltage drop max.: 2.5 V DC

Switching output current: 100 mA DC

Current Consumption: 10 mA

Switching frequency: 100 Hz DC

Electrical Design: PNP

Output Function: Normally Closed

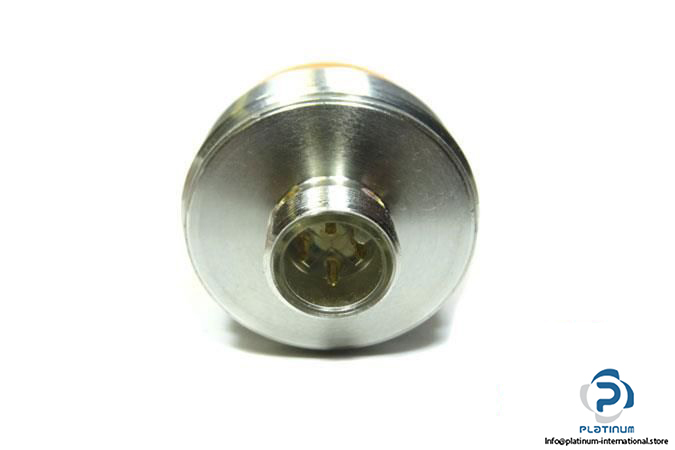

Connector type: M12 Connector, gold plated contacts

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 70°C

Diameter, Housing length: 30, 50 mm

Material: Brass white bronze coated; sensing face: PBT orange

Mounting: Non-Flush mountable

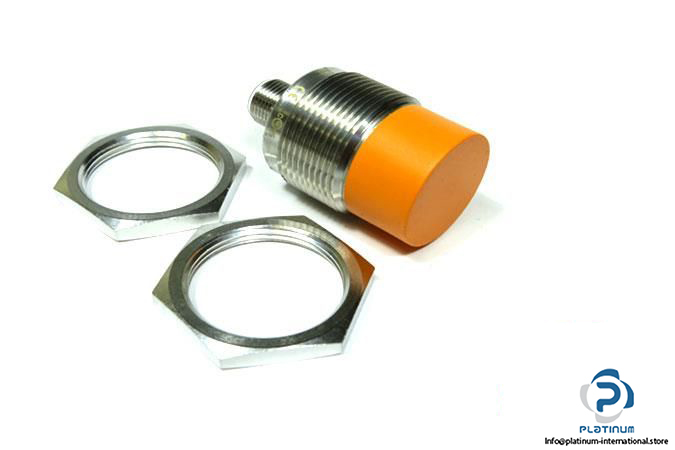

Supplied accessories: 2 lock nuts

Weight: 98 g

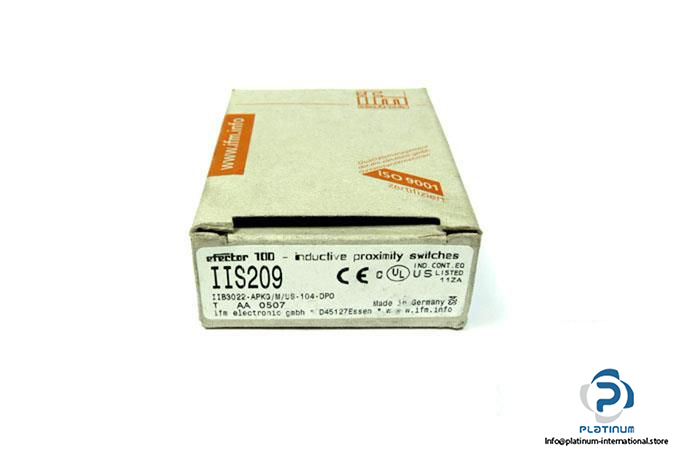

Condition: New
