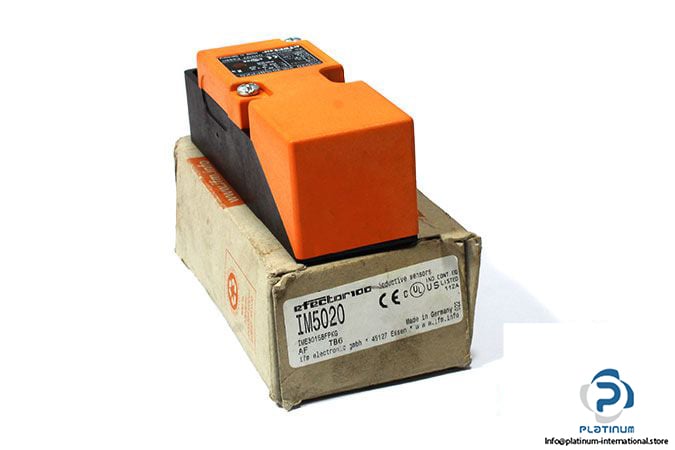

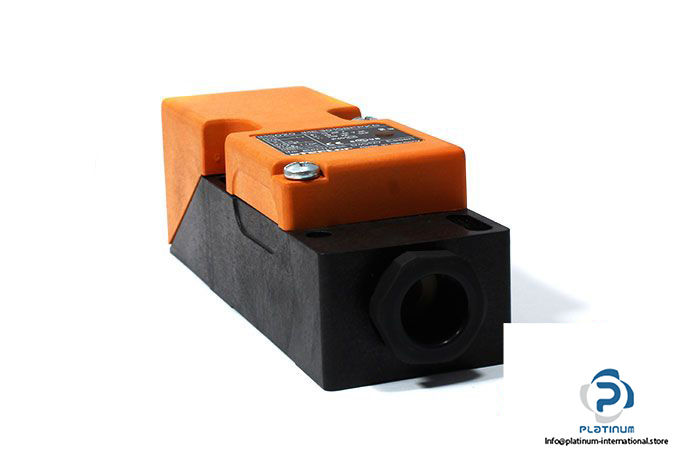

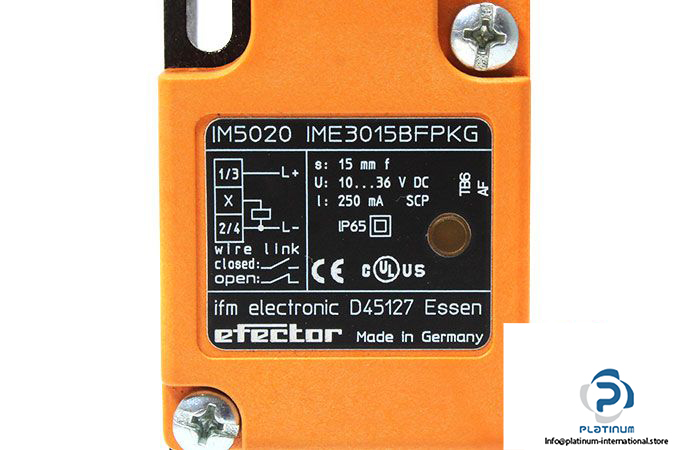

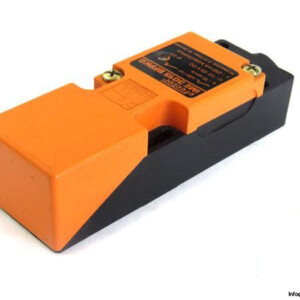

IFM IM5020 Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IM5020

MRN: IME3015BFPKG

Sensing Range: 15 mm

Operating Distance: 0 … 12.1

Operating Voltage: 10 … 55 V DC

Voltage Drop Max.: 2.5 V

Switching Output Current: 250 mA DC

Switching frequency: 350 Hz

Electrical Design: PNP

Output Function: Normally Open/Normally Closed

Connector Type: Cable Gland: M20 X 1.5

Protection Class: II

Enclosure Rating: IP67

Housing: Rectangular

Ambient Operating Temperature: -25 … 80 °C

Dimensions: 40 x 40 x 120 mm

Material: PPE

Mounting: Flush Mountable

Weight: 0.2 kg
