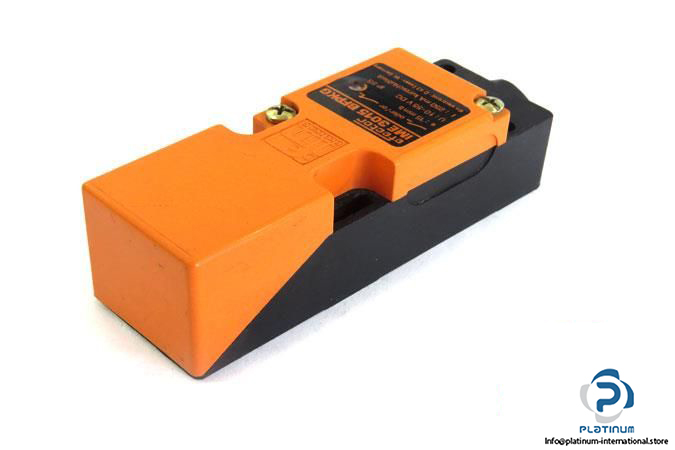

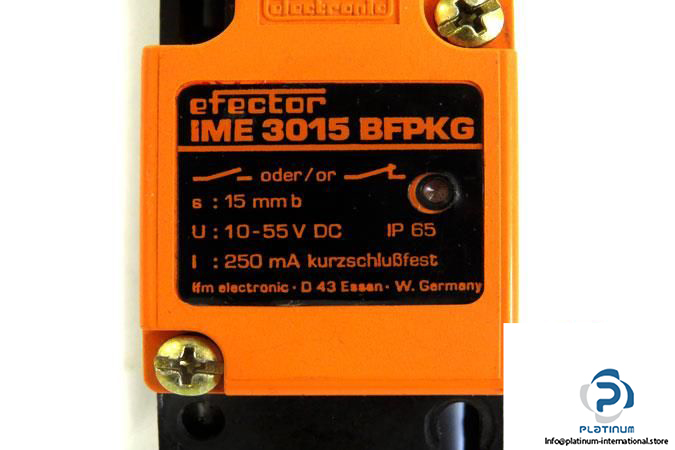

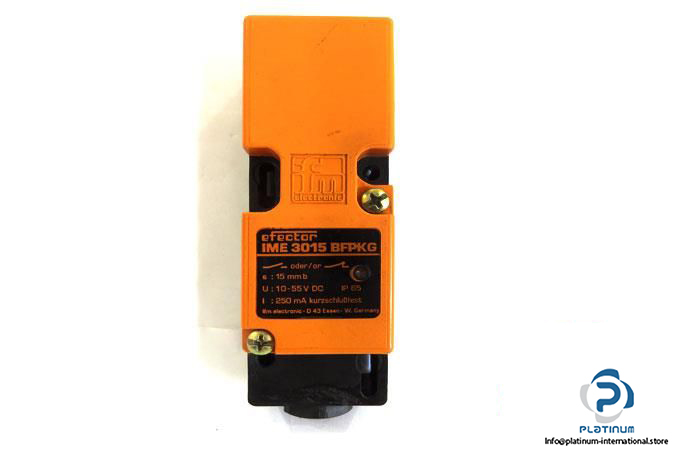

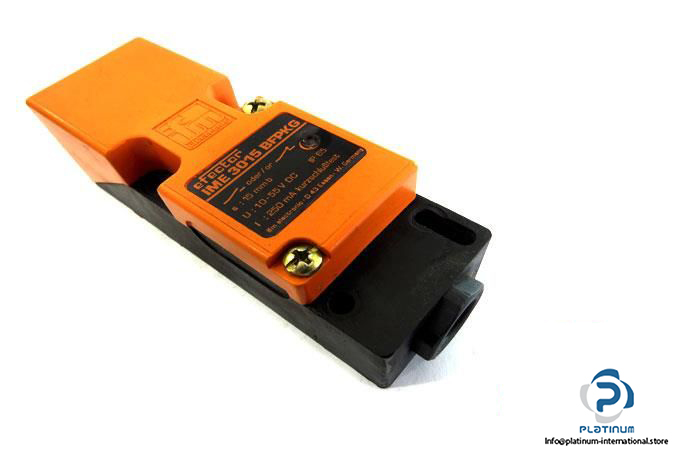

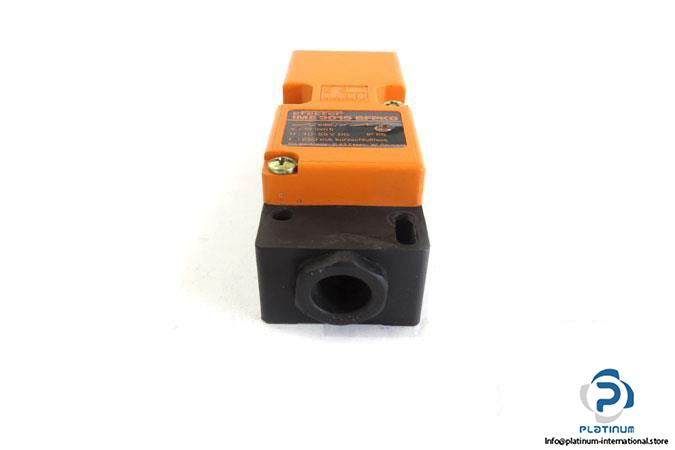

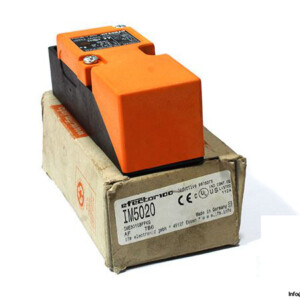

IFM IM5020 Inductive Sensor
Manufacturer: IFM
Type: INDUCTIVE SENSOR
Part No.: IM5020
MRN: IME3015BFPKG
Sensing Range: 15 mm
Operating Distance: 0 … 12.1
Operating Voltage: 10 … 55 V DC
Voltage Drop Max.: 2.5 V
Switching Output Current: 250 mA DC
Switching Frequency: 350 Hz
Electrical Design: PNP
Output Function: Normally Open/Normally Closed
Connector Type: Cable Gland: M20 X 1.5
Protection Class: II
Enclosure Rating: IP67
Housing: Rectangular
Ambient Operating Temperature: -25 … 80°C
Dimensions: 40 x40 x120 mm
Material: PPE
Mounting: Flush Mountable
Weight: 0.17 kg
