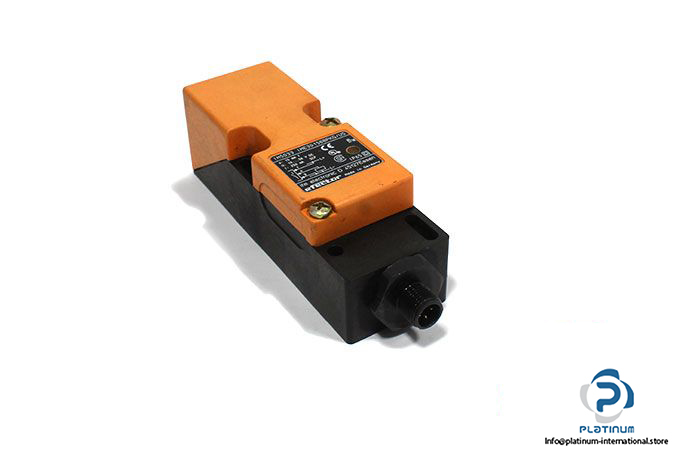

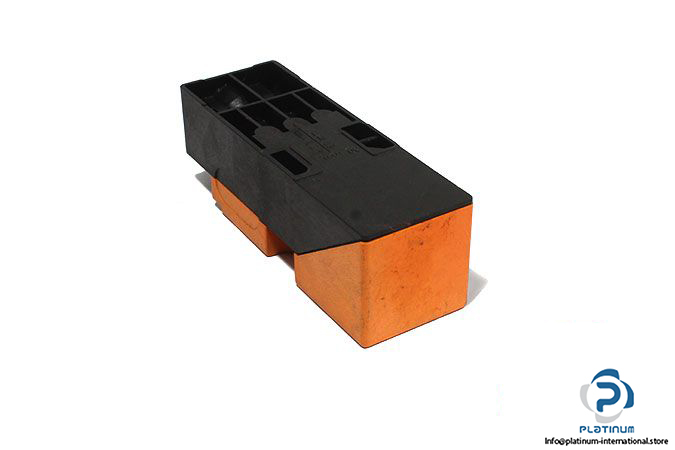

IFM IM5033 Inductive Sensor

Manufacturer: IFM

Type: Inductive Sensor

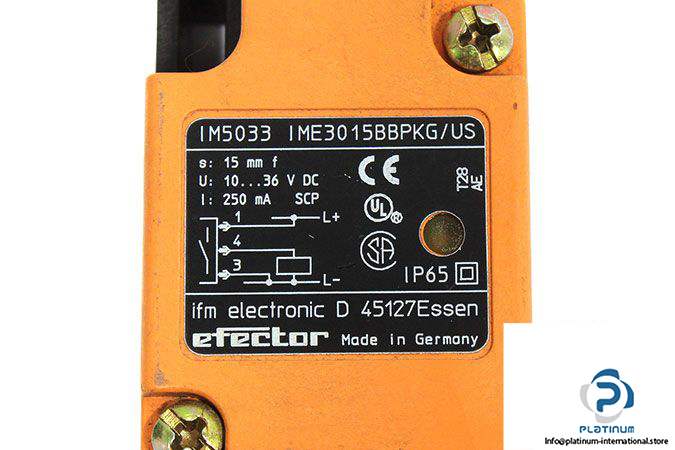

Part No.: IM5033

MRN: IME3015BBPKG/US-100-DPS

Sensing Range: 15 mm

Real Sensing Range: 15 ± 10 % mm

Operating Distance: 0 … 12.1 mm

Operating Voltage: 10 … 36 V DC

Current Consumption: 15 mA

Voltage Drop Max.: 2.5 V DC

Switching Frequency DC: 250 Hz

Switching Output Current: 250 mA DC

Electrical Design: PNP

Output Function: Normally Open

Protection Class: II

Enclosure Rating: IP65

Housing:  Rectangular

Electrical Connection: Connector: 1 x M12, 4-Pin

Ambient Operating Temperature: -25 … 80 °C

Dimensions: 40 x 40 x 120 mm

Material: PPE

Mounting: Flush Mountable

Weight: 0.18 kg
