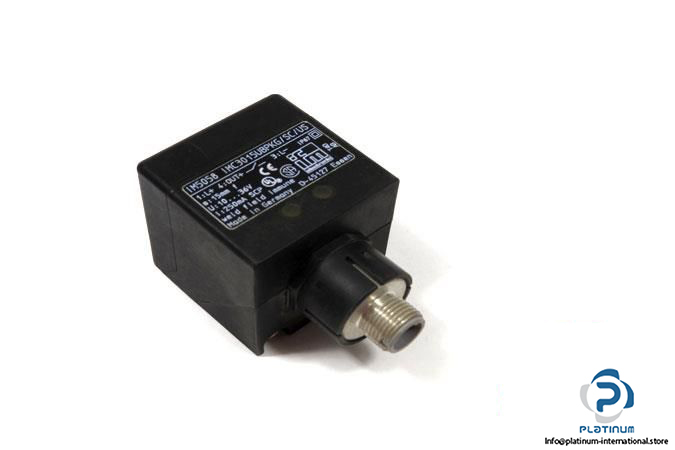

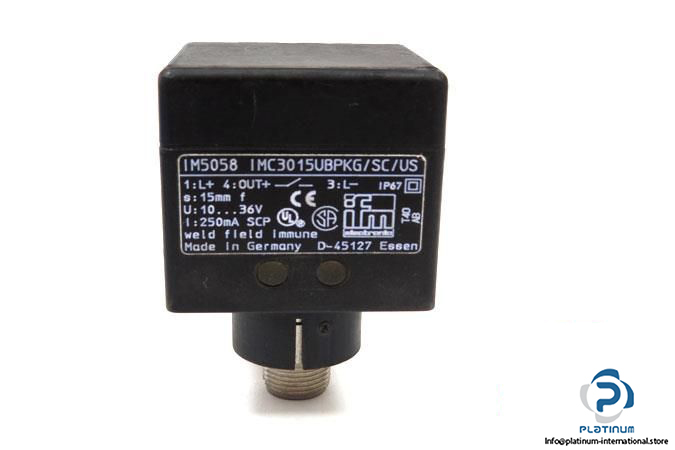

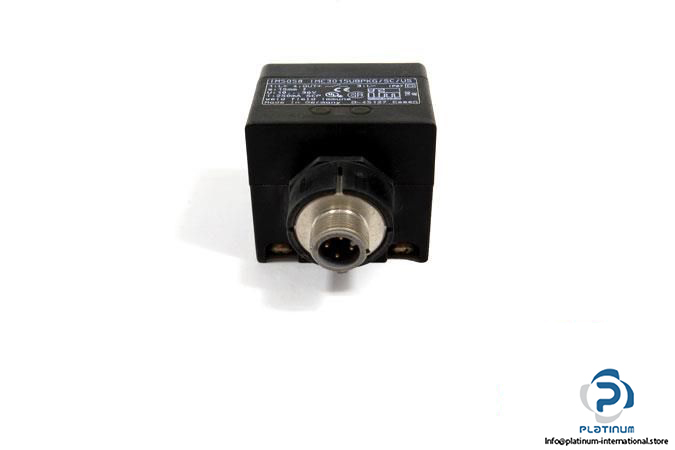

IFM IM5058 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IM5058

MRN: IMC3015UBPKG/SC/US

Sensing Range: 15 mm

Real Sensing Range: 15 ± 10% mm

Operating Distance: 0 … 12.1 mm

Operating Voltage: 10 … 36 V DC

Switching output current: 250 mA DC

Switching frequency: 300 Hz

Electrical design: PNP

Output Function: Normally open

Connector type, length: M12 Connector, 4-pin

Protection Class: II

Enclosure rating: IP67

Housing: Rectangular

Ambient Operating temperature: -25 … 70°C

Dimensions: 40 x 40 x 66 mm

Material: Housing: PBT

Mounting: Flush-mountable

Condition: Used
