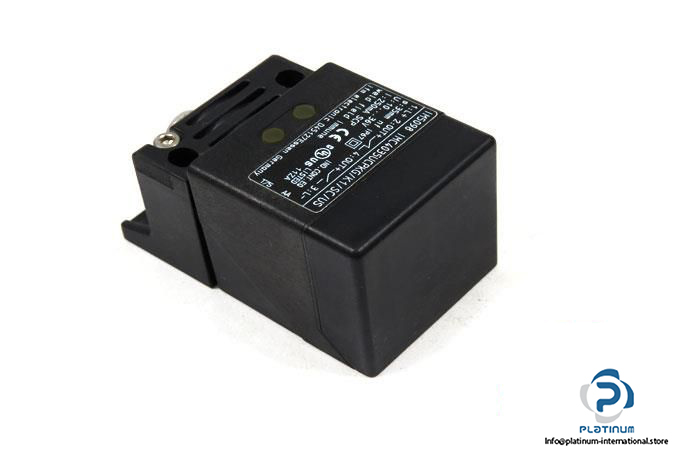

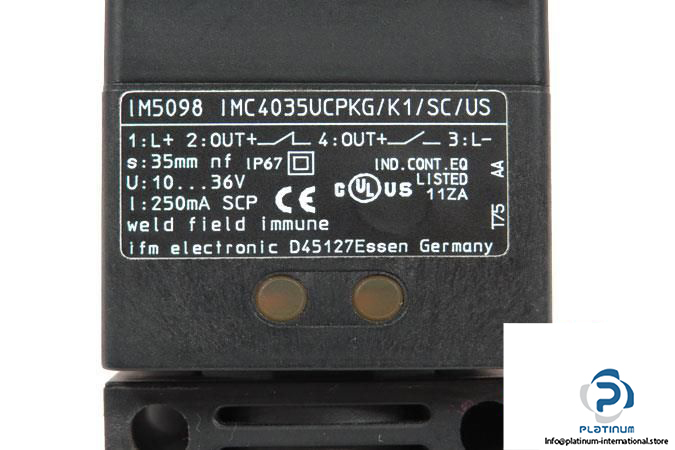

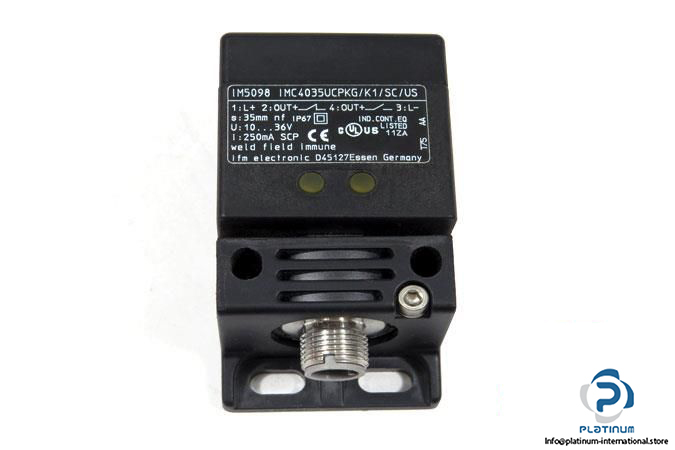

IFM IM5098 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IM5098

MRN: IMC4035UCPKG/K1/SC/US

Sensing Range: 35 mm

Real Sensing Range: 35 ± 10% mm

Operating Distance: 0 … 28.3 mm

Operating Voltage: 10 … 36 V DC

Voltage Drop max.: 2.5 V DC

Switching output current: 250 mA DC

Switching frequency: 250 Hz

Electrical Design: PNP

Output Function: Complementary

Connector type: M12 Connector, 4 pin

Protection Class: II

Enclosure rating: IP67

Housing: Rectangular

Ambient Operating temperature: -25 … 70°C

Dimensions: 40 x40 x 66 mm

Material: Housing:: PPE

Mounting: Non-flush mountable

Weight: 142 g

Condition: New
