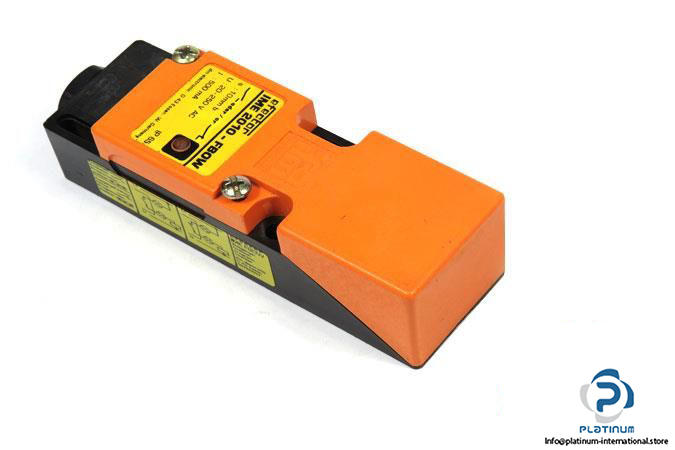

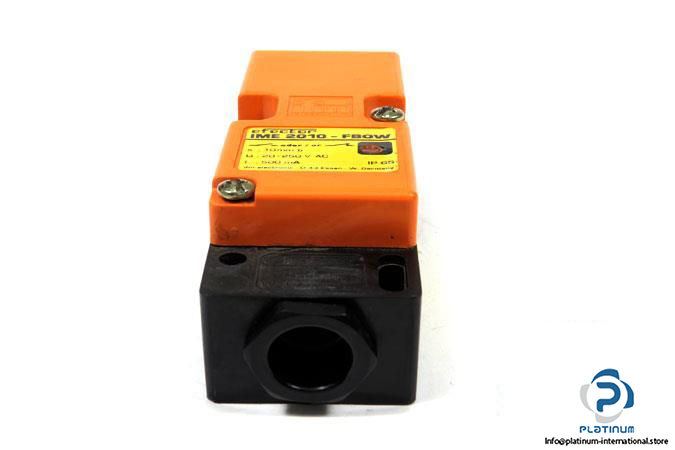

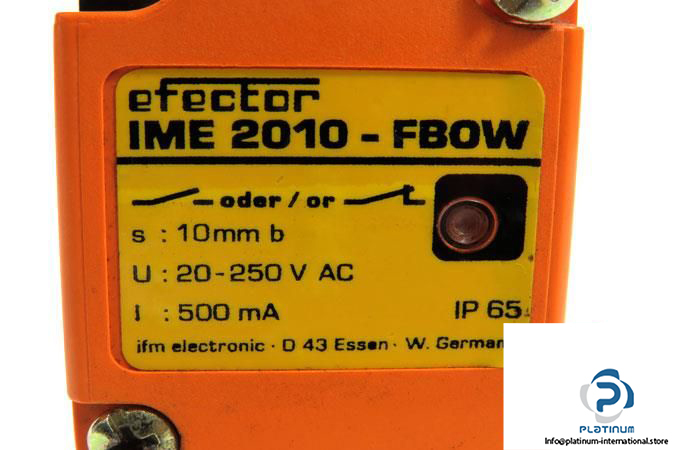

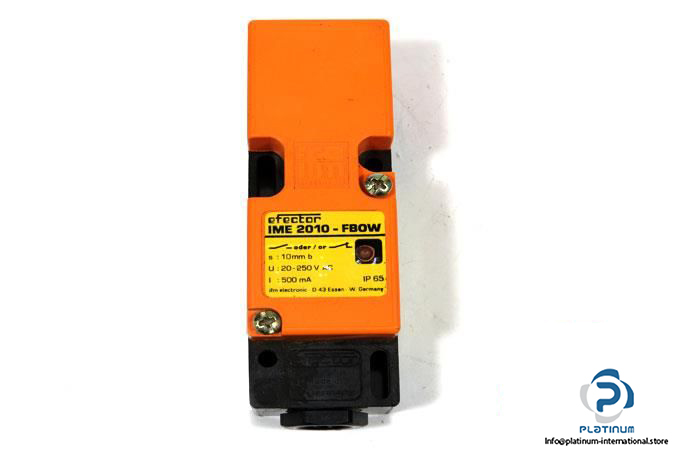

IFM IME2010-FBOW Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

MRN: IME2010-FBOW

Sensing Range: 10 mm

Real Sensing Range: 10 ± 10% mm

Operating Distance: 0 … 8.1 mm

Operating Voltage: 20 … 250 V AC ,AT 47 … 65 Hz

Switching output current: 500 mA AC

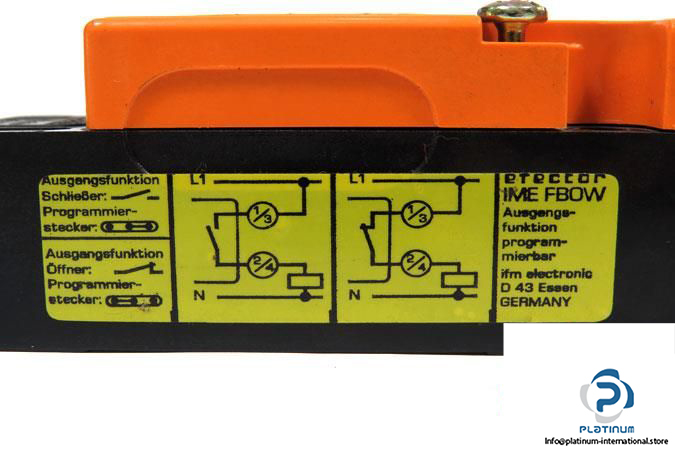

Output Function: Normally open/Normally Closed

Connector type: Cable gland: M20 X 1.5

Protection Class: II

Enclosure rating: IP65

Housing: Rectangular

Ambient Operating temperature: -25 … 80°C

Dimensions: 40 x 40 x 114 mm

Material: PBT

Condition: Used
