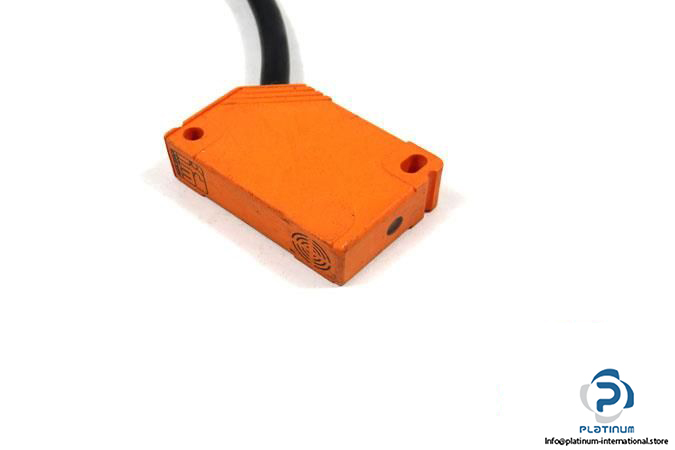

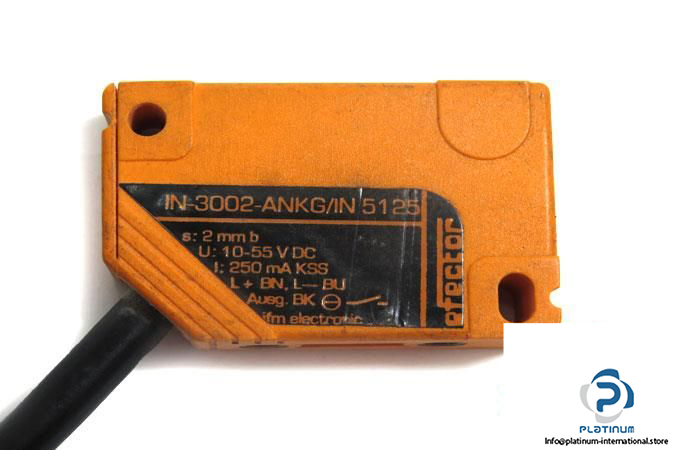

IFM IN5125 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IN5125

MRN: IN-3002-ANKG

Sensing Range: 2 mm

Real Sensing Range: 2 ± 10% mm

Operating Distance: 1.5 mm

Operating Voltage: 10 … 55 V DC

Switching output current: 250 mA DC

Switching frequency: 1400 Hz

Electrical design: NPN

Output Function: Normally open

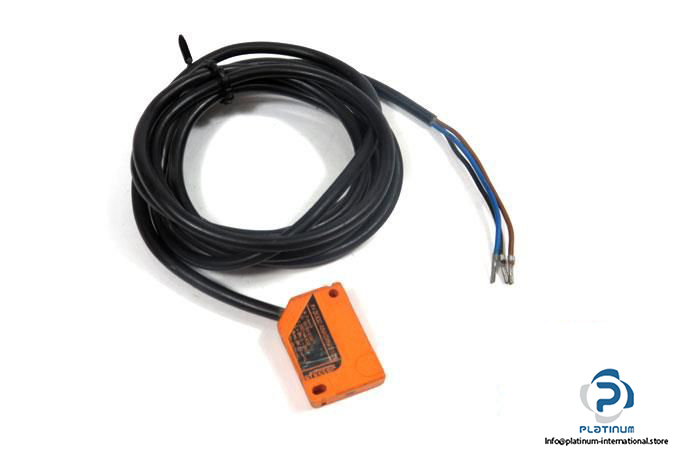

Connector type, length: PVC Cable, 2 m

Protection Class: II

Enclosure rating: IP67

Housing: Rectangular

Ambient Operating temperature:-25 … 80°C

Dimensions: 40 x 12 x 26 mm

Material: PBT

Mounting: Flush mountable

Weight: 112.2 g

Condition: Used
