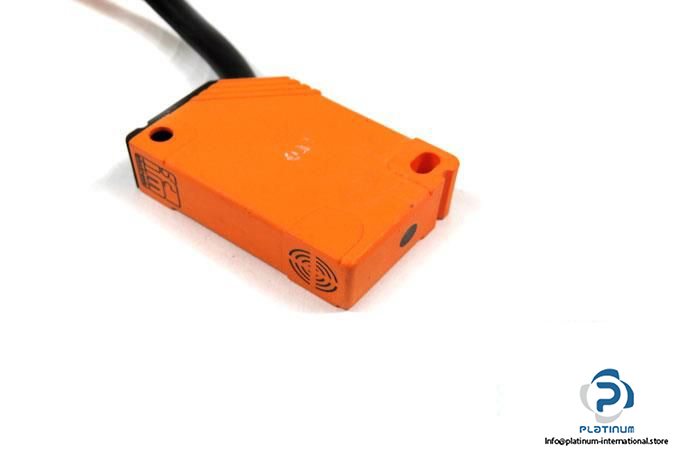

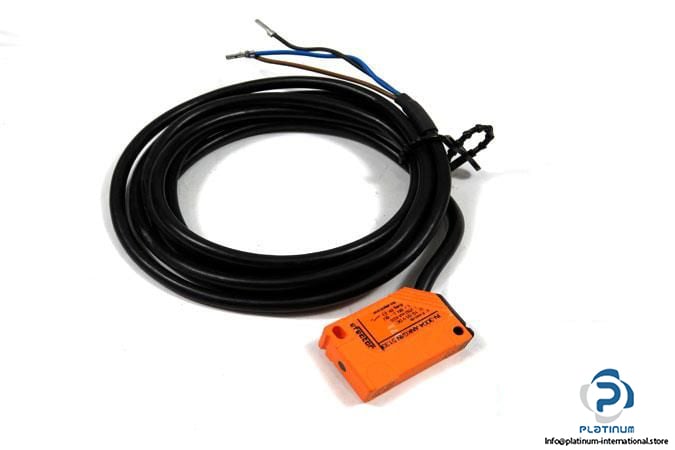

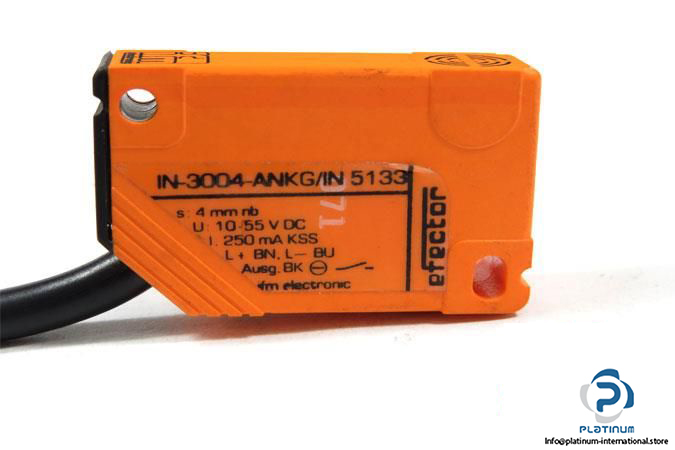

IFM IN5133 IN-3004-ANKG Inductive Sensor

Manufacturer: ifm

Type: INDDDUCTIVE SENSOR

Part No.: IN5133

MRN: IN-3004-ANKG

Sensing Range: 4 mm

Real Sensing Range: 4 ± 10% mm

Operating Distance: 0 … 3.25 mm

Operating Voltage: 10 … 55 V DC

Voltage Drop max.: 2.5 V DC

Switching output current: 250 mA DC

Switching frequency:  1300 Hz

Electrical Design: NPN

Output Function: Normally open

Connector type, length: PVC Cable, 2 m

Protection Class: II

Enclosure rating: IP67

Housing: Rectangular

Ambient Operating temperature:-25 … 80 °C

Dimensions: 40 x 12 x 26 mm

Material: PBT

Mounting: Non-flush mountable

Weight: 112.9 g

Condition: New
