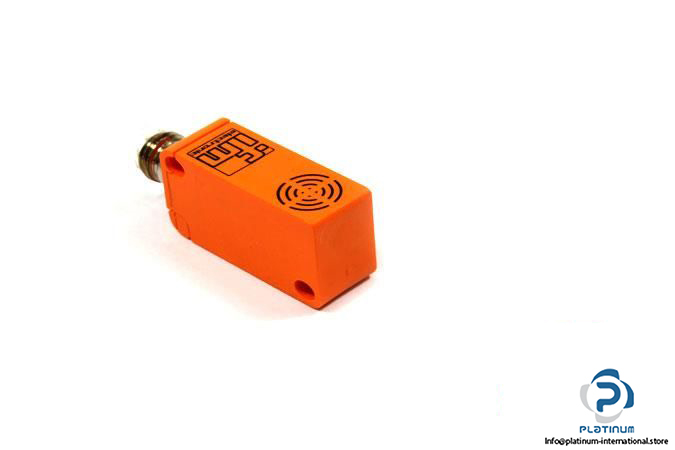

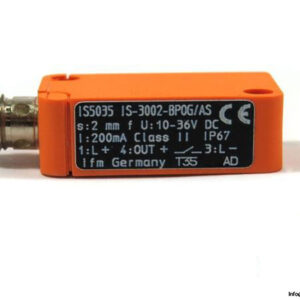

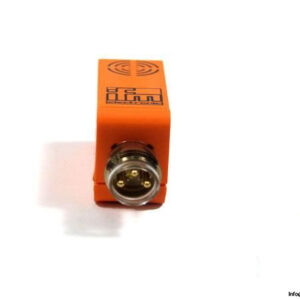

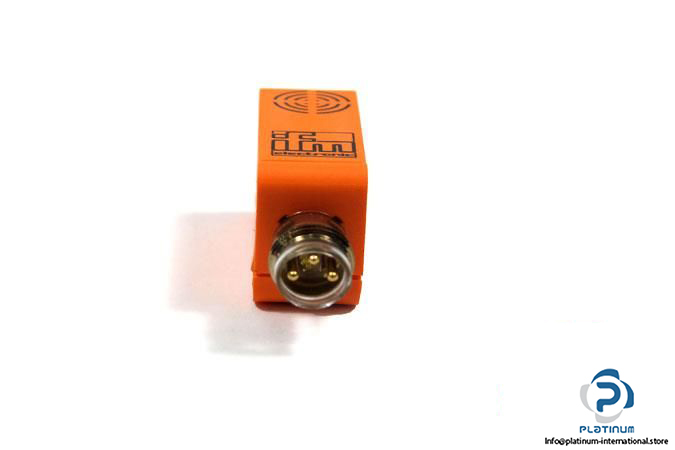

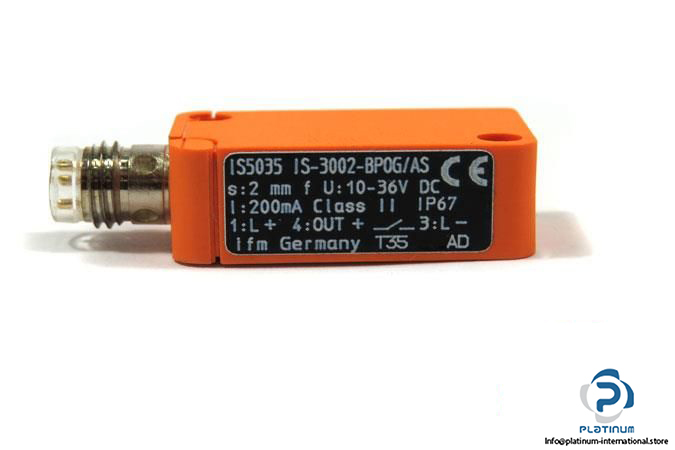

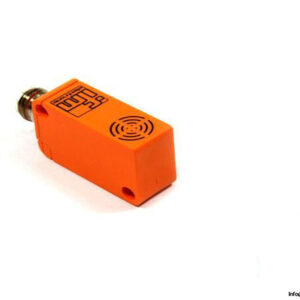

IFM IS5035 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IS5035

MRN: IS-3002-BPOG/AS

Sensing Range: 2 mm

Real Sensing Range: 2 ± 10% mm

Operating Distance: 0 … 1.6 mm

Operating Voltage: 10 … 36 V DC

Switching Output Current: 200 mA DC

Switching Frequency: 800 Hz

Electrical Design: PNP

Output Function: Normally Open

Connector Type: M8 Connector, 3- pin

Protection Class: III

Enclosure Rating: IP67

Housing: Rectangular

Ambient Operating Temperature: -25 … 80°C

Dimensions: 28 x 10 x 16 mm

Material: PBT

Mounting: Flush-mountable

Weight: 7 g
