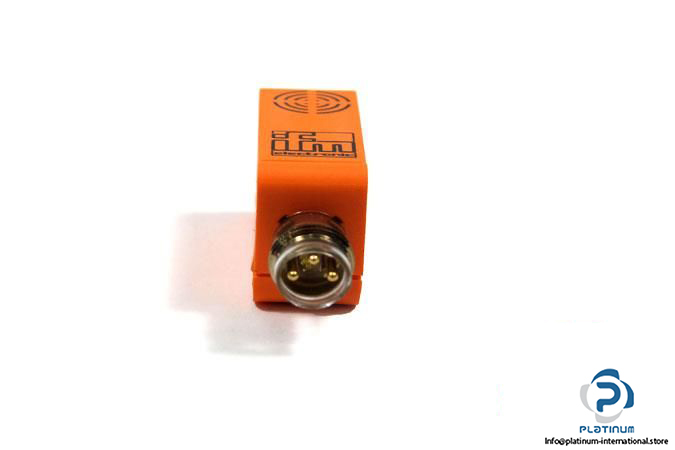

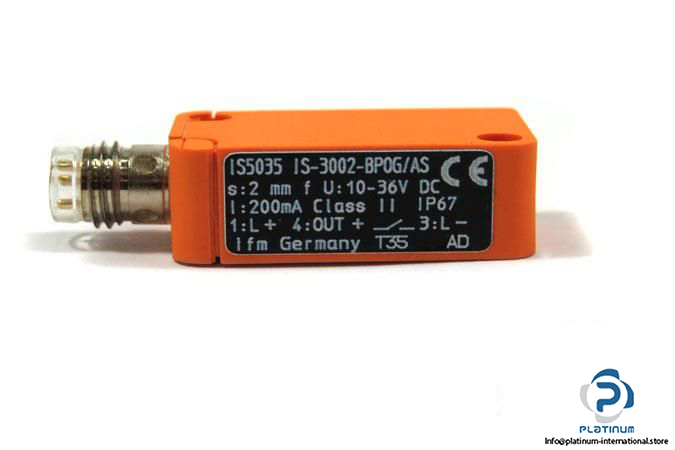

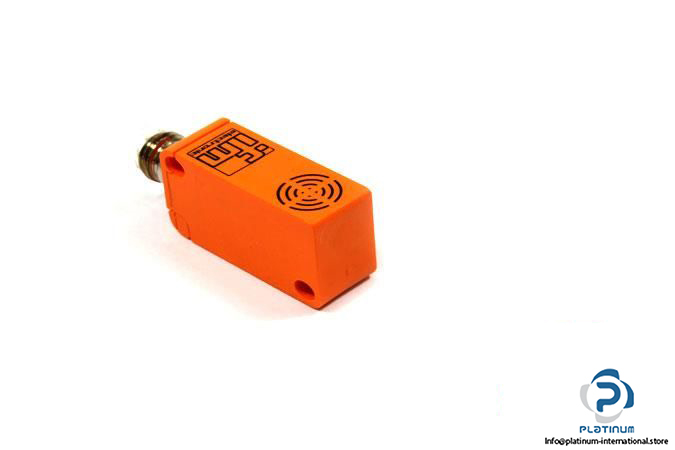

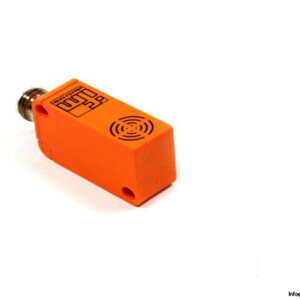

IFM IS5035 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IS5035

MRN: IS-3002-BPOG/AS

Sensing Range: 2 mm

Real Sensing Range: 2 ± 10% mm

Operating Distance: 0 … 1.6 mm

Operating Voltage: 10 … 36 V DC

Switching output current: 200 mA DC

Switching frequency: 800 Hz

Electrical design: PNP

Output Function: Normally open

Connector type: M8 Connector,3- pin

Protection Class: III

Enclosure rating: IP67

Housing: Rectangular

Ambient Operating temperature: -25 … 80°C

Dimensions: 28 x 10 x 16 mm

Material: PBT

Mounting: Flush-mountable

Weight: 10.9 g
