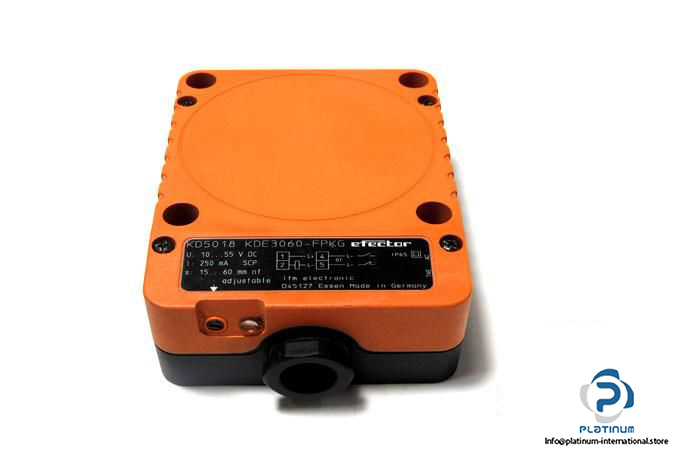

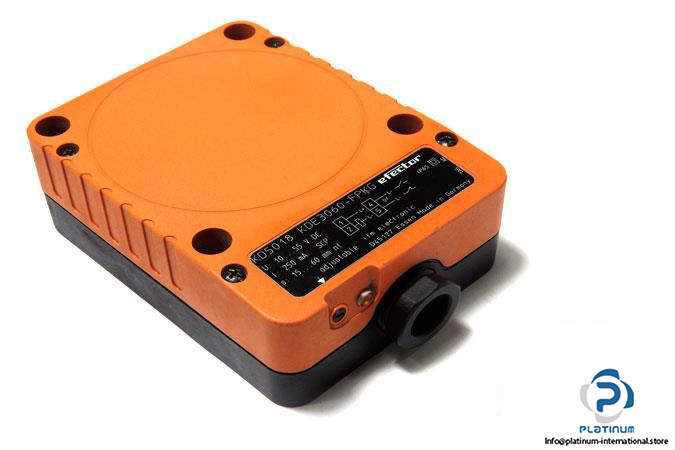

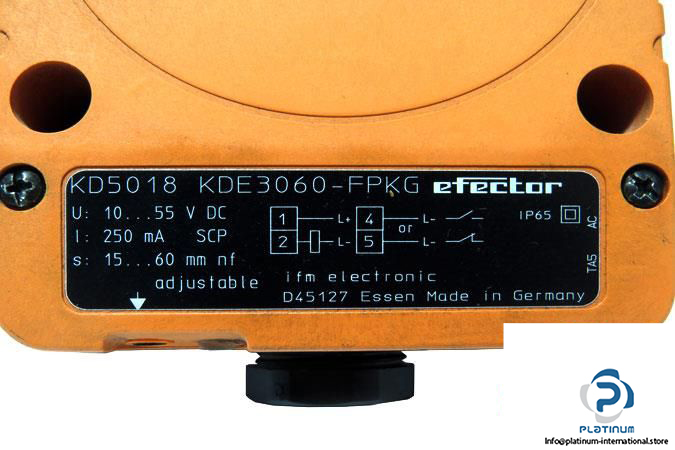

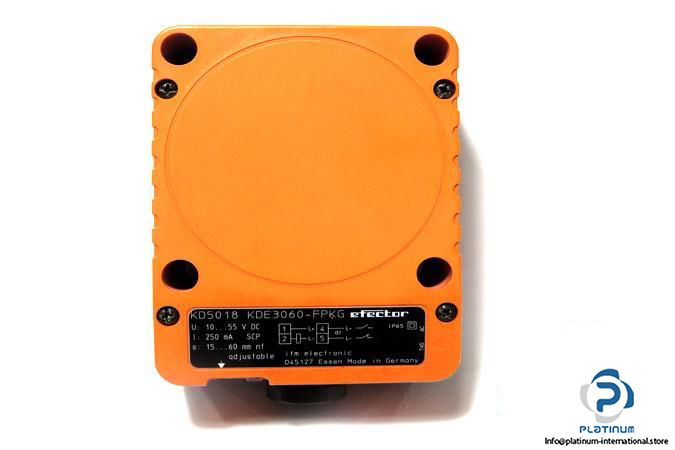

IFM KD5018 Capacitive Sensor

Manufacturer: ifm

Type: CAPACITIVE SENSOR

Part No.: KD5018

MRN: KDE3060-FPKG

Sensing Range: 15 … 60 mm

Real Sensing Range: 60 ± 10% mm

Operating Distance: 0 … 48.6 mm

Operating Voltage: 10 … 55 V DC

Voltage Drop max.: 2.5 V

Switching output current: 250 mA DC

Current Consumption: 15 mA

Switching frequency: 10 Hz

Electrical Design: PNP

Output Function: Normally open/normally closed

Connector type: Cable gland: M20 X 1.5

Protection Class: II

Enclosure rating: IP65

Housing:  Rectangular

Ambient Operating temperature: -25 … 80°C

Dimensions: 105 x 80 x 40 mm

Material: PPE modified

Mounting: Non-flush mountable

Condition:  New

Weight: 297.5
