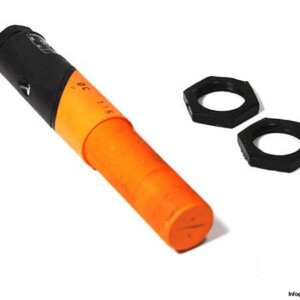

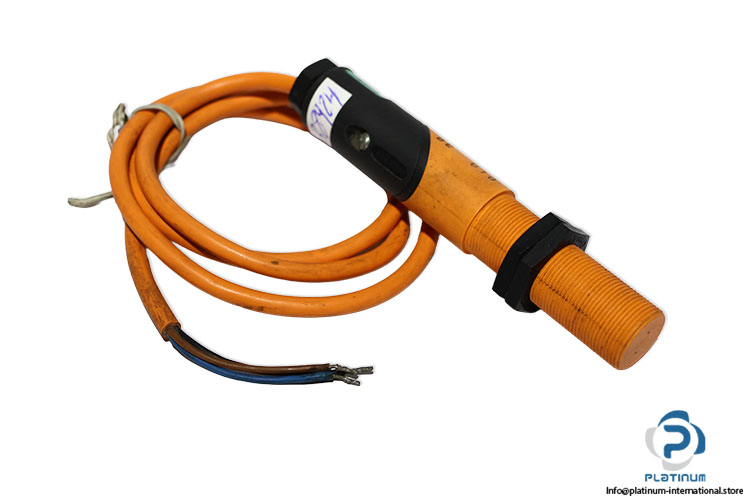

IFM KG5002 Capacitive Sensor
New
In stock1 unitReady to ship
Capacitive Sensor The ifm electronic KG5002 is an industrial inductive sensor with a 8 mm sensing range, PNP normally open output, and IP65 protection for reliable metal detection.
Used
In stock 70,00$
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

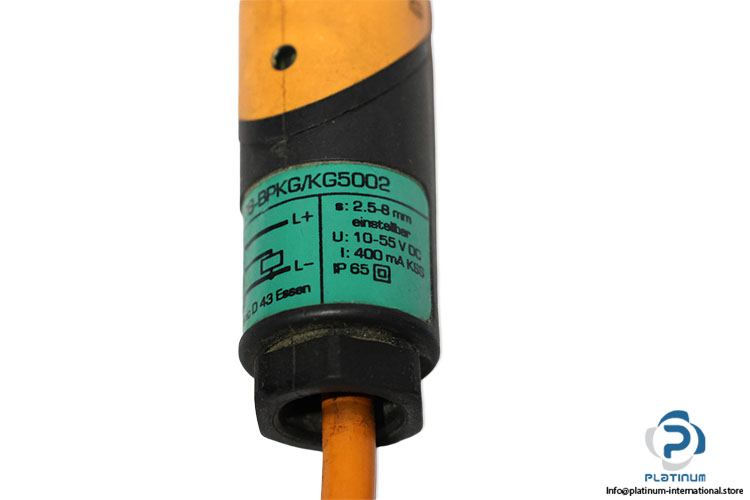

| Part No. | KG5002 |

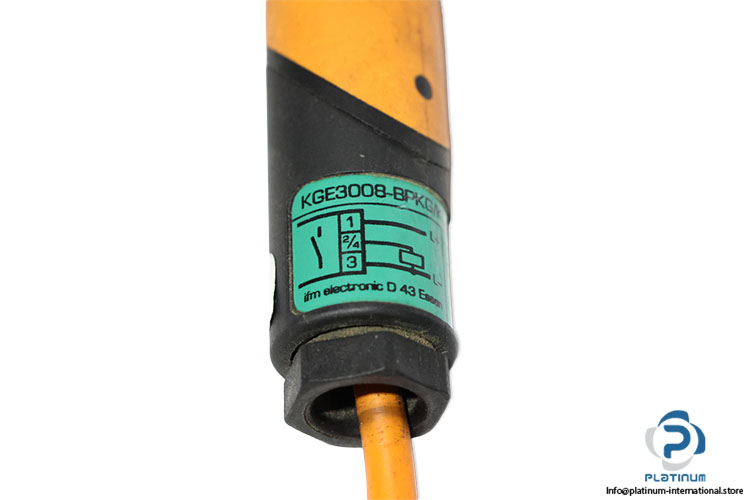

| MRN | KGE3008-BPKG |
| Sensing Range | 2.5 to 8 mm |
| Electrical design | PNP |
| Operating Voltage | 10 … 55 V DC |
| Switching Output Current | 400 mA |
| Output Function | Normally Open |
| Switching frequency | 50 Hz |
| Housing | threaded type |
| Diameter, Housing Length | 18, 110 mm |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 250 |
| Protection Class | IP65 |

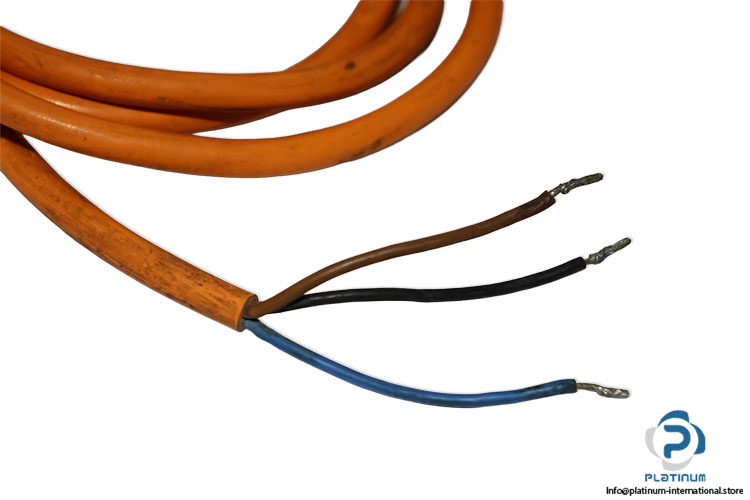

| Electrical connection | Cable,3 wires |
| Ambient temperature | -25 … 80 °C |
| Materials | PBT; PC |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1100689 |
| Weight | 0,07 |
