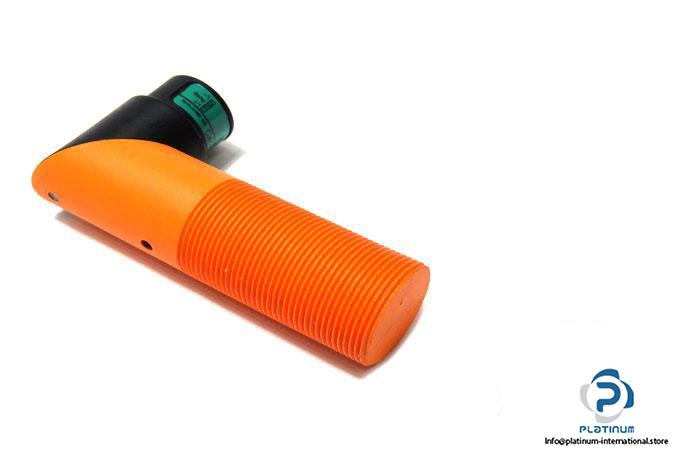

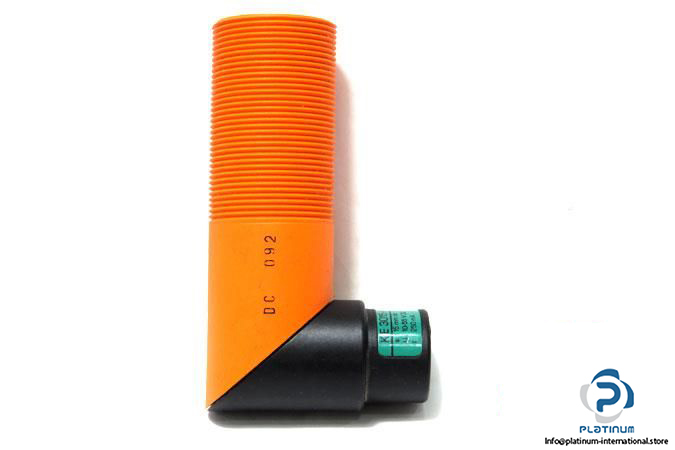

IFM KIE3015-FPKG Capacitive Sensor

Manufacturer: ifm

Type: CAPACITIVE SENSOR

Part No.: KI5023

MRN: KIE3015-FPKG

Sensing Range: 15 mm

Real Sensing Range: 15 ± 10% mm

Operating Distance: 12.1 mm

Operating Voltage: 10 … 55 V DC

Voltage Drop max.: 2.5 V DC

Switching output current: 250 mA DC

Switching frequency: 40 Hz

Electrical Design: PNP

Output Function: Normally open /normally closed

Connector type: Cable gland: M20 X 1.5

Protection Class: II

Enclosure rating: IP65

Housing: Threaded type

Ambient Operating temperature: -25 … 70°C

Diameter, Housing length: 30, 125 mm

Material: PBT

Mounting: Non-flush mountable

Weight: 135 g
