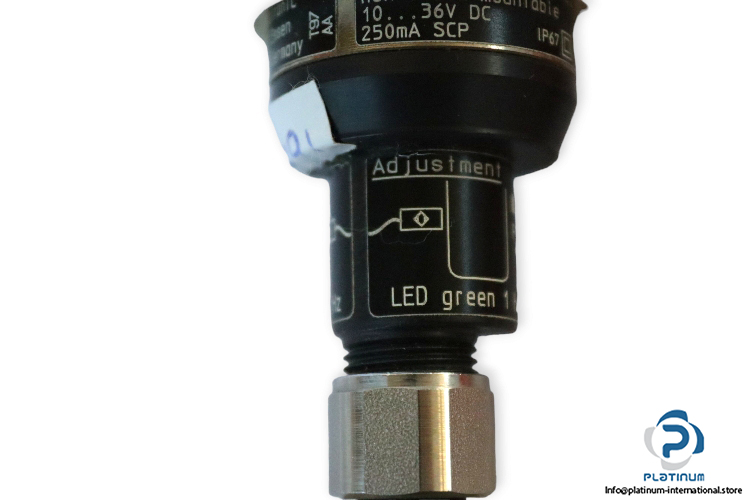

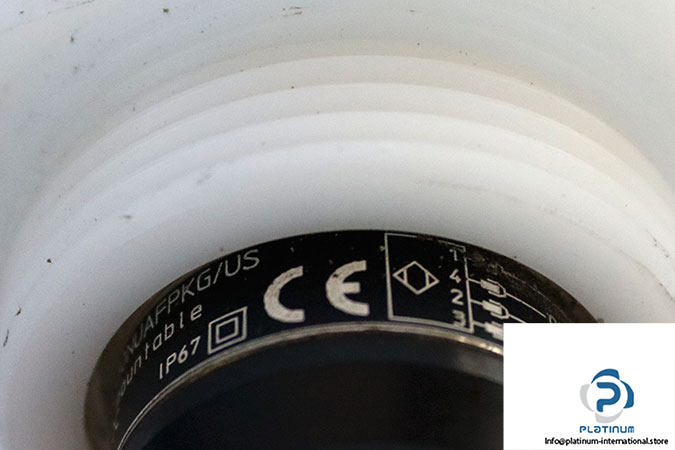

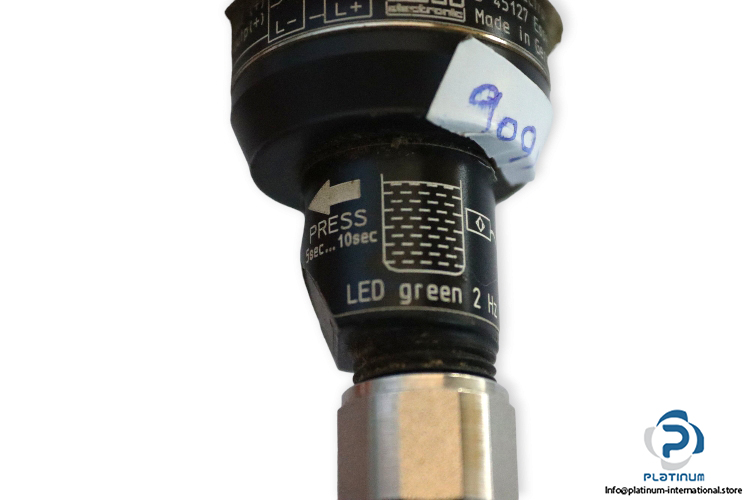

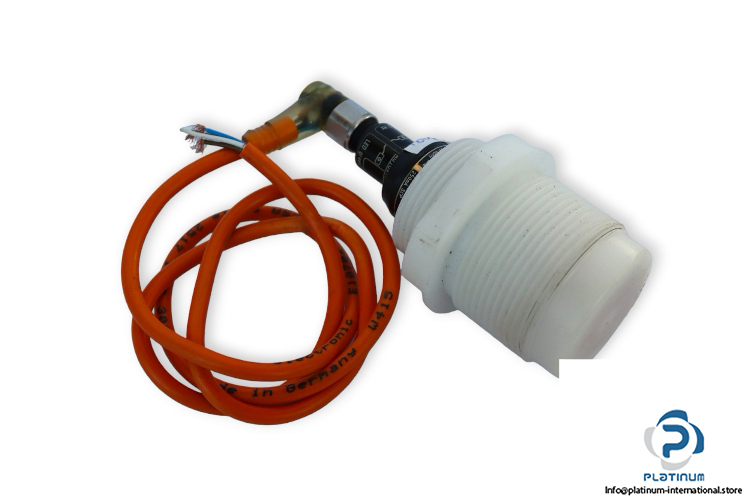

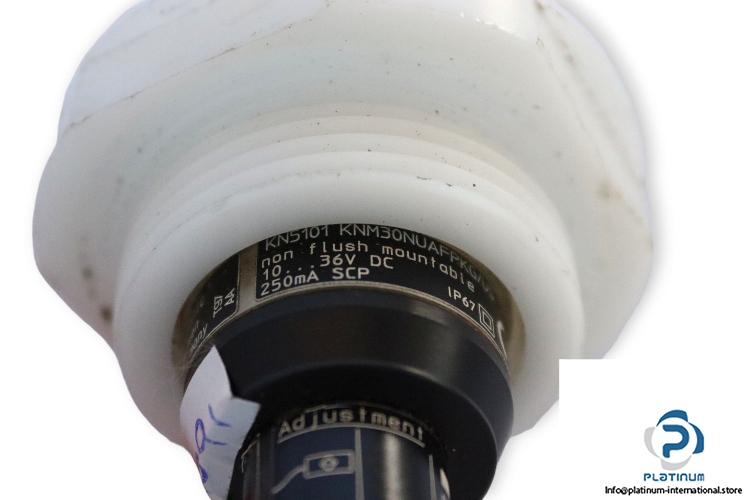

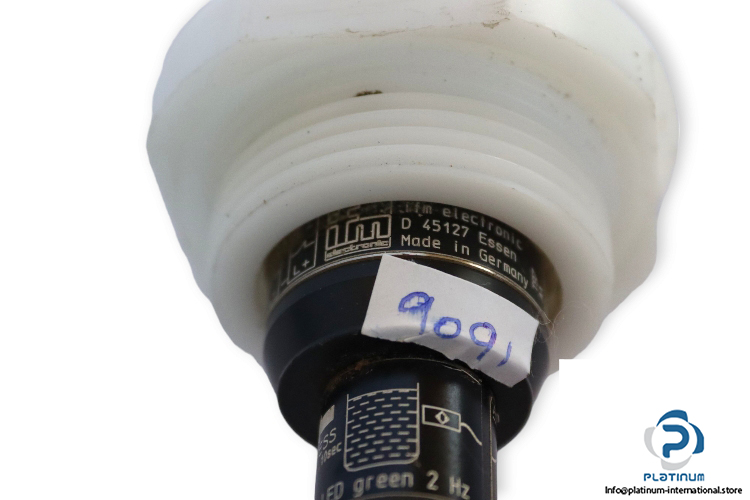

IFM KNM30NUAFPKG/US Capacitive Level Sensor

Manufacturer: IFM
Type: Capacitive Level Sensor
Model: KNM30NUAFPKG/US
Part No.: KN5101

Used for: Dry Bulk Material and Liquids (Detection Non-Metallic Vessel Wall)
Sensing Range: 30 mm
Rated Supply Voltage (Us): 10 … 36 V DC
Rated Current: 250 mA
Contact: PNP 1 Normally Open (NO) / Normally Closed (CO) Programmable
Electrical Connection: Plug-In and Socket, M12 Connector, Gold-Plated Contact
Thread Type: Metal Thread M30 x 1.5
Cable Material: LifYY, PVC
Housing Material: Brass White Bronze Coated, PBT, PVC
Sensor Length: 100 mm
Protection Class: IP67
Ambient Temperature: -25 … 80 °C
