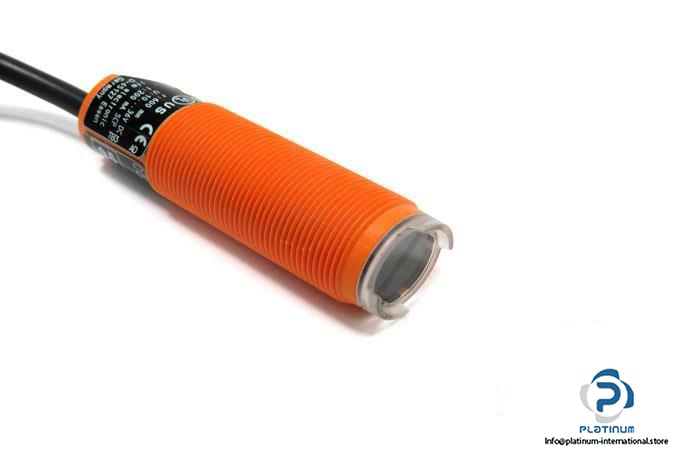

IFM OG5049 Photoelectric Diffuse Reflection Sensor

Manufacturer: ifm

Type: PHOTOELECTRIC DIFFUSE REFLECTION SENSOR

Part No.: OG5049

MRN: OGT-FPKG

Sensing Range: 1 … 600 mm

Operating Voltage: 10 … 36 V DC

Switching output current: mA DC

Current Consumption max.: 30 mA

Switching frequency:  500 Hz

Electrical design: PNP

Output Function: Light-on/dark-on mode

Type of light: Infrared light

Wave length: 880 nm

Light spot diameter max.: 169 mm

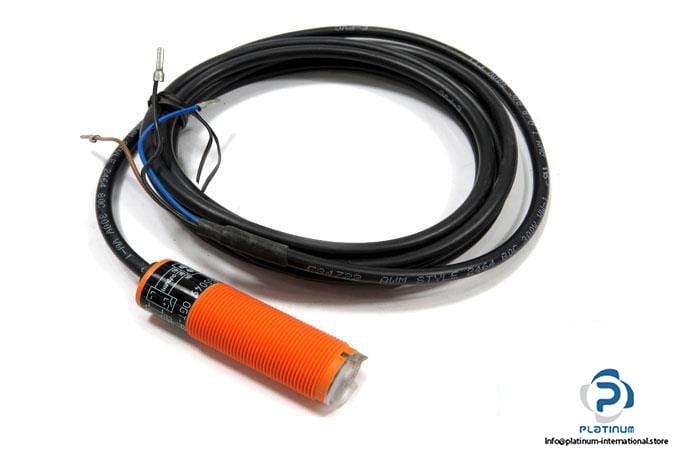

Connector type, length: PVC Cable, 2 m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80 °C

Diameter, Housing length: 18, 64.5 mm

Material: PBT

Lens material: PMMA

Weight: 169 g

Condition: New
